Fuel Lid Lock Control: Components

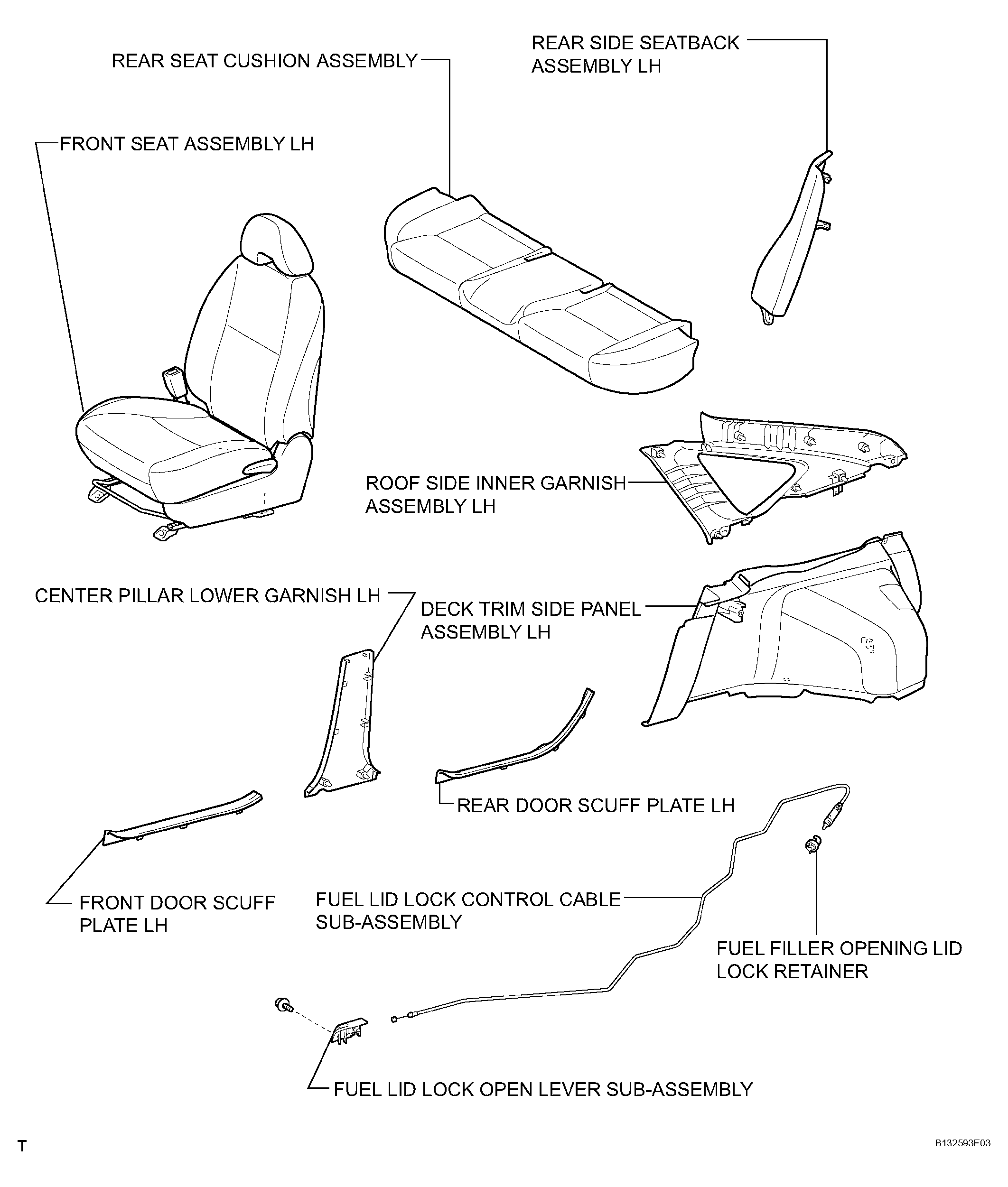

Fig 1: Identifying Fuel Lid Lock Control Components
G04477260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
