Inspection Procedure

  1. READ VALUE OF INTELLIGENT TESTER (DOOR CONTROL SWITCH)
    1. Check the DATA LIST for proper functioning of the door control switch.

      Main body ECU

      MAIN BODY ECU DATA LIST

      Item Measurement Item / Display (Range) Normal Condition Diagnostic Note
      D/L SW-LOCK Door control switch lock signal/ON or OFF ON: Door control switch is in LOCK position
      OFF: Door control switch is not in LOCK position
      -
      SW-UNLOCK Door control switch unlock signal / ON or OFF ON: Door control switch is in UNLOCK position
      OFF: Door control switch is not in UNLOCK position
      -

      OK : ON (door is locked/unlocked) appears on the screen.

    OK : REPLACE DRIVER SIDE JUNCTION BLOCK

    NG : GO TO NEXT STEP

  2. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (DOOR CONTROL SWITCH)
    1. Measure the resistance of the door control switch.

      Standard resistance

      TESTER CONNECTION SWITCH CONDITION

      Tester Connection Switch Condition Specified Condition
      1 - 5 Lock Below 1 Ω
      1 - 8 Unlock
      1 - 5 OFF 10 kΩ or higher
      1 - 8

    NG : REPLACE POWER WINDOW REGULATOR MASTER SWITCH

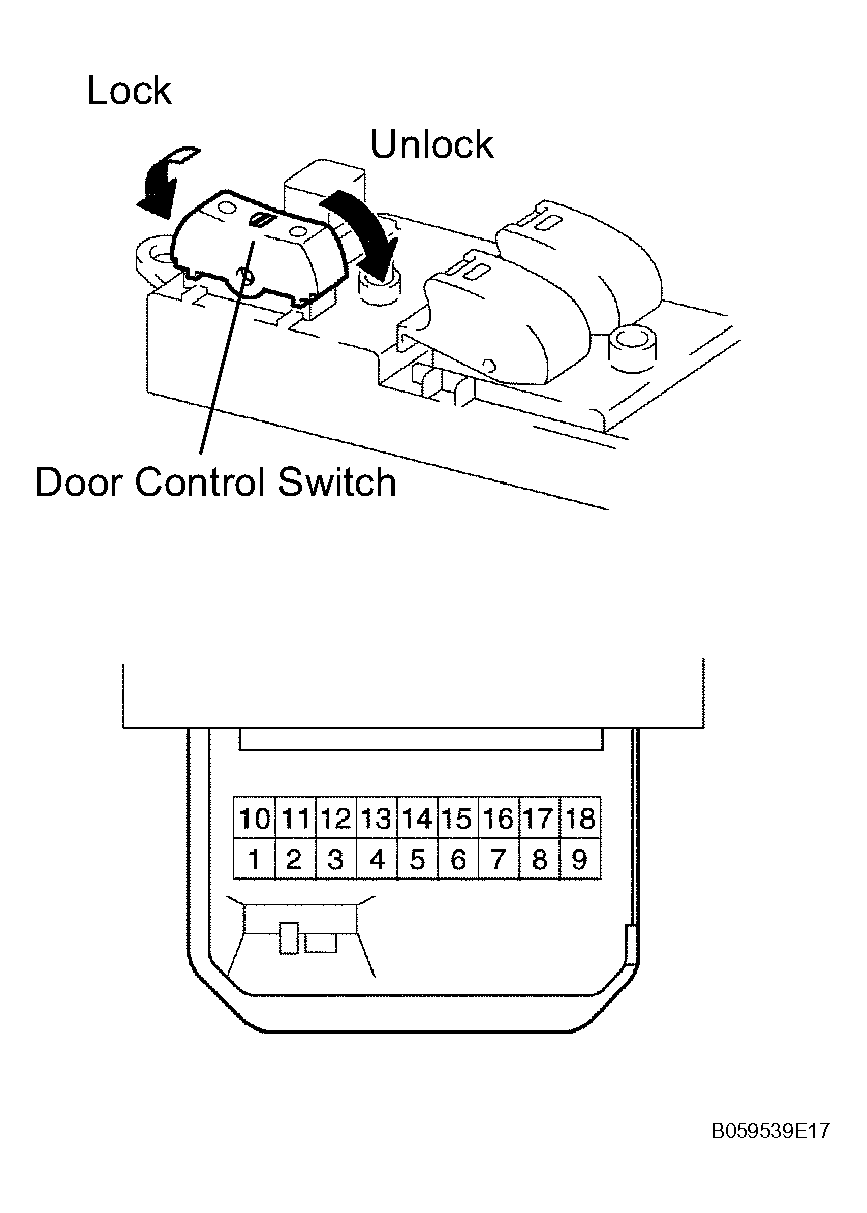

    Fig 1: Identifying Door Control Switch Connector Terminals
    G04475991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CHECK WIRE HARNESS (MASTER SWITCH - DRIVER SIDE JUNCTION BLOCK AND BODY GROUND)
    1. Disconnect the P17 switch connector.
    2. Disconnect the 1H junction block connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SWITCH CONDITION

      Tester Connection Specified Condition
      17-5 (L) - 1H-4 (L1) Below 1 Ω
      P17-8 (UL) - 1H-5 (UL1)
      P17-1 (E) - Body ground

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

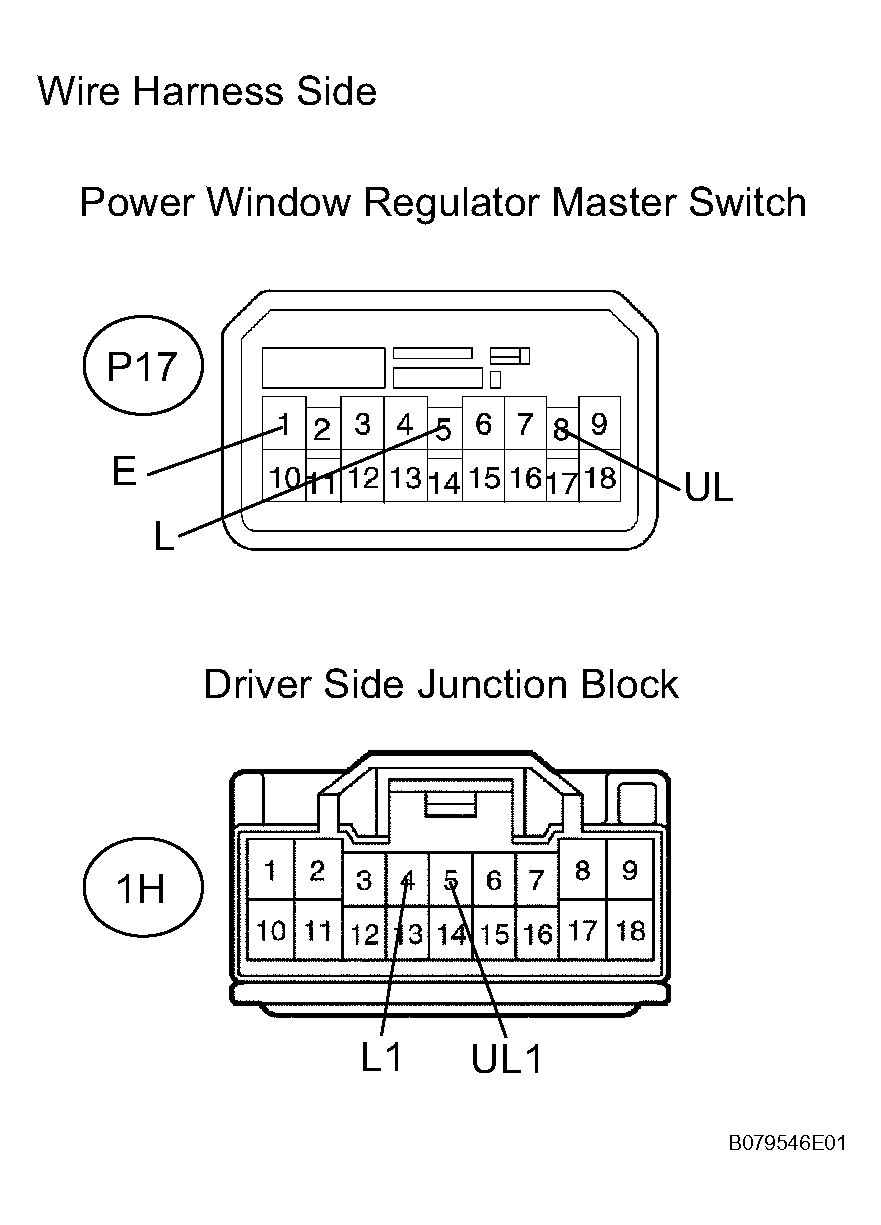

    Fig 2: Identifying 1H Junction Block Connector Terminals
    G04475992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : REPLACE DRIVER SIDE JUNCTION BLOCK
