Only Wireless Control Function Is Inoperative

Only Wireless Control Function is Inoperative

DESCRIPTION

The door control receiver receives a signal from the transmitter and sends this signal to the integration relay. Then, the integration relay controls door operation by sending a door LOCK/UNLOCK signal to each door lock motor.

Wiring Diagram:

Step 1:

Step 1(continued)-5:

Step 5(continued)-6:

Step 6(continued)-7:

Step 8-10:

Step 11-12:

Step 13-15:

Step 16:

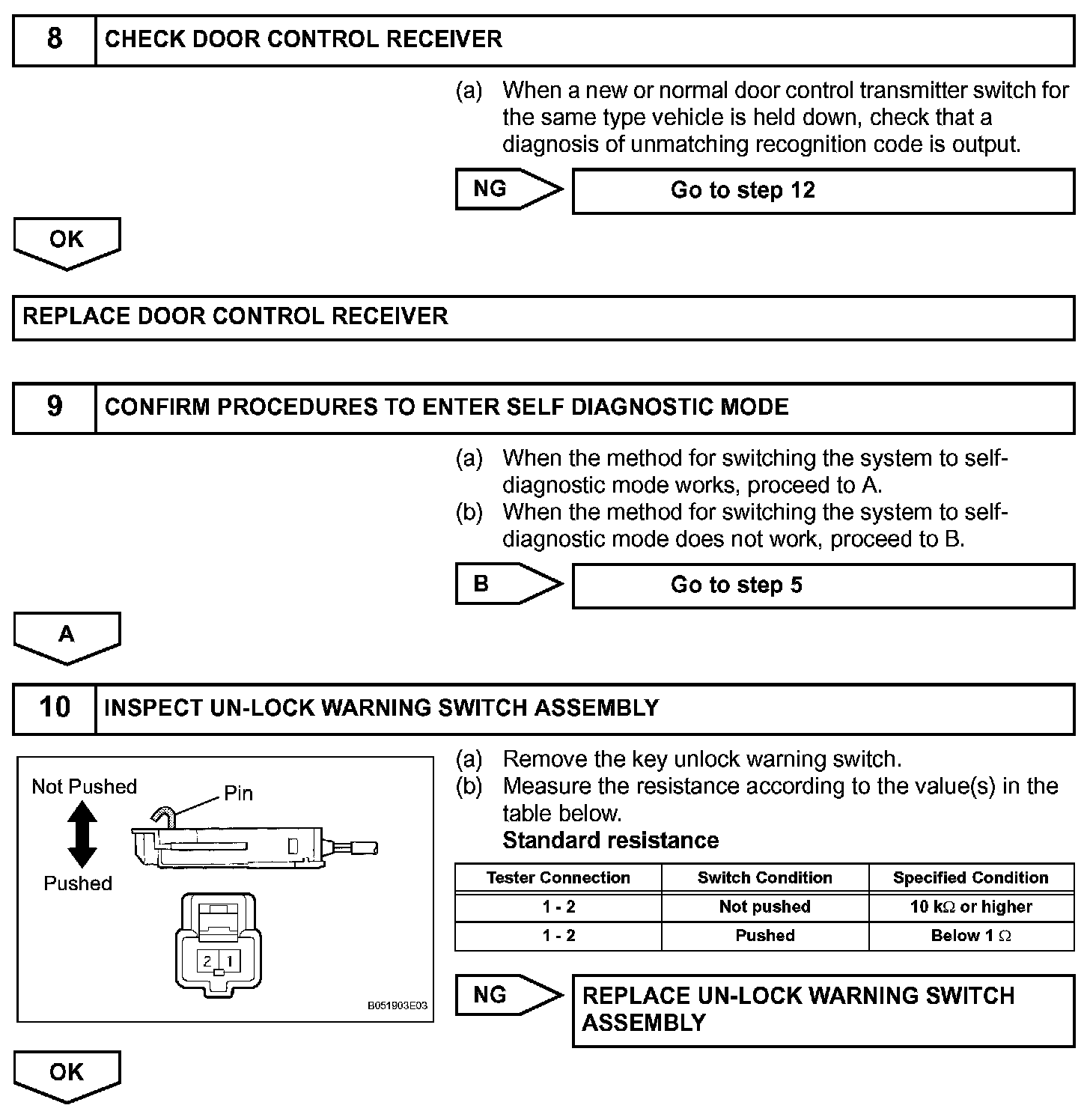

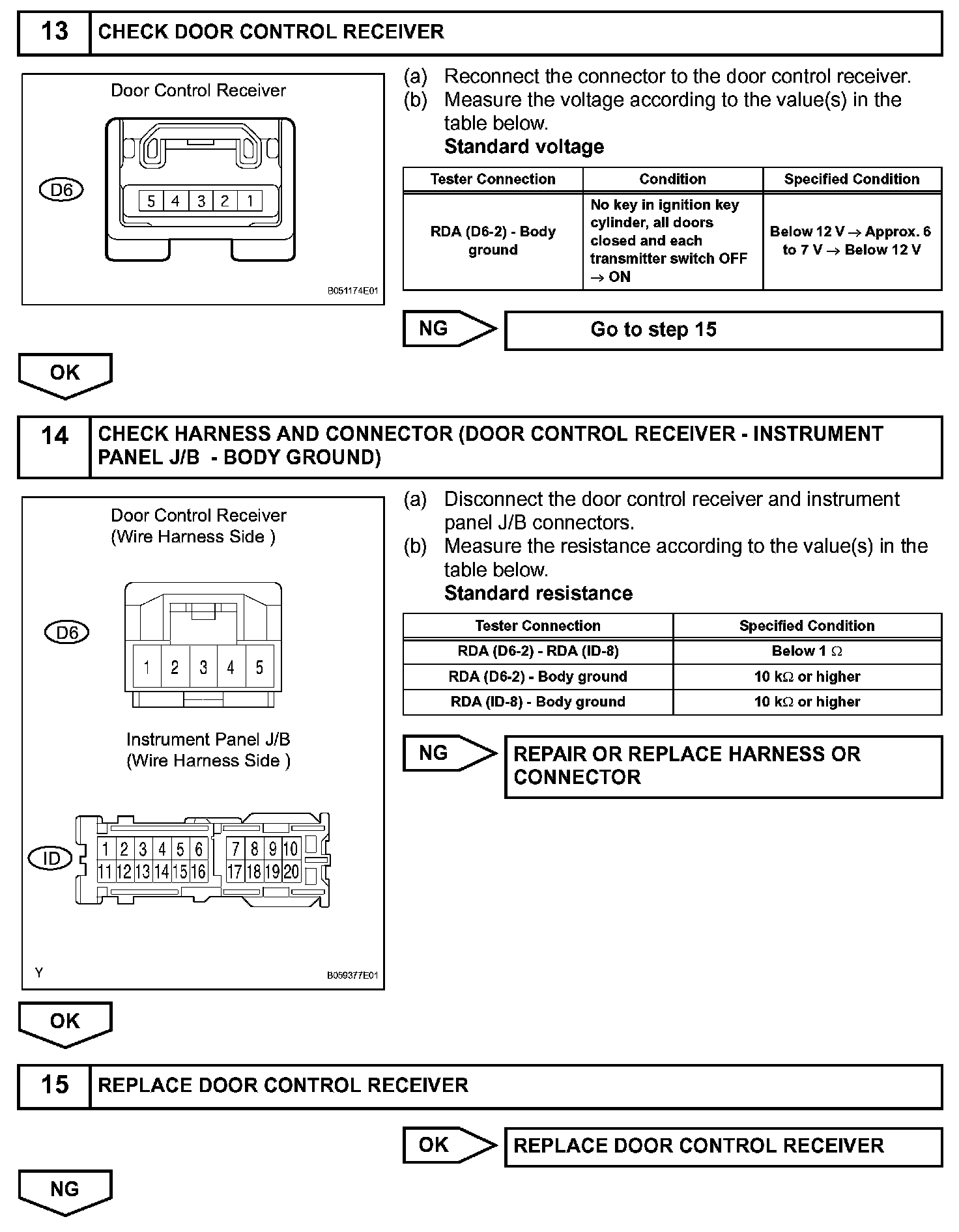

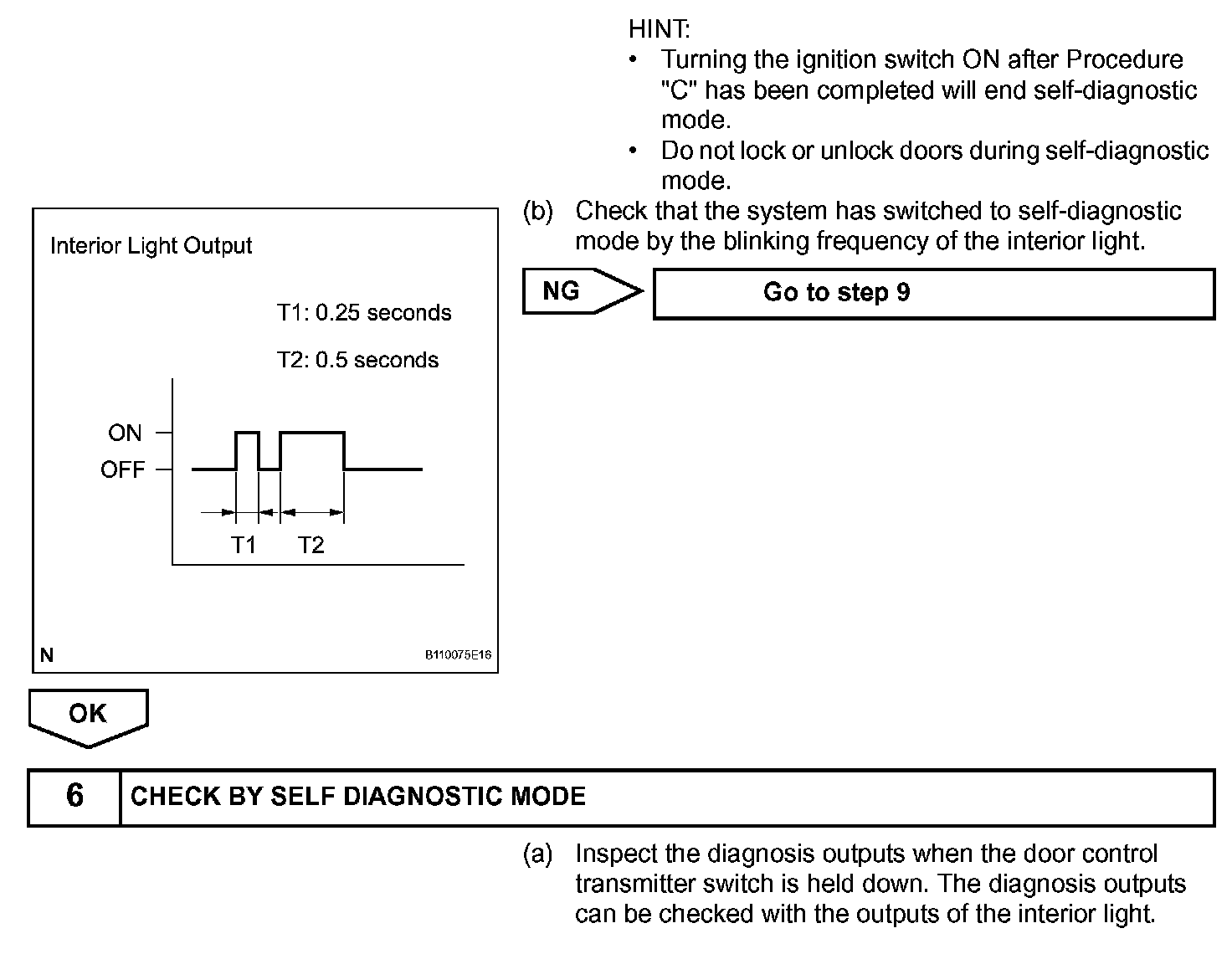

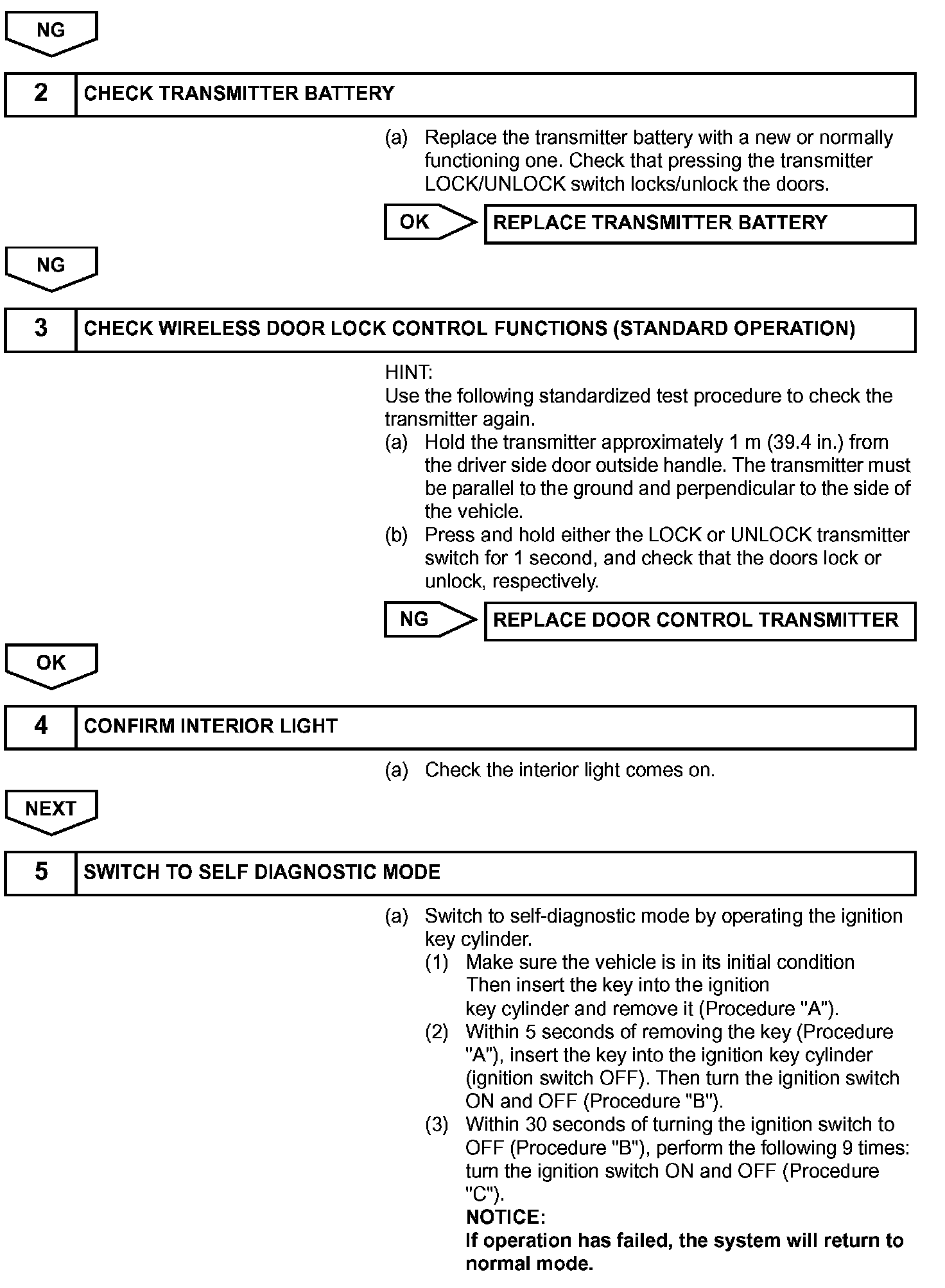

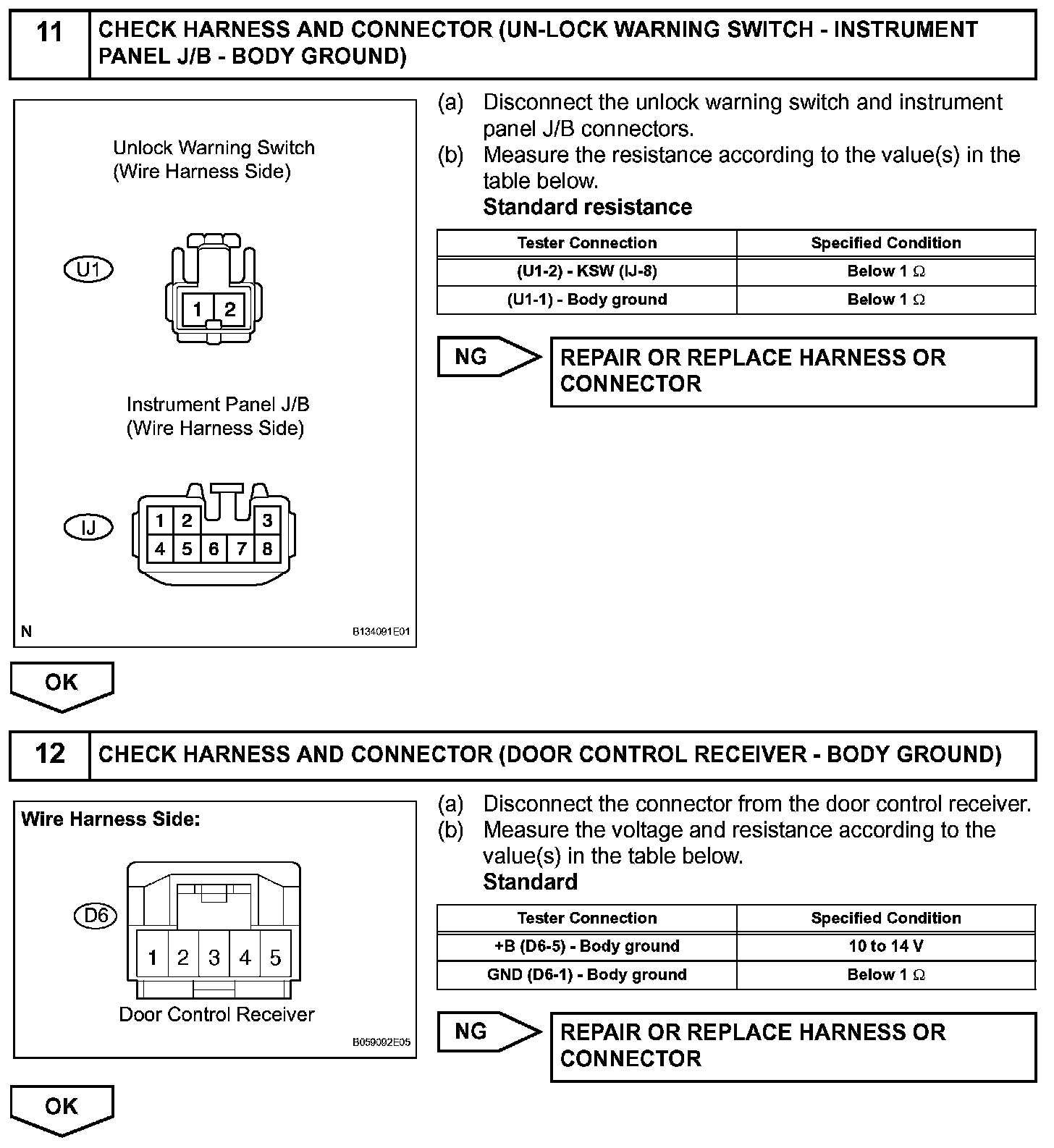

INSPECTION PROCEDURE

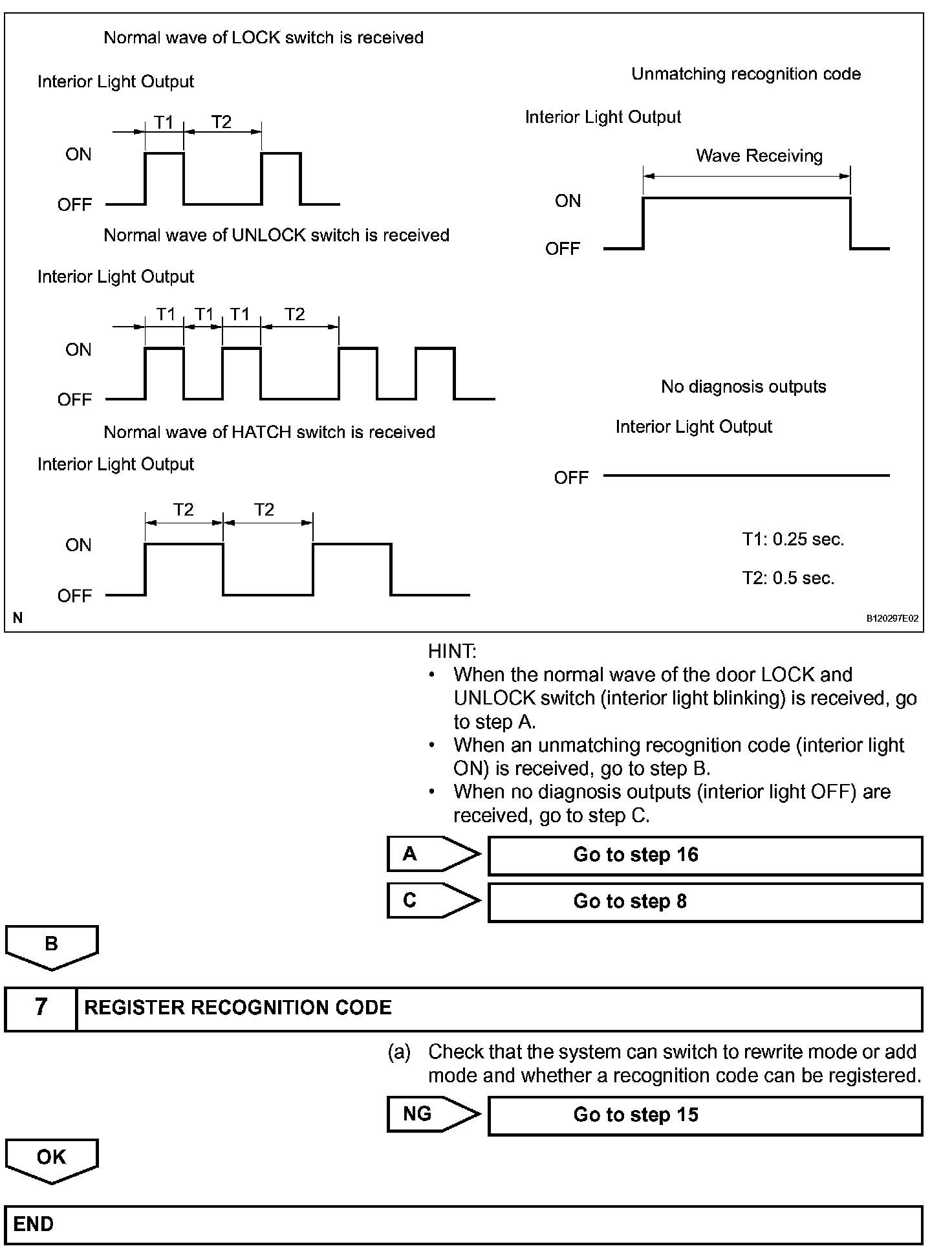

HINT: The switch described below transmits signals and is built into the door control transmitter.
