Spiral Cable: Components

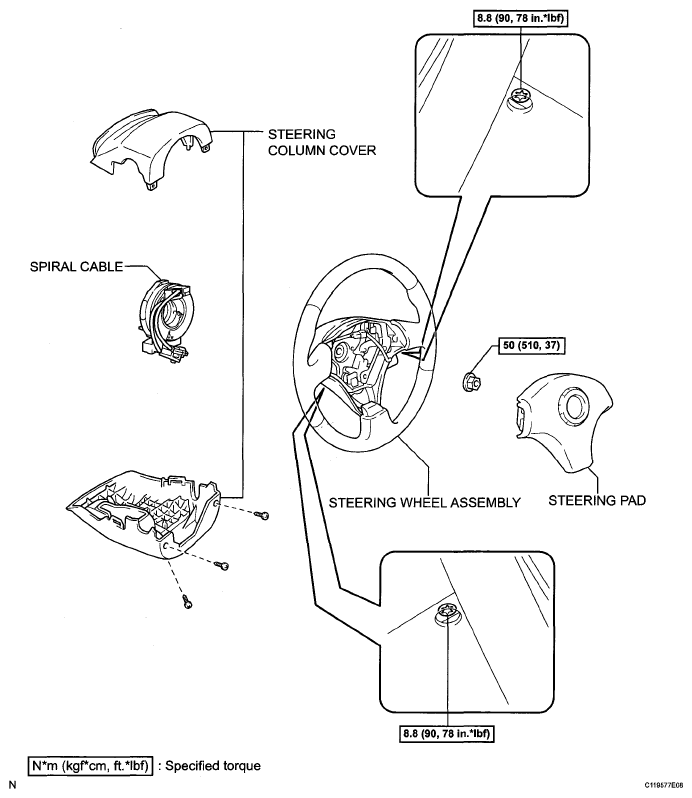

Fig 1: Spiral Cable Replacement Components With Torque Specifications
G05236583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
