Name Plate: Components

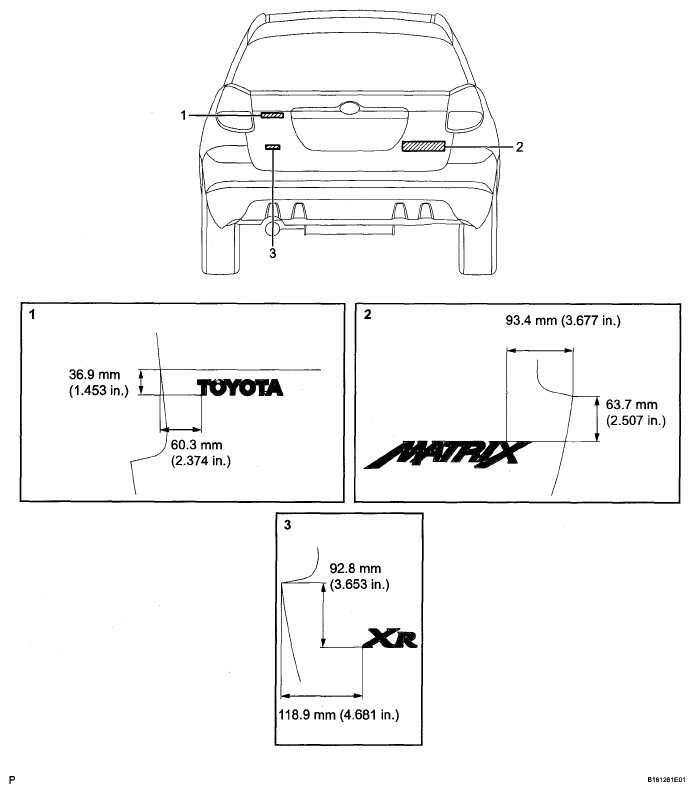

Fig 1: Identifying Name Plate Components

G05237436

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
