Front Bumper: Components

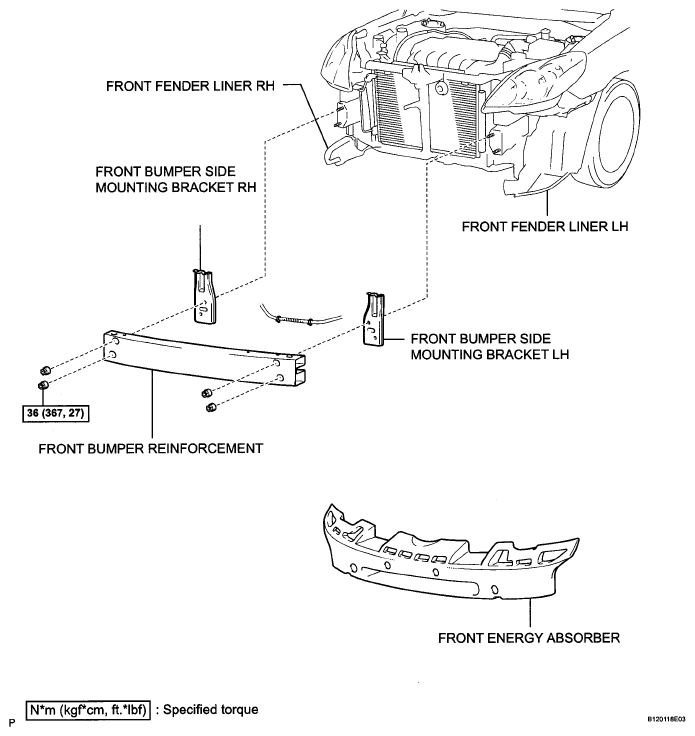

Fig 1: Front Bumper Replacement Components With Torque Specifications (1 Of 2)
G05237427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

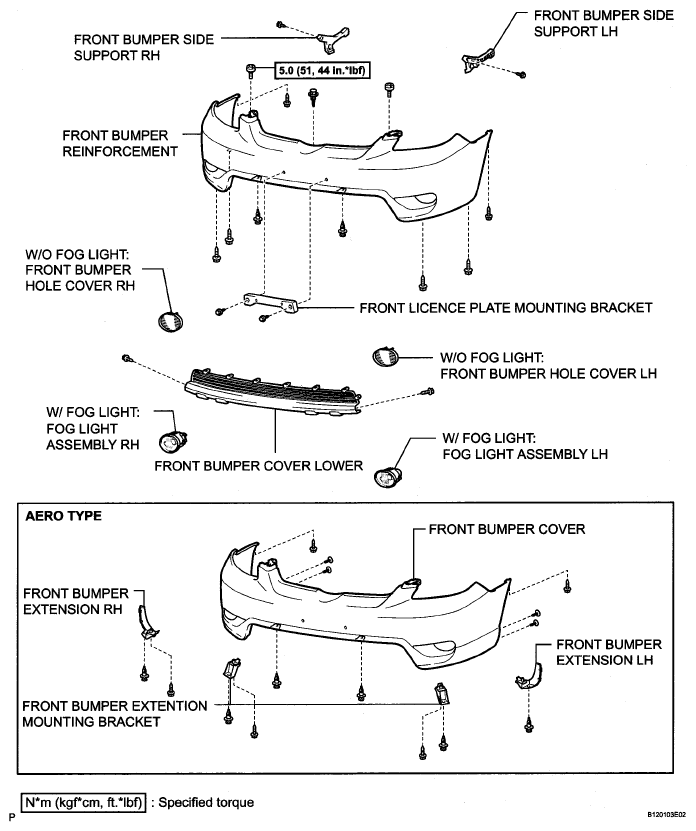

Fig 2: Front Bumper Replacement Components With Torque Specifications (2 Of 2)
G05237428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
