Differential Case: Components

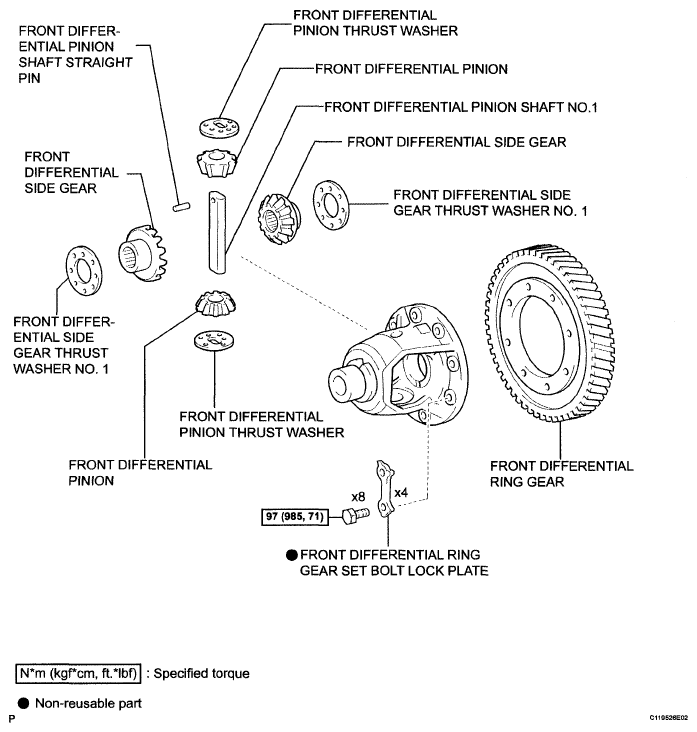

Fig 1: Exploded View Of Differential Case Components With Torque Specification
G05234481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
