Parts Location

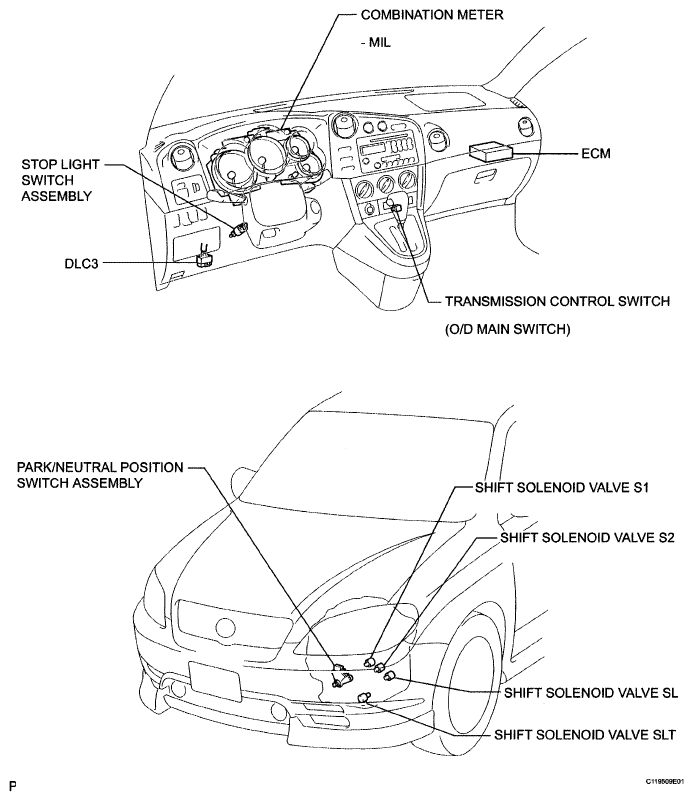

Fig 1: Identifying Automatic Transaxle System Components Location
G05233866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
