System Diagram

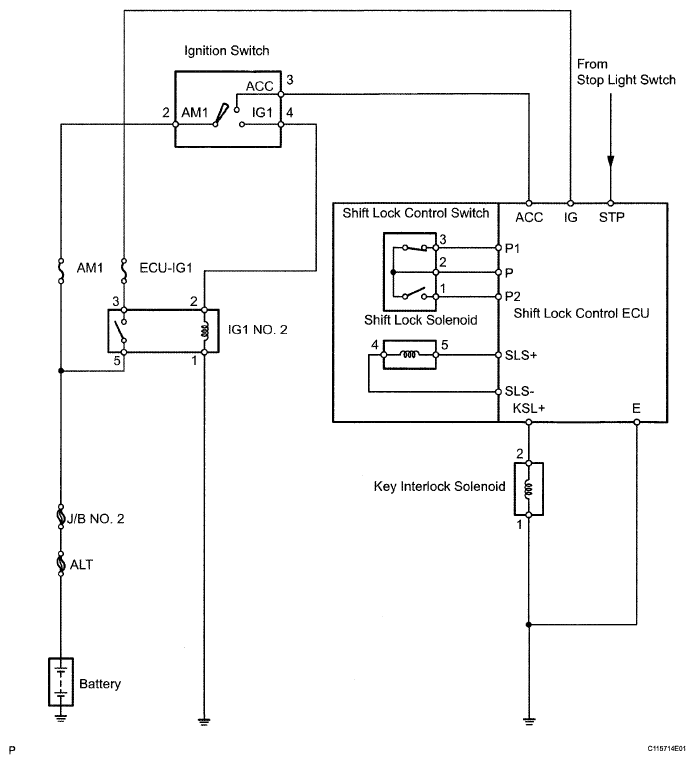

Fig 1: Shift Lock System Diagram
G05197121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
