Air Pump: Reassembly

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL AIR SWITCHING VALVE
    1. Install the No. 1 air hose to the air switching valve and air pump.
    2. Install the air switching valve to the air pump bracket with the 2 bolts.

      Torque: 16 Nm (163 kgf cm, 12 ft. lbf)

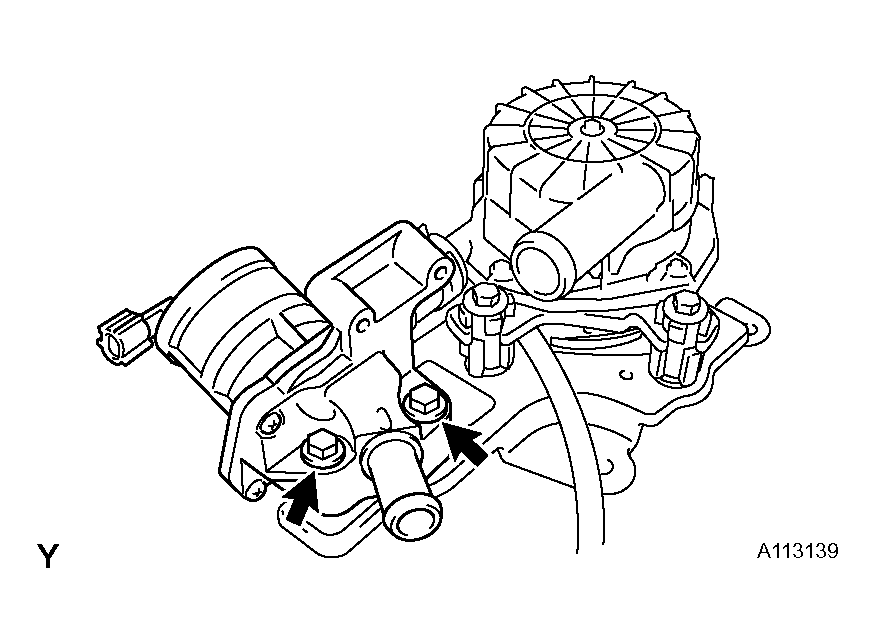

      Fig 1: Installing Air Switching Valve To Air Pump Bracket With Bolts
      G04436126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL PRESSURE SENSOR
    1. Install the pressure sensor to the air switching valve with the 2 bolts.

      Torque: 5.0 Nm (55 kgf cm, 48 in. lbf)

    2. Install the vacuum hose to the pressure sensor and air switching valve.
      Fig 2: Installing Pressure Sensor To Air Switching Valve With Bolts
      G04436127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
