Power Rear Quarter Window: Notes

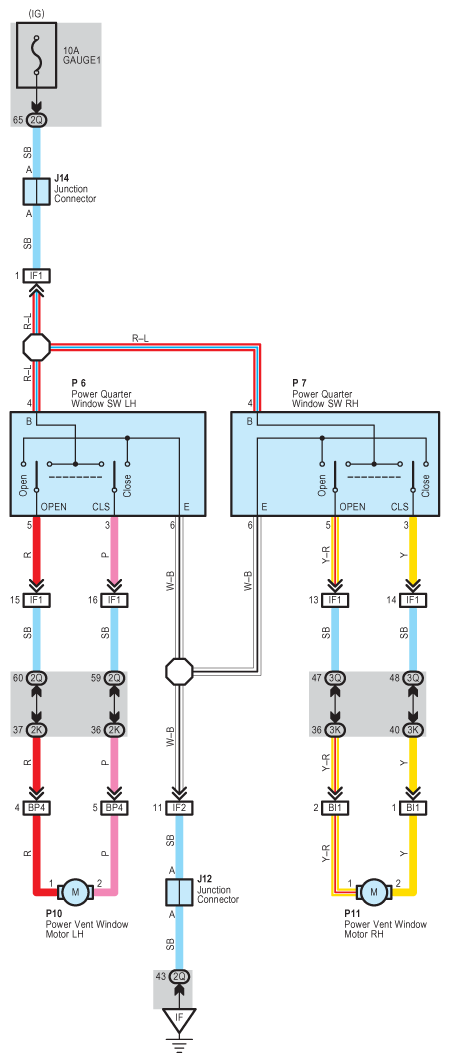

Fig 1: Power Rear Quarter Window System Wiring Diagram
G08783463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
