Multiplex Communication System - AVC-LAN: Notes

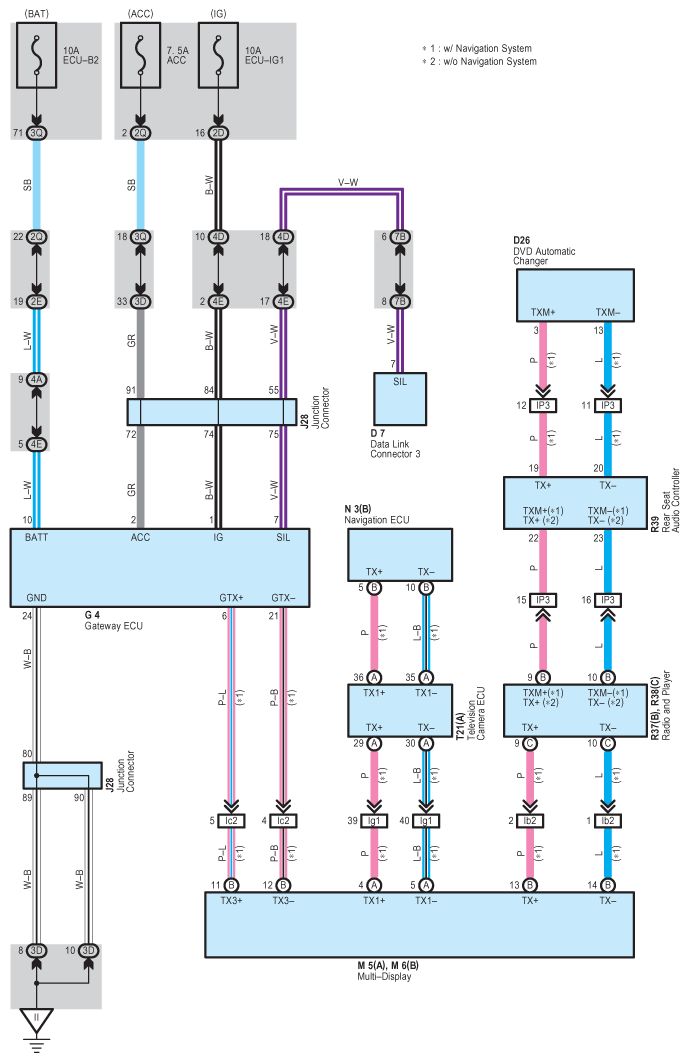

Fig 1: Multiplex Communication System (AVC-LAN) Wiring Diagram
G08783392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
