VVT Sensor: Components

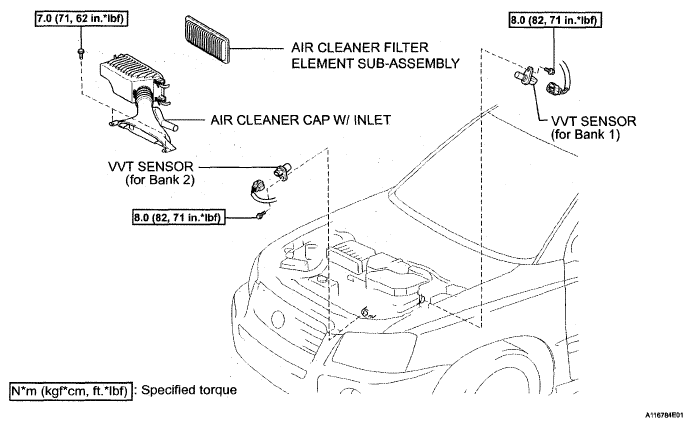

Fig 1: VVT Sensor Replacement Components With Torque Specifications
G05201133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
