Input Shaft: Components

WARNING: This page is about a different variant/trim than selected.

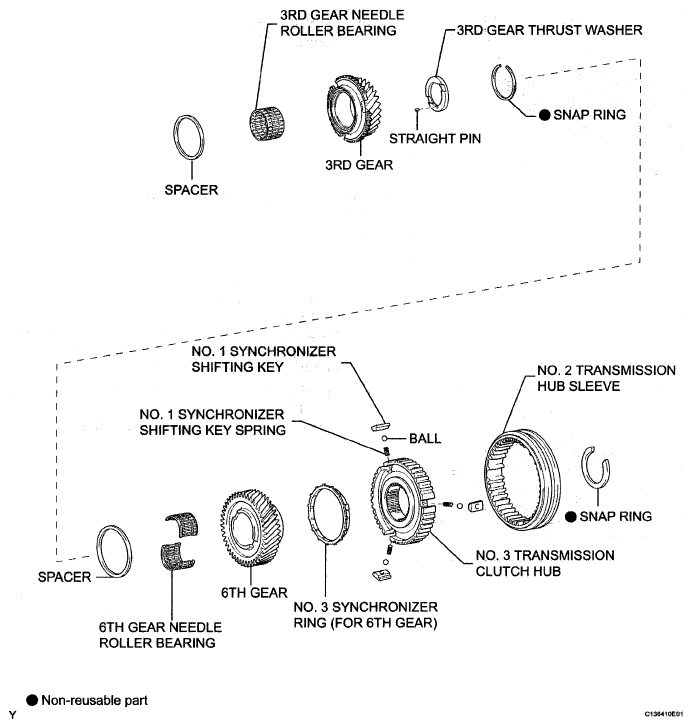

Fig 1: Identifying Input Shaft Components (1 Of 2)
G05111275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

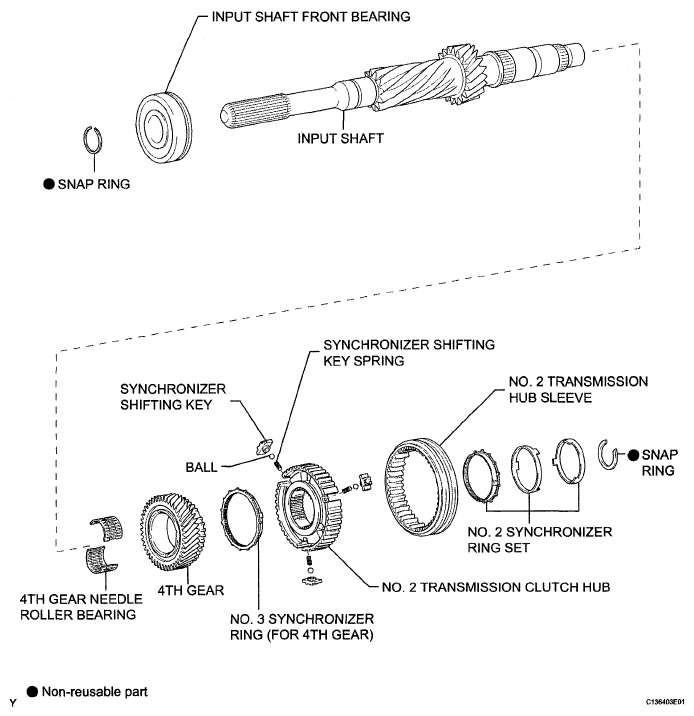

Fig 2: Identifying Input Shaft Components (2 Of 2)
G05111276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
