Clock ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.

  1. REMOVE FRONT ASH RECEPTACLE ASSY
  2. REMOVE CONSOLE PANEL UPPER  (SEE REPLACEMENT )
  3. REMOVE HEATER CONTROL KNOB
  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL  (SEE REPLACEMENT )
  5. REMOVE CLOCK ASSY

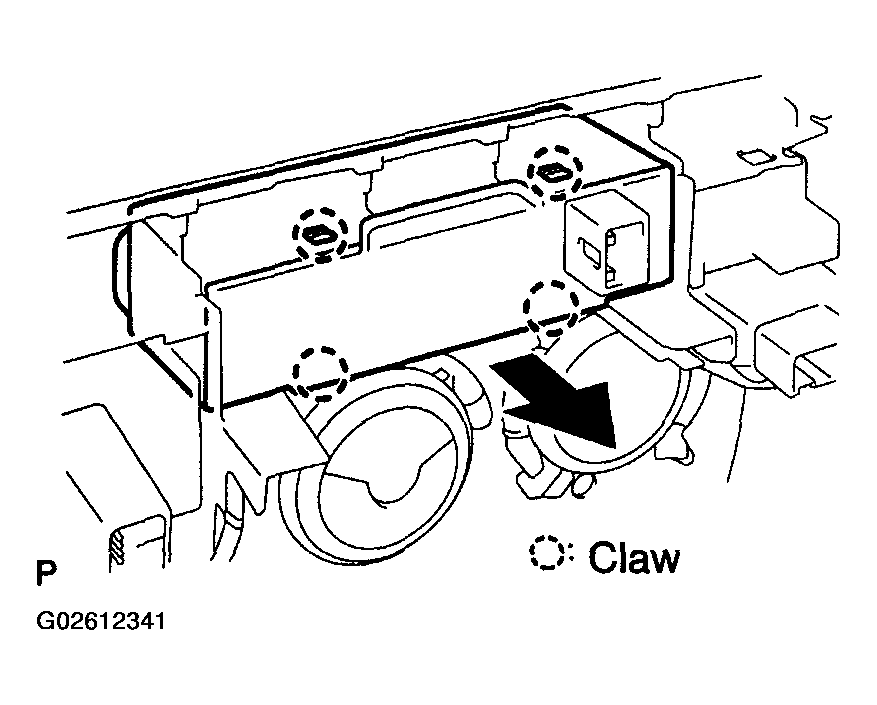

    1. Using a screwdriver, disengage the 4 claws, remove the clock as shown in the illustration.

    HINT:

    Tape the screwdriver tip before use.

    Fig 1: Removing Clock Assembly
    G02612341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
