ECM Power Source Circuit: Wiring Diagram

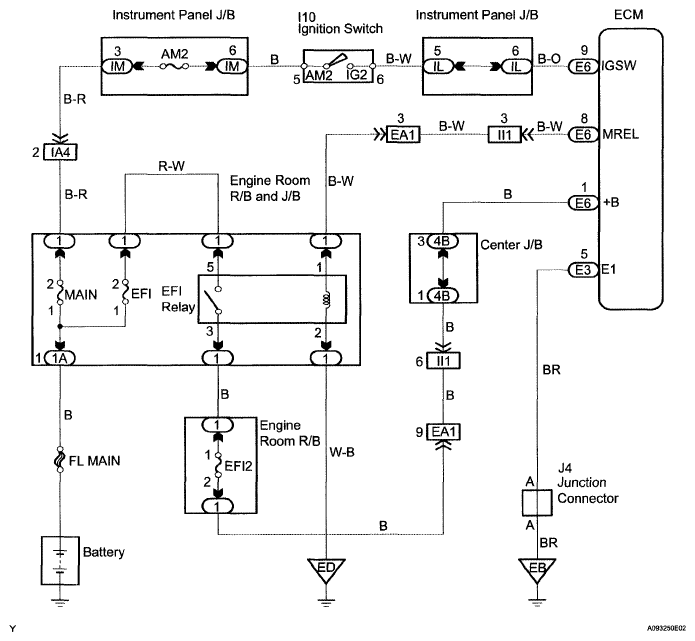

Fig 1: ECM Power Source - Wiring Diagram
G05192670Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
