Inspection Procedure
WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK DOOR LOCK (See INSPECTION
)
- NG: REPLACE DOOR LOCK
- OK: GO TO NEXT STEP

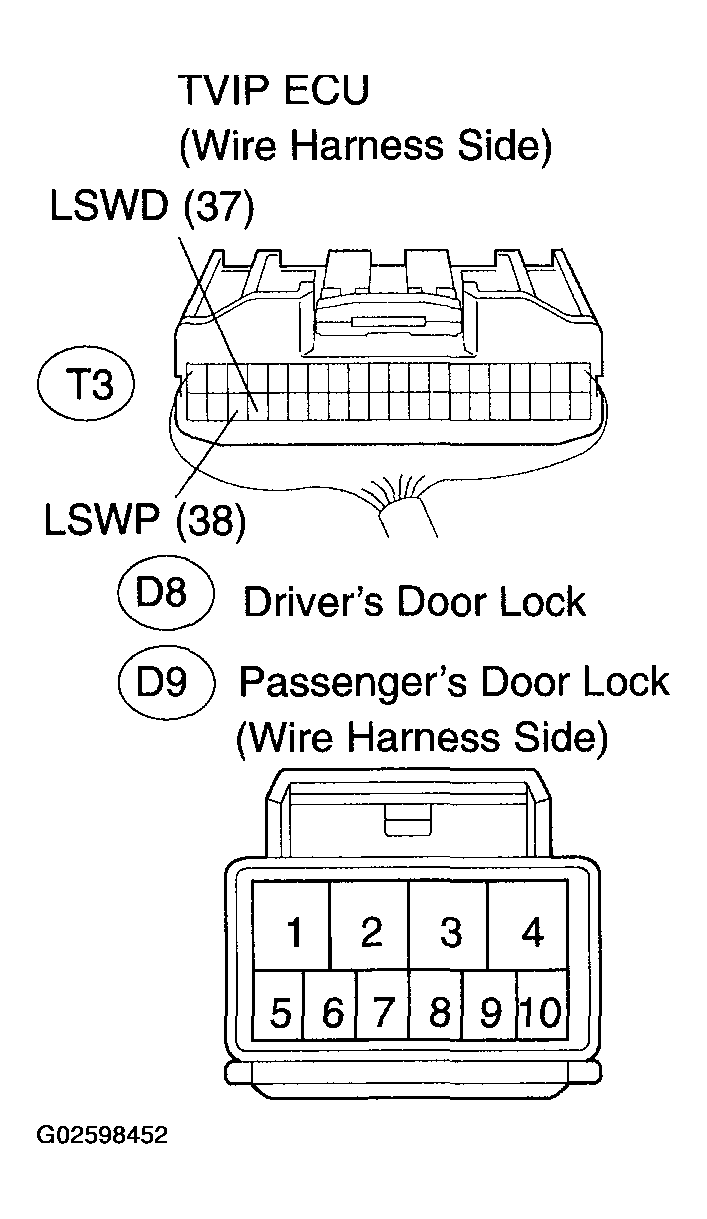

- CHECK WIRE HARNESS (TVIP ECU - DOOR LOCK)
- Disconnect the TVIP ECU and door lock connectors.
- Check the resistance between the terminals of the TVIP ECU and door lock connectors, as shown in the illustration and table.
Standard:
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition LSWD (T3-37) - D8-8 Below 1 Ω LSWP (T3-38) - D9-7 Below 1 Ω - NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
- OK: GO TO NEXT STEP
- CHECK WIRE HARNESS (DOOR LOCK - BODY GROUND)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the door lock connectors.
- Check the resistance between each terminal of each door lock connector and the body ground, as shown in the illustration and table.
Standard:
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition D9-8 - Body ground Below 1 Ω D8-7-Body ground Below 1 Ω - NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
- OK: GO TO NEXT STEP
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
