Seats

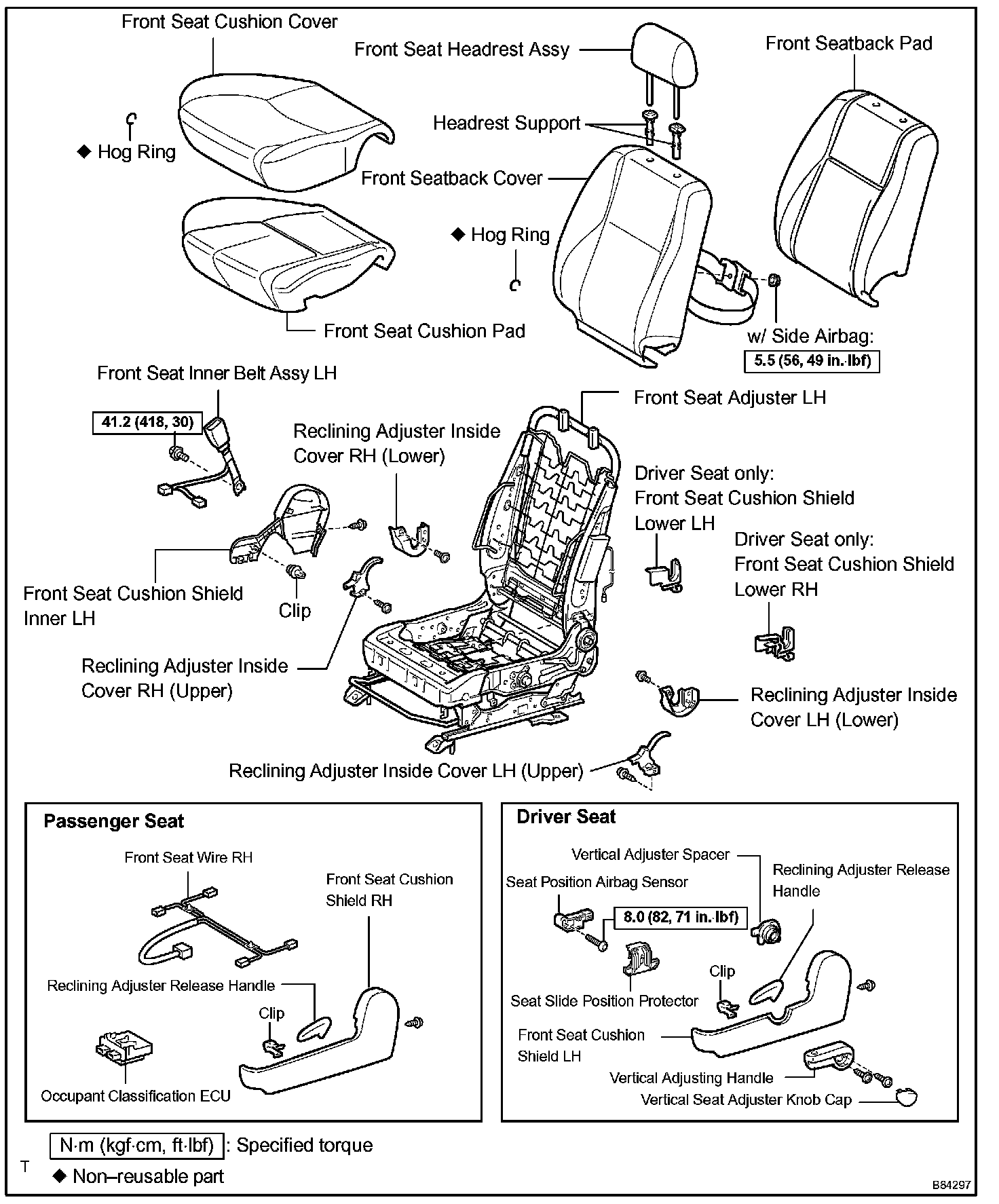

Front Seat:



Front Seat:

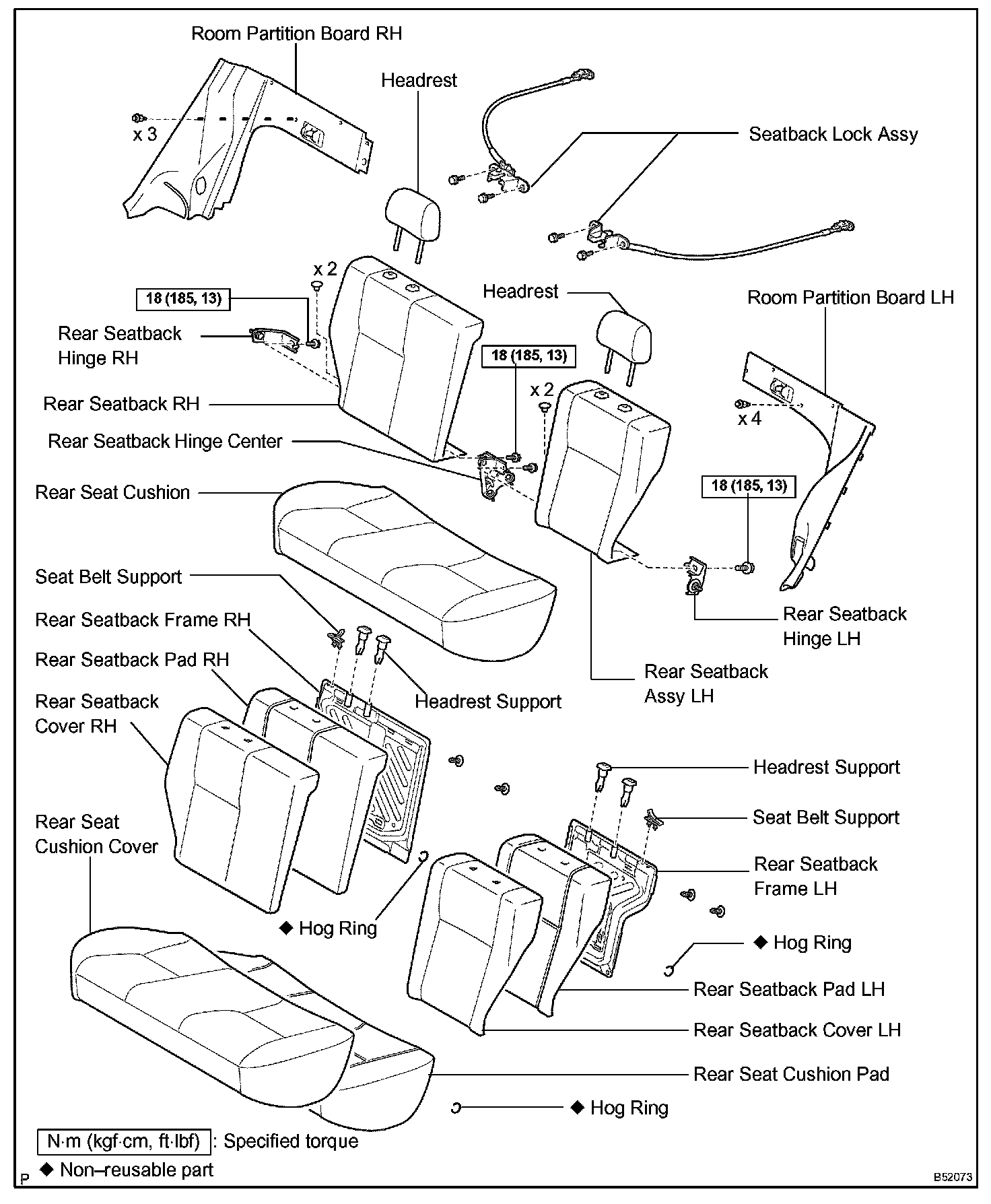

Rear Seat (Sedan With Separate Type):

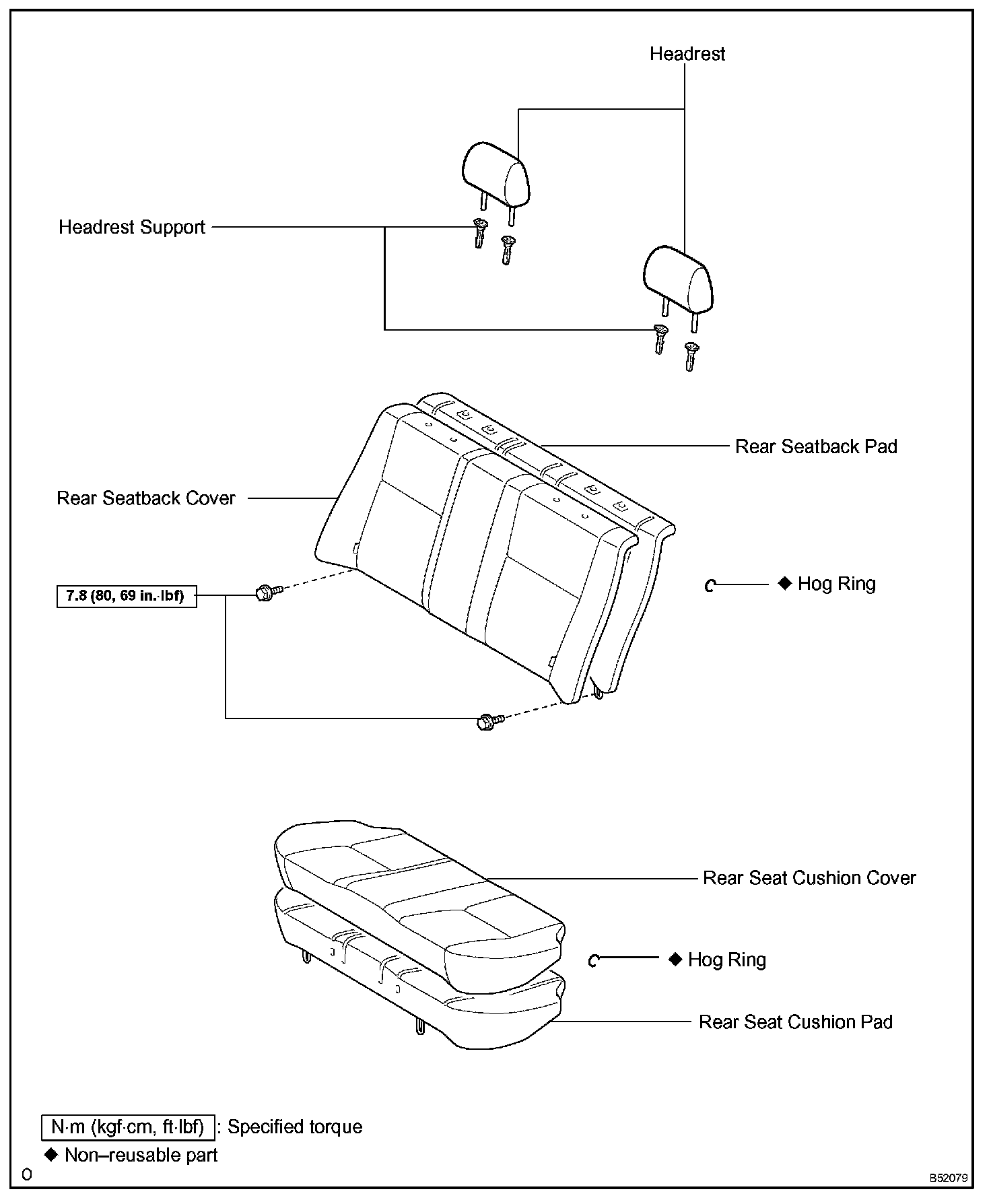

Rear Seat (Sedan With Bench Type):

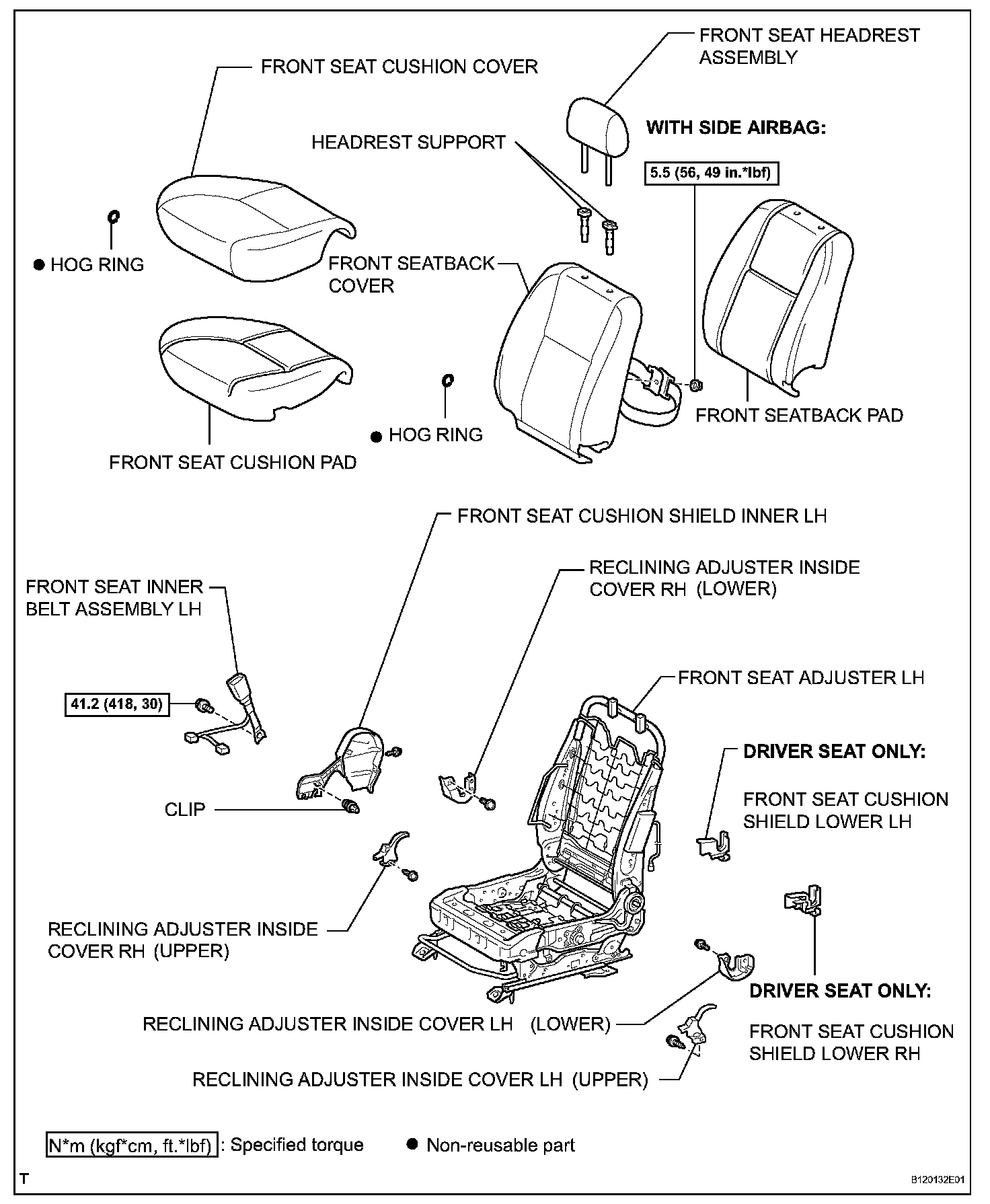

Front Seat Assembly (For LH Side):

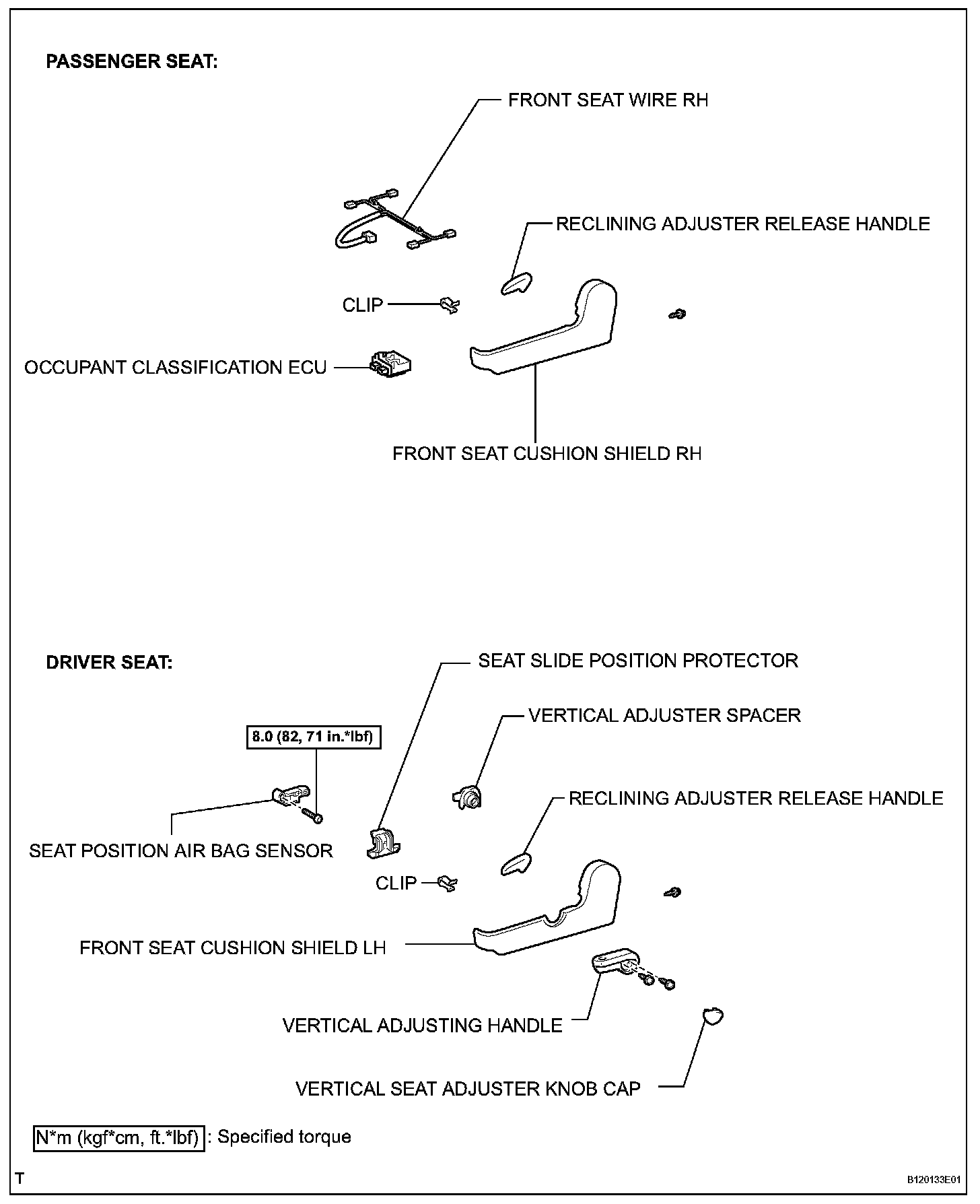

Front Seat Assembly (For LH Side):



Front Seat Assembly (For LH Side):

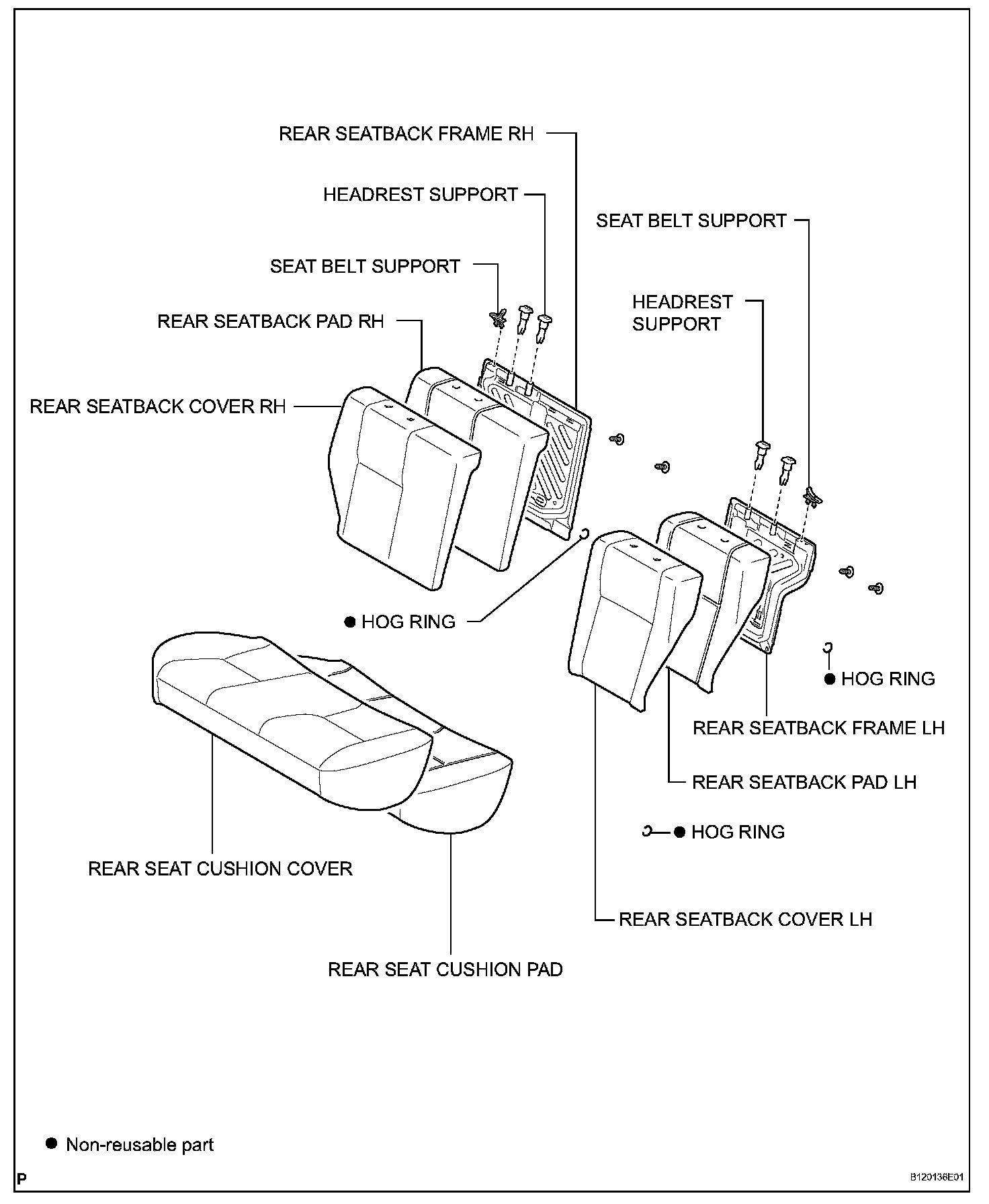

Rear Seat Assembly (For Separate Seat Type):

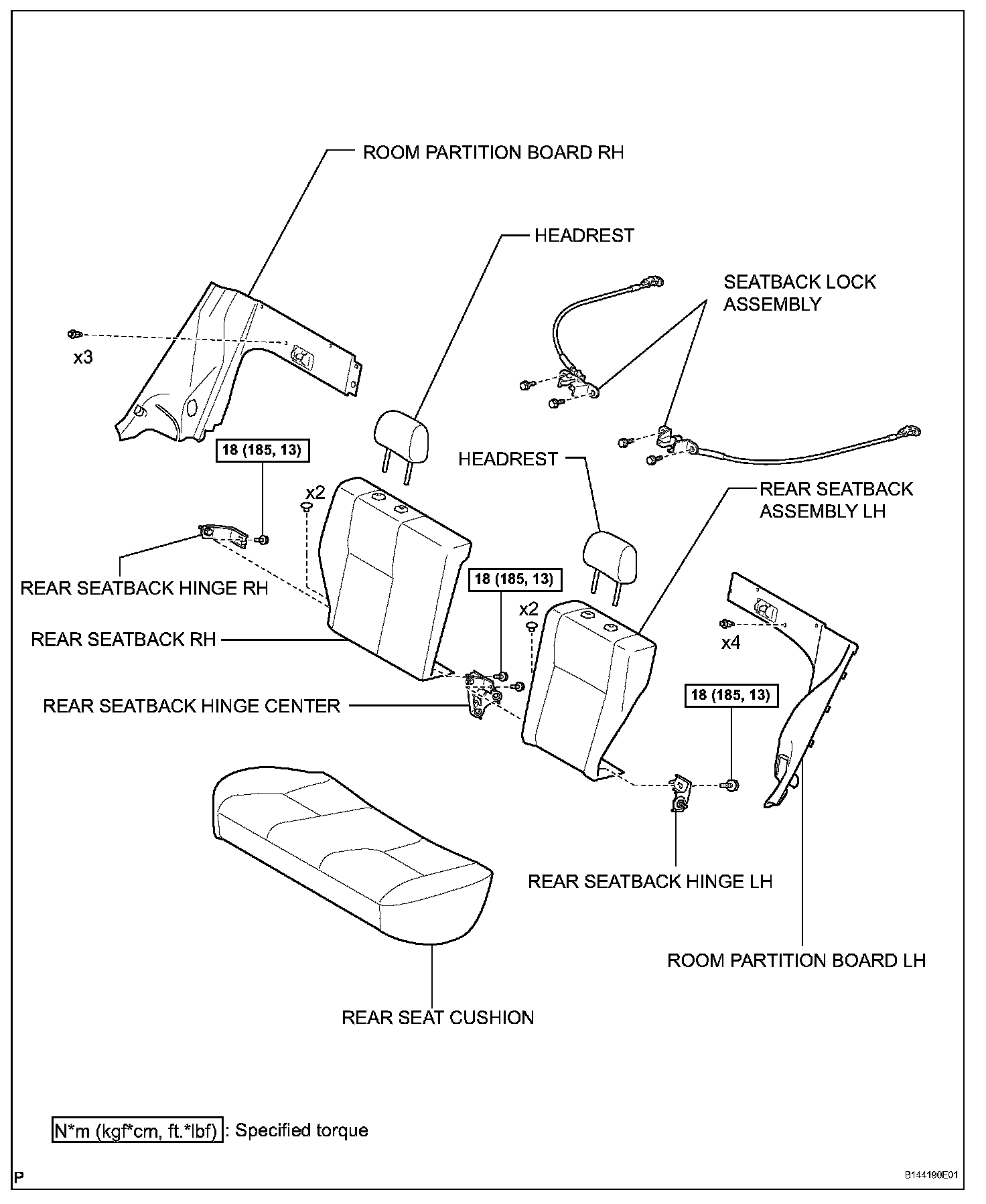

Rear Seat Assembly (For Separate Seat Type):

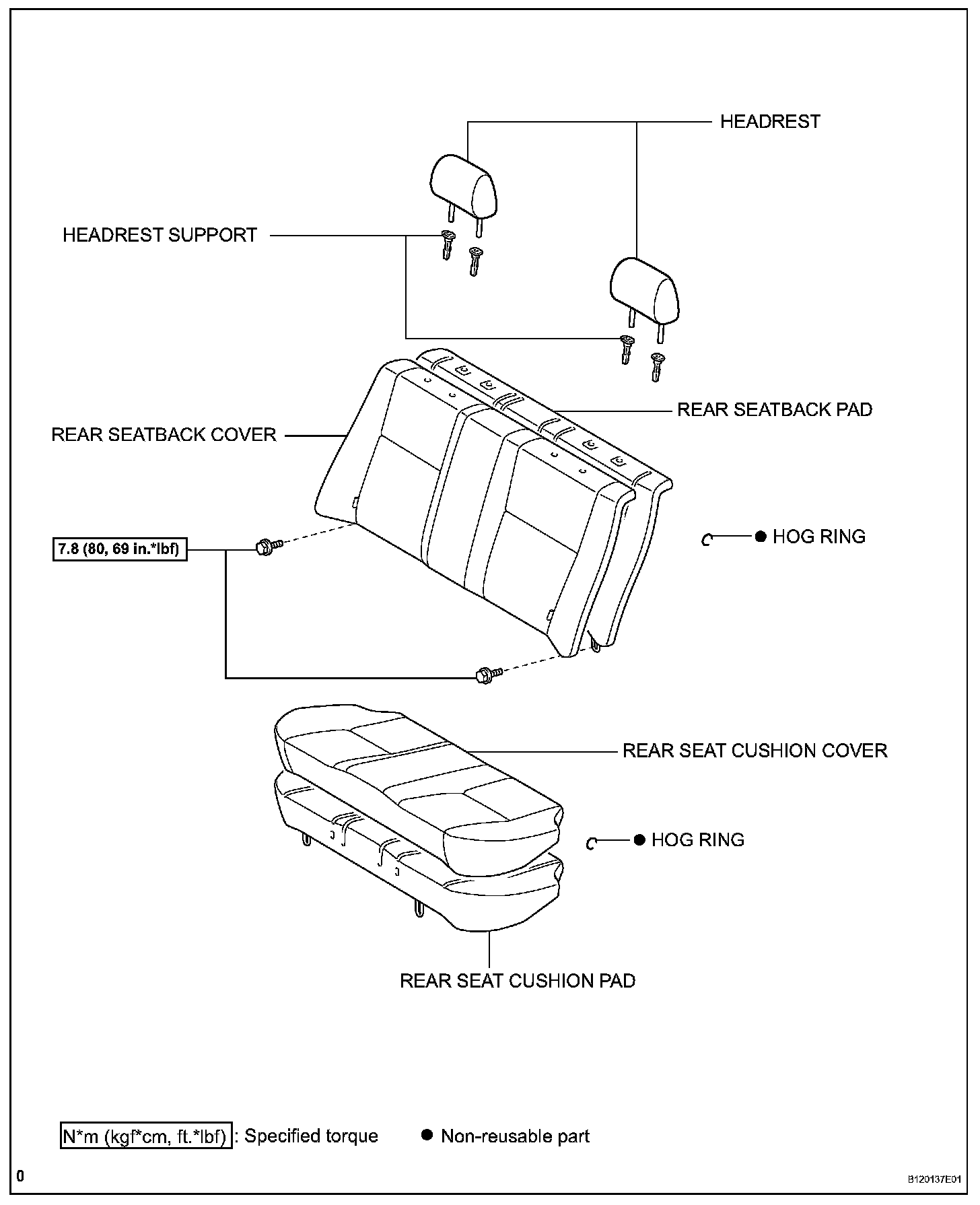

Rear Seat Assembly (For Bench Seat Type):
