Air Fuel Ratio Sensor: Installation

INSTALL AIR FUEL RATIO SENSOR
1. Install the 2 air fuel ratio sensors to the front pipe assembly.
  SST 09224-00010

  Torque:

  44 N*m (449 kgf*cm, 32 ft.*lbf)

  40 N*m (408 kgf*cm, 30 ft.*lbf) (with SST)

  NOTE: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
2. Connect the 2 air fuel ratio sensor connectors.

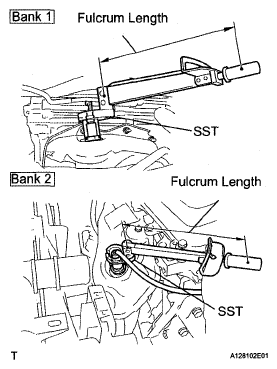

Fig 1: Installing Air Fuel Ratio Sensor
