Parts Location

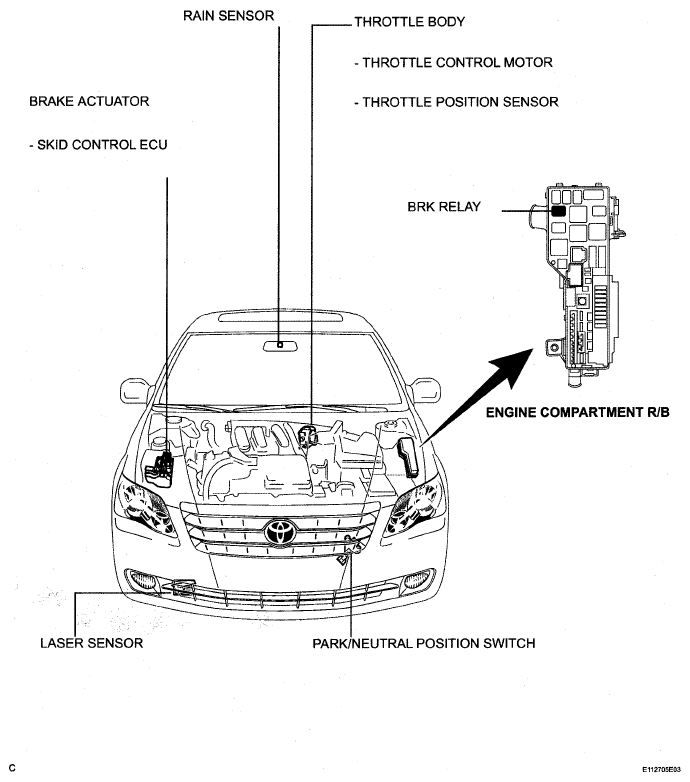

Fig 1: Identifying Dynamic Laser Cruise Control System Components Location (1 Of 3)
G05005561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

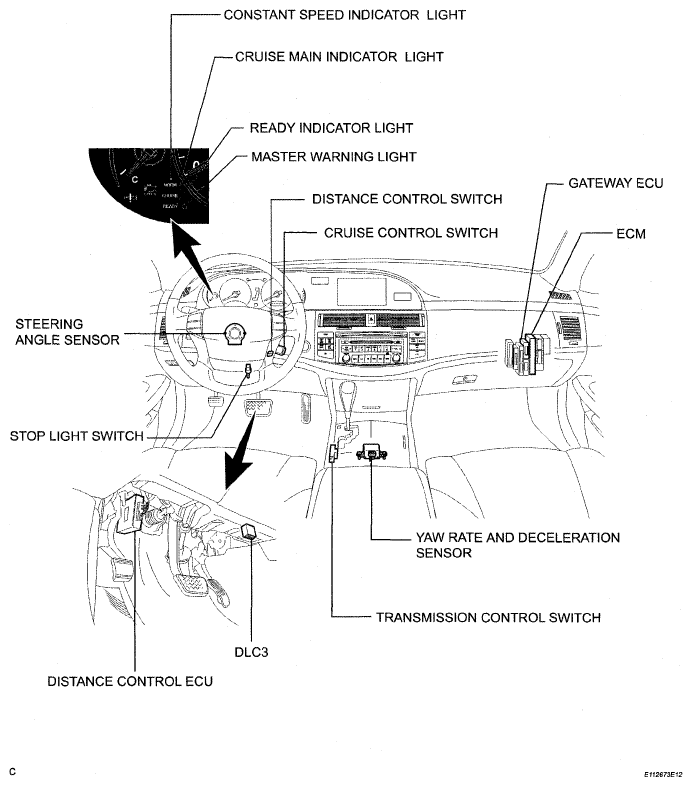

Fig 2: Identifying Dynamic Laser Cruise Control System Components Location (2 Of 3)
G05005562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Dynamic Laser Cruise Control System Components Location (3 Of 3)
G05005563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
