Distance Control ECU Communication Stop Mode

Distance Control ECU Communication Stop Mode




DESCRIPTION

NOTE: This is not applicable to a vehicle without a dynamic laser cruise control system.

Wiring Diagram:

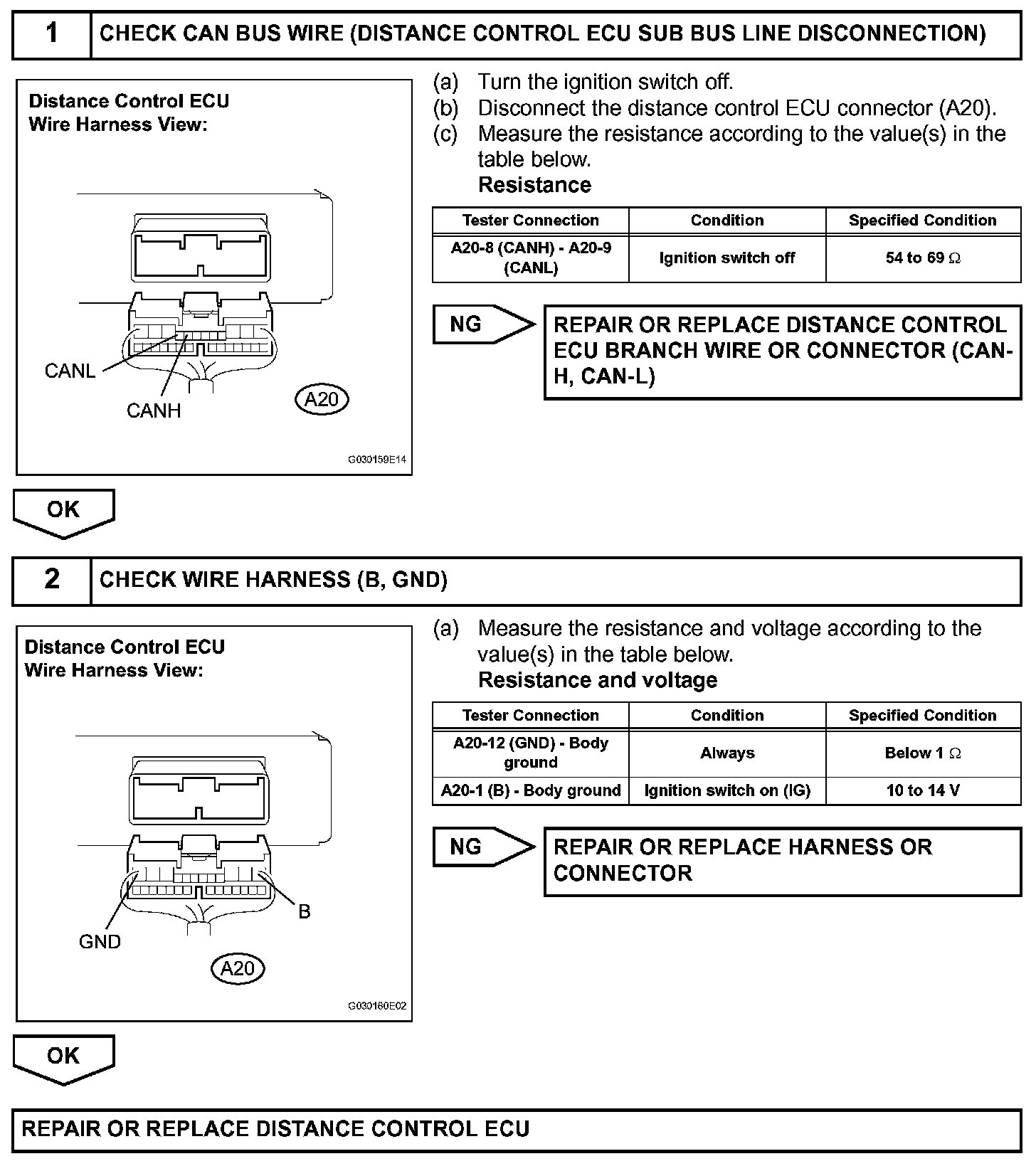

Step 1-2:




INSPECTION PROCEDURE
