Fuse Block

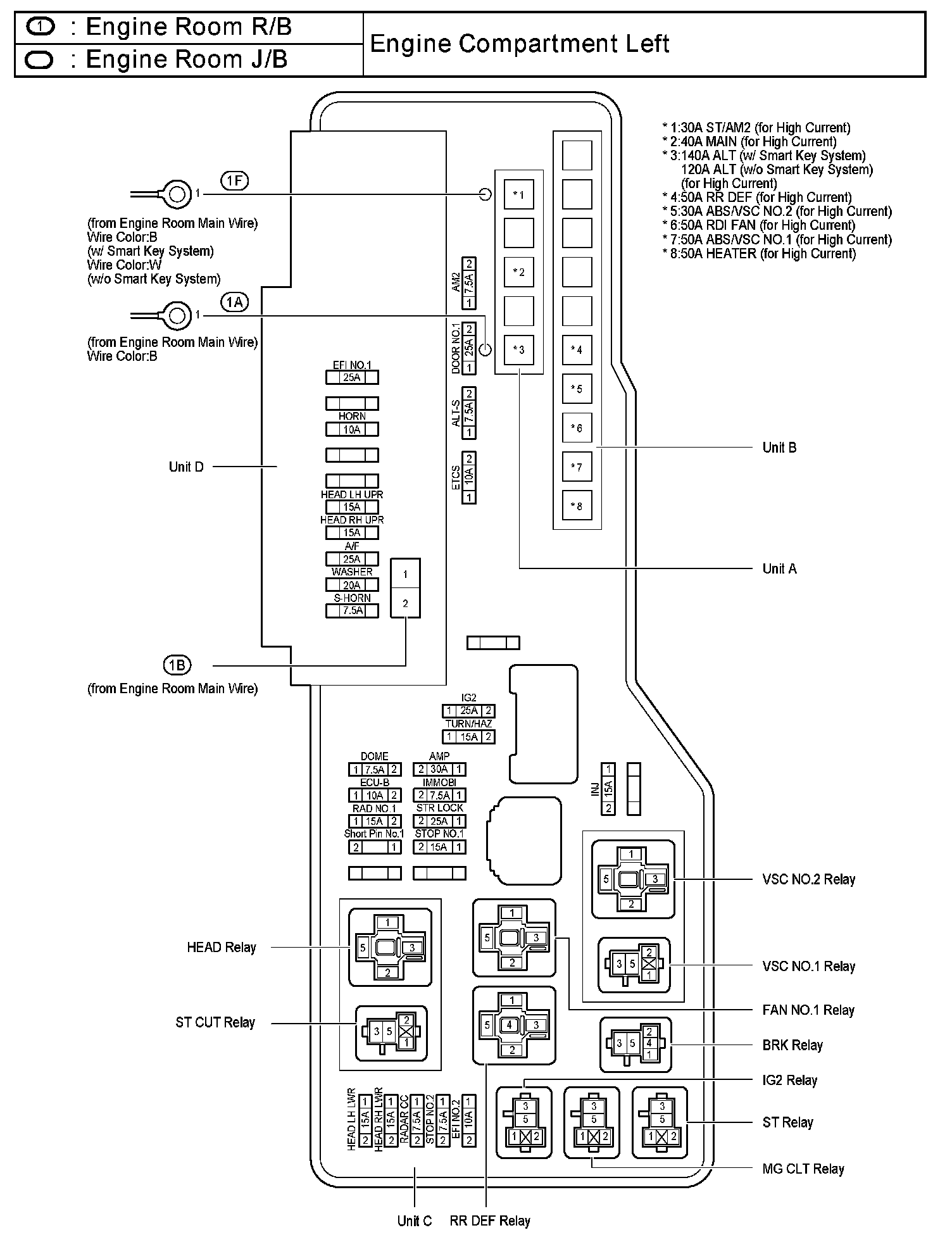

Engine Room R/B, J/B - Engine Compartment Left:

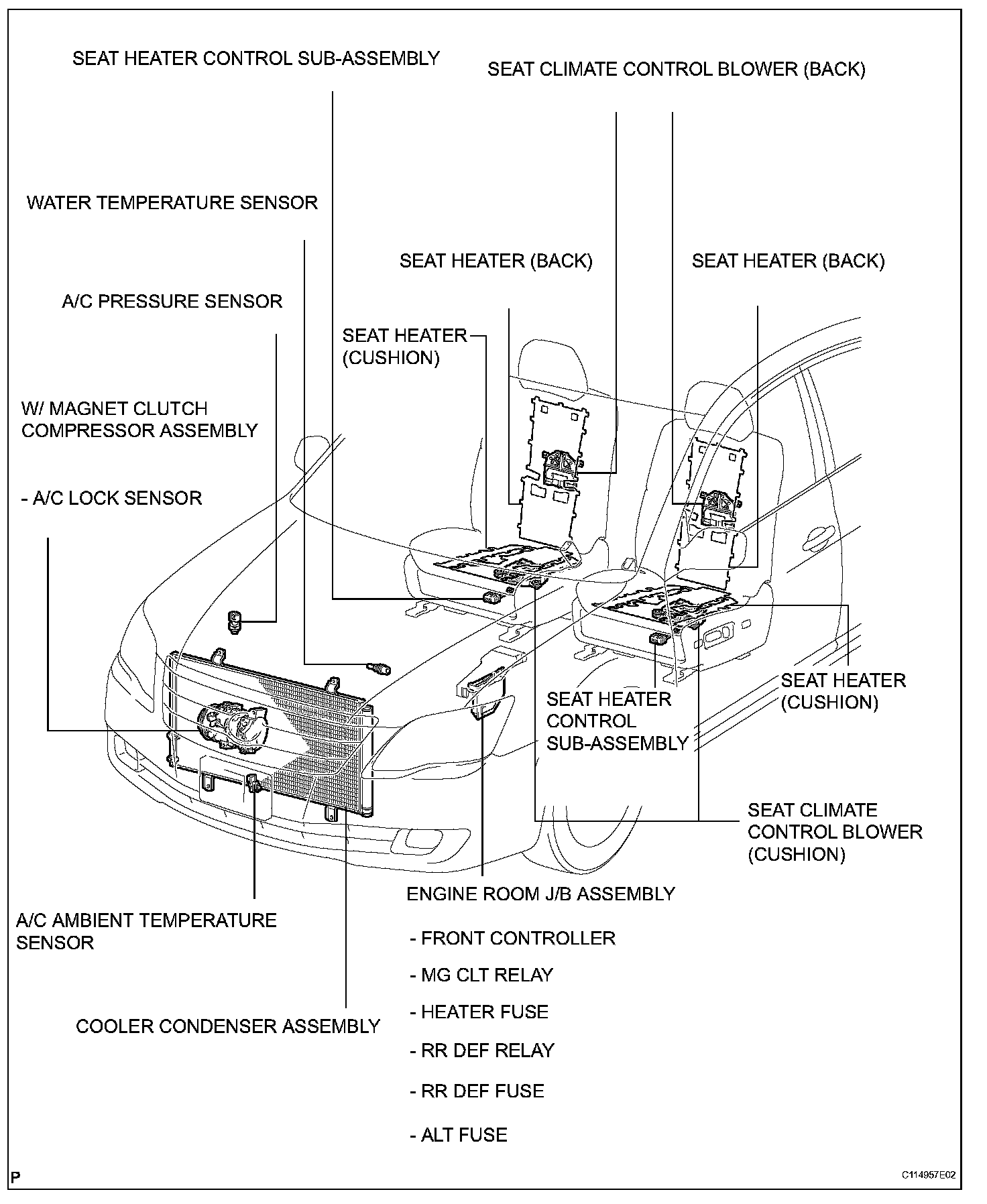

Air Conditioning System:

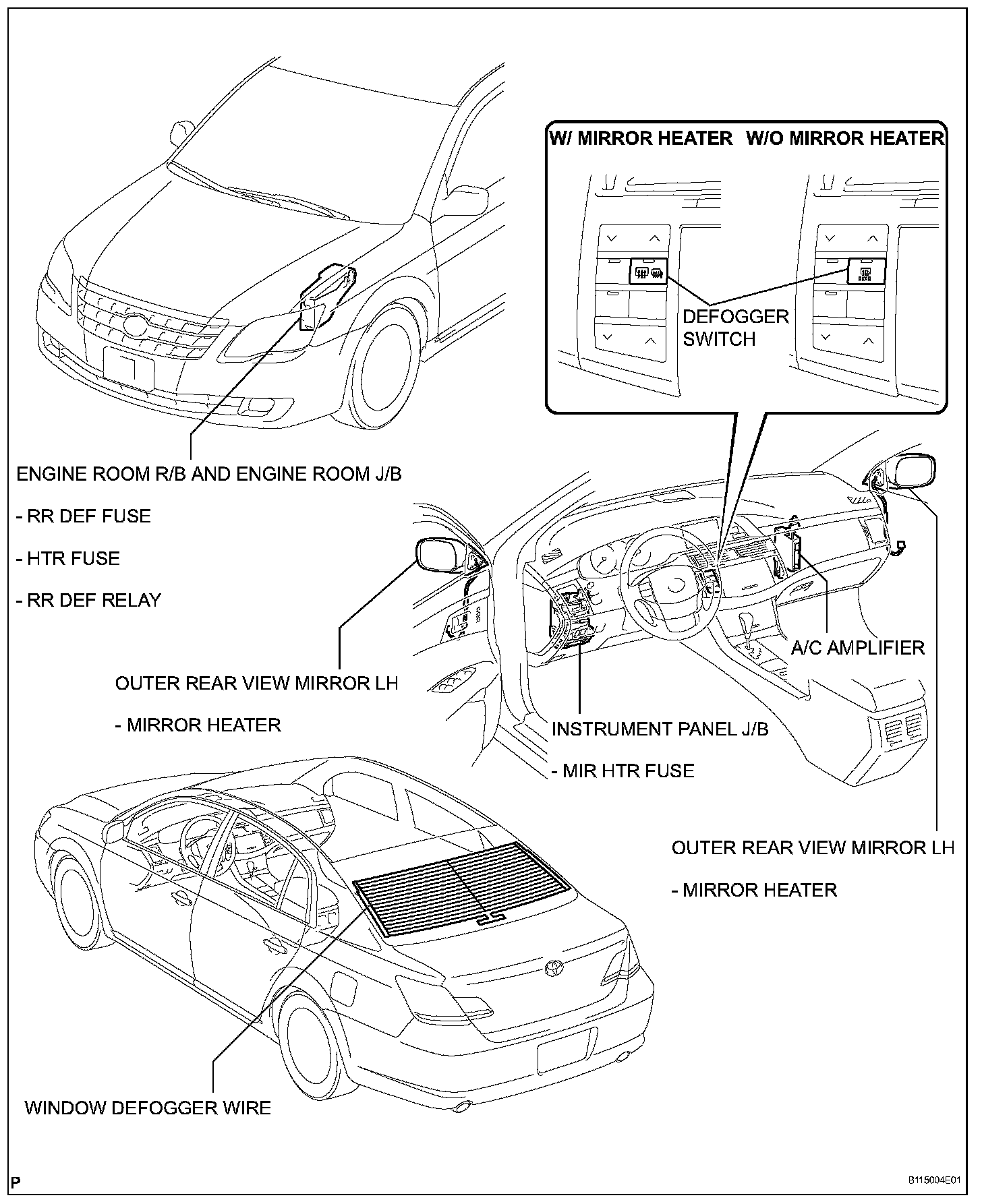

Window Defogger System:
