Throttle Body: Components

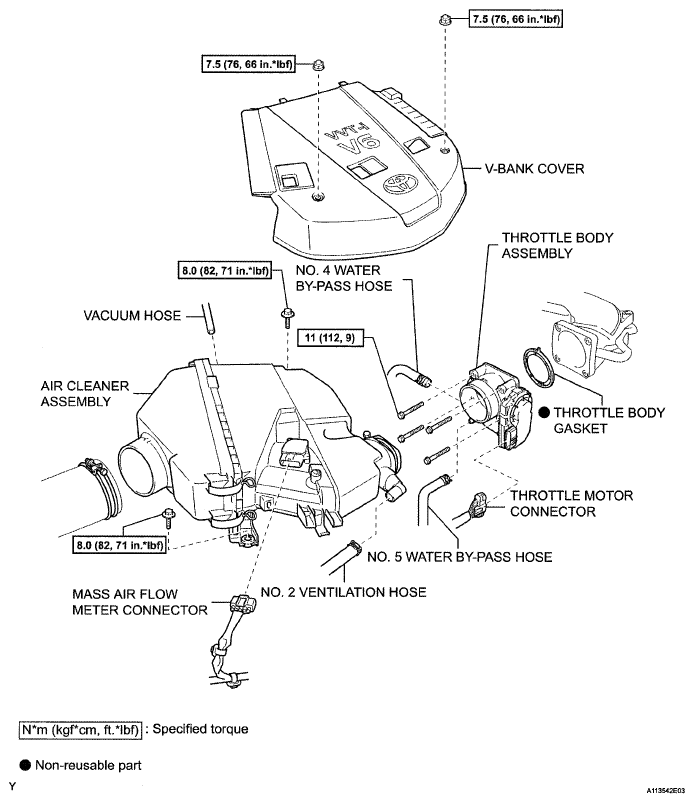

Fig 1: Throttle Body Replacement Components With Torque Specifications
G04968648Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
