Double Cab

The chart below shows the route by which current flows from the battery to each electrical source (Fusible Link, Circuit Breaker, Fuse, etc.) and other Parts.

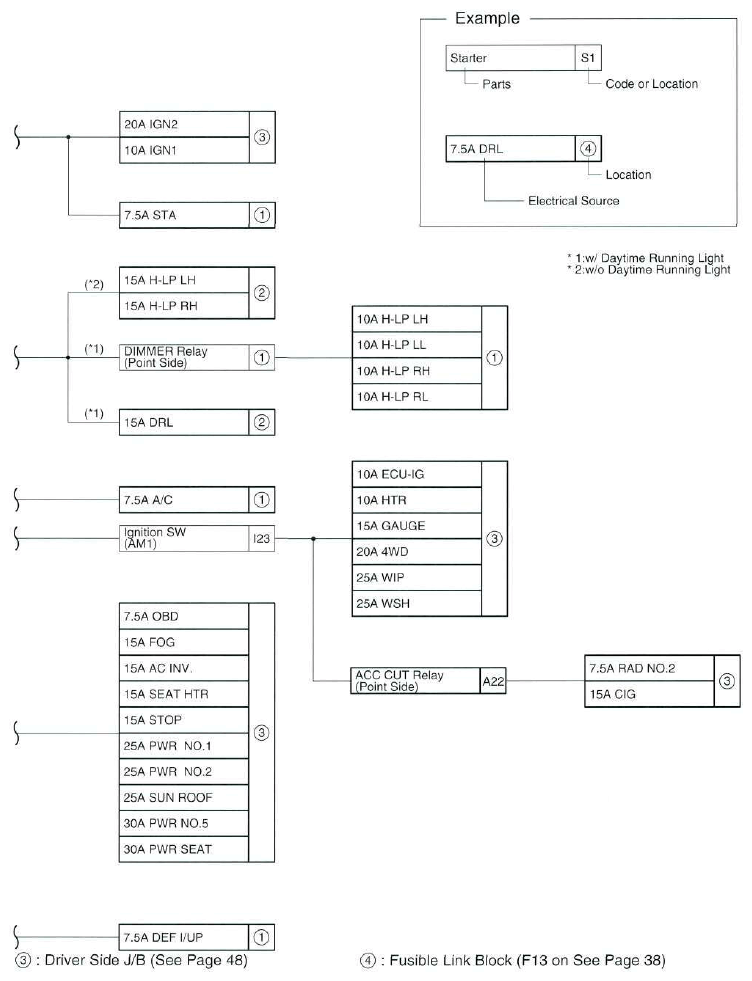

Fig 1: Power Source Current Flow Chart (Double Cab; 1 Of 2)

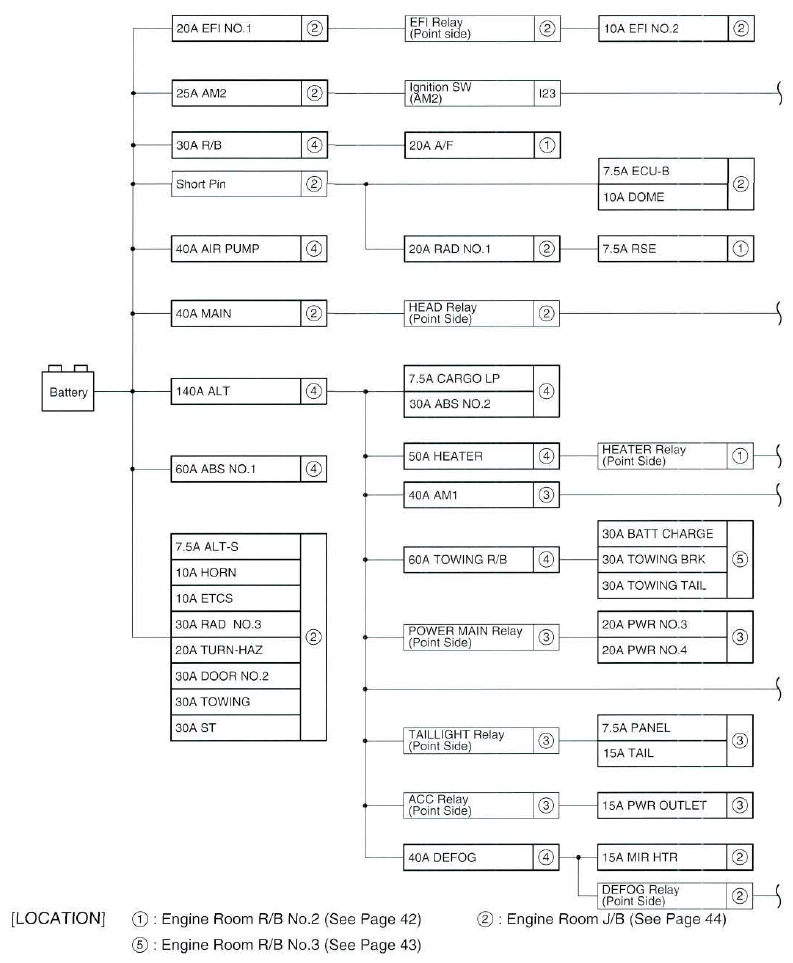

Fig 2: Power Source Current Flow Chart (Double Cab; 2 Of 2)
