Terminals Of Ecu
WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

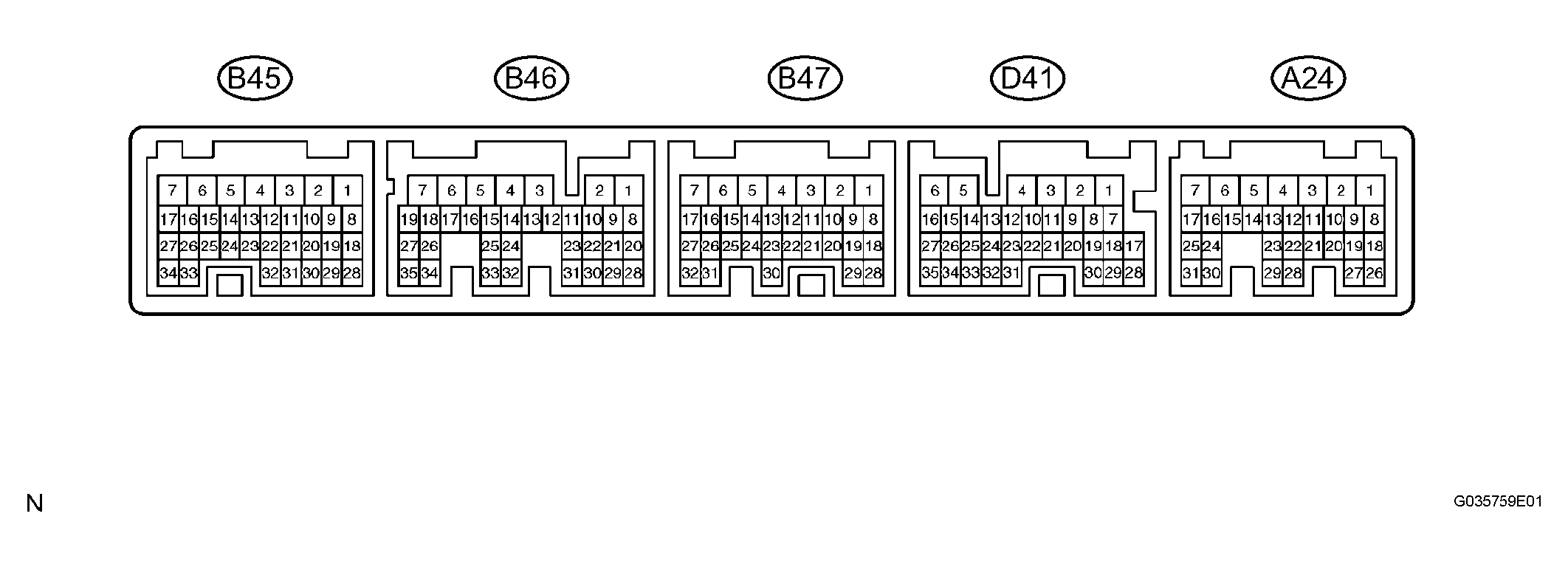

- CHECK ECM ECM CONNECTOR TERMINALS REFERENCE CHART
Symbols (Terminals No.) Wiring Color Terminal Description Condition Specified Condition TC - E1 (A24-23 - B47-1) P - BR Ground Ignition switch on (IG) --> Connect terminals TC and CG of DLC3 10 to 14 V --> Below 1 V STP - E1 (A24-15 - B47-1) W - BR Stop light signal Ignition switch on (IG) Depress brake pedal --> Release brake pedal 10 to 14 V --> Below 1 V CCS - E1 (D41-2 - B47-1) B - BR Cruise control main switch circuit Ignition switch on (IG) 10 to 14 V CCS - E1 (D41-2 - B47-1) B - BR Cruise control main switch circuit CANCEL switch hold ON 6.6 to 10.1 V CCS - E1 (D41-2 - B47-1) B - BR Cruise control main switch circuit SET/- switch hold ON 4.5 to 7.1 V CCS - E1 (D41-2 - B47-1) B - BR Cruise control main switch circuit RES/+ switch hold ON 2.3 to 4.0 V CCS - E1 (D41-2 - B47-1) B - BR Cruise control main switch circuit MAIN switch hold ON Below 1 V
