DTC Check / Clear

WARNING: This page is about a different car, the 2006 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

DTC CHECK
1. Connect the intelligent tester to the DLC3.

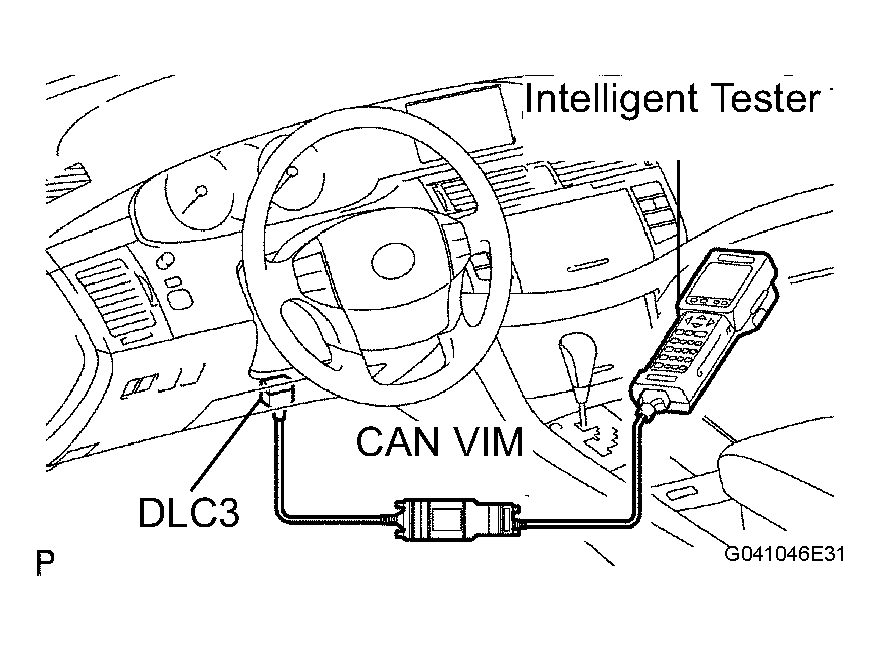

  Fig 1: Connecting CAN VIM To Data Link Connector 3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the intelligent tester to the Controller Area Network Vehicle Interface Module (CAN VIM). Then connect the CAN VIM to the Data Link Connector 3 (DLC3).
2. Turn the ignition switch on (IG).
3. Read the DTCs by following the prompts on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
DTC CLEAR
1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch on (IG).
3. Operate the intelligent tester to erase the codes.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
