Parts Location

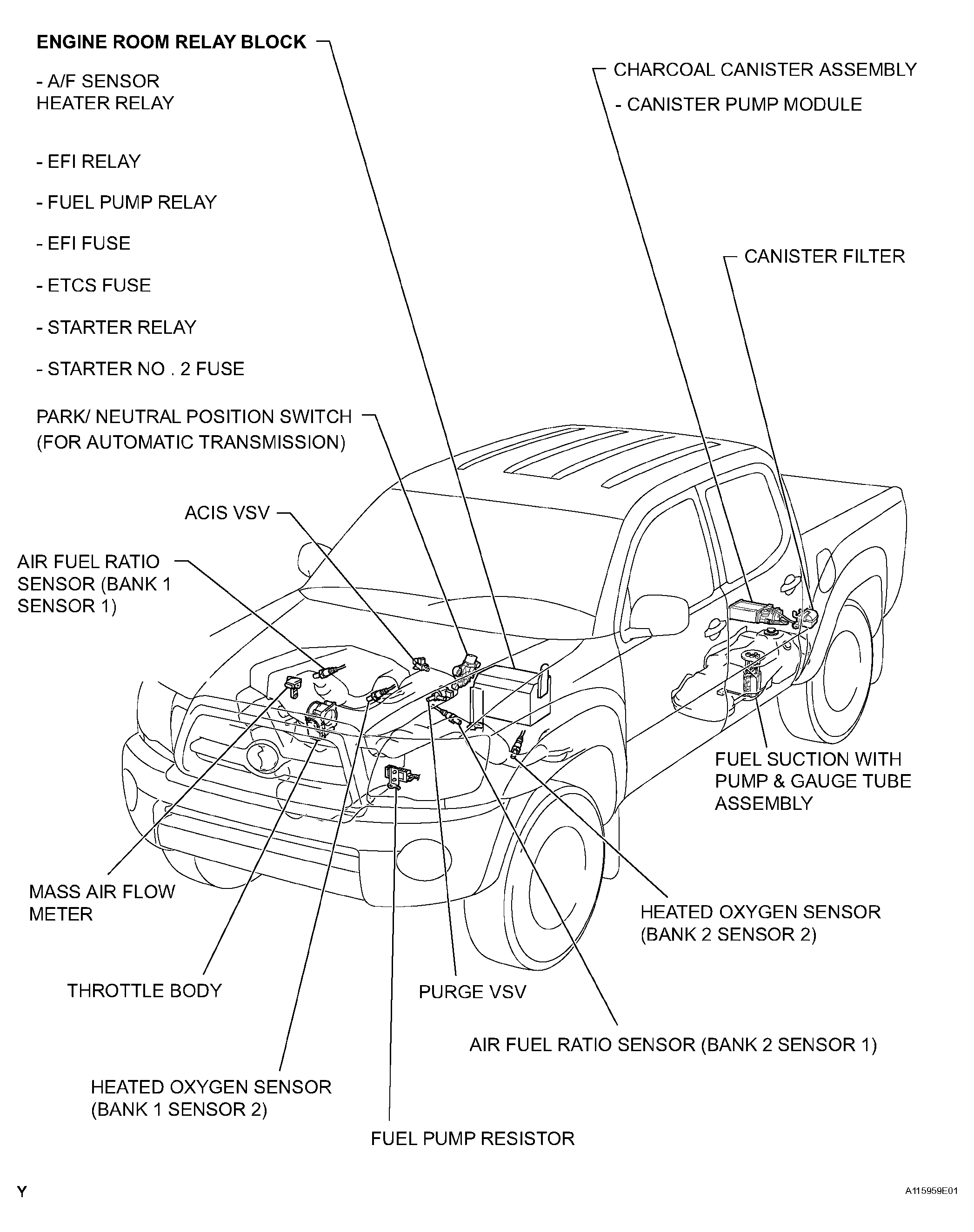

Fig 1: Identifying SFI System (1GR-FE) Components Location (1 Of 3)
G04407015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

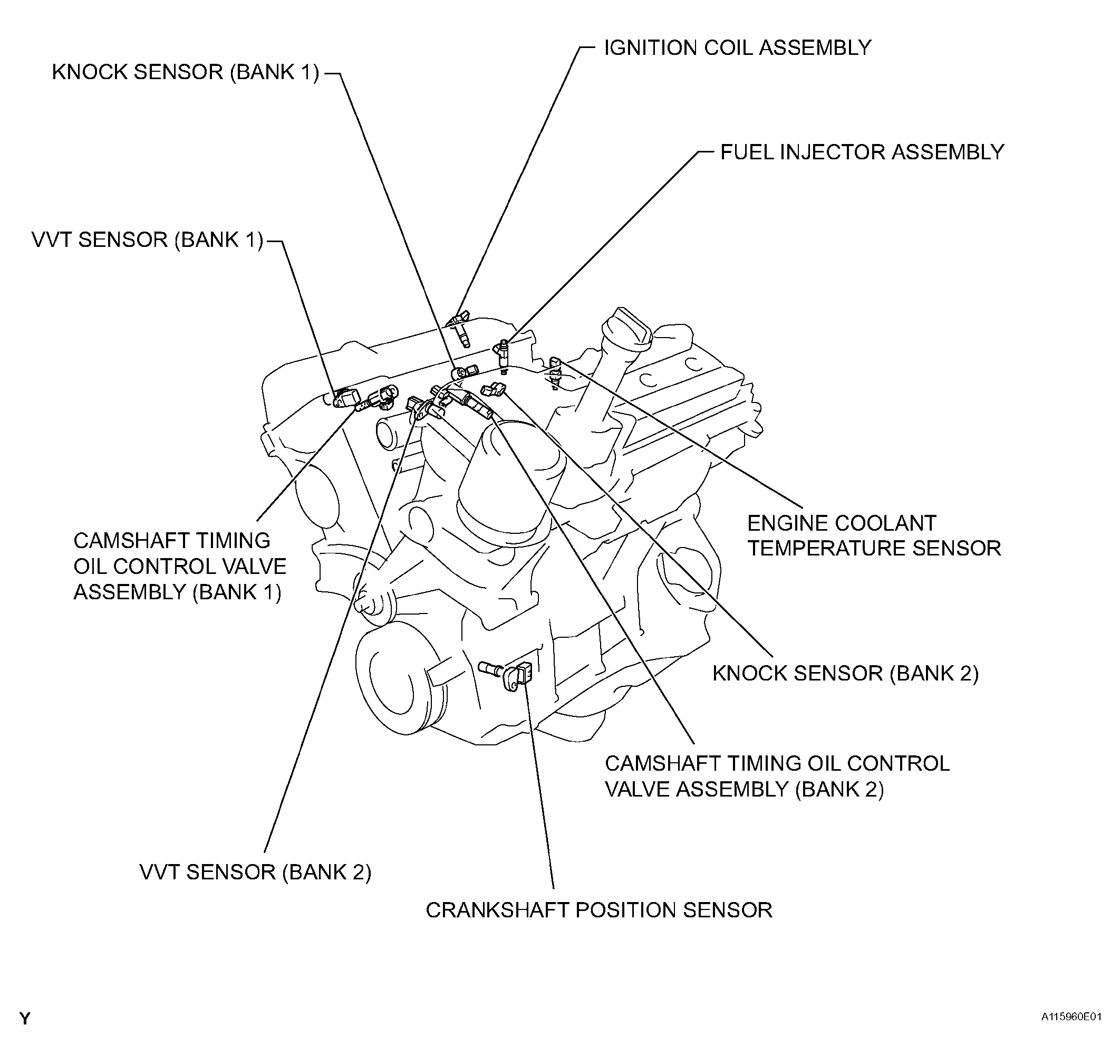

Fig 2: Identifying SFI System (1GR-FE) Components Location (2 Of 3)
G04407016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

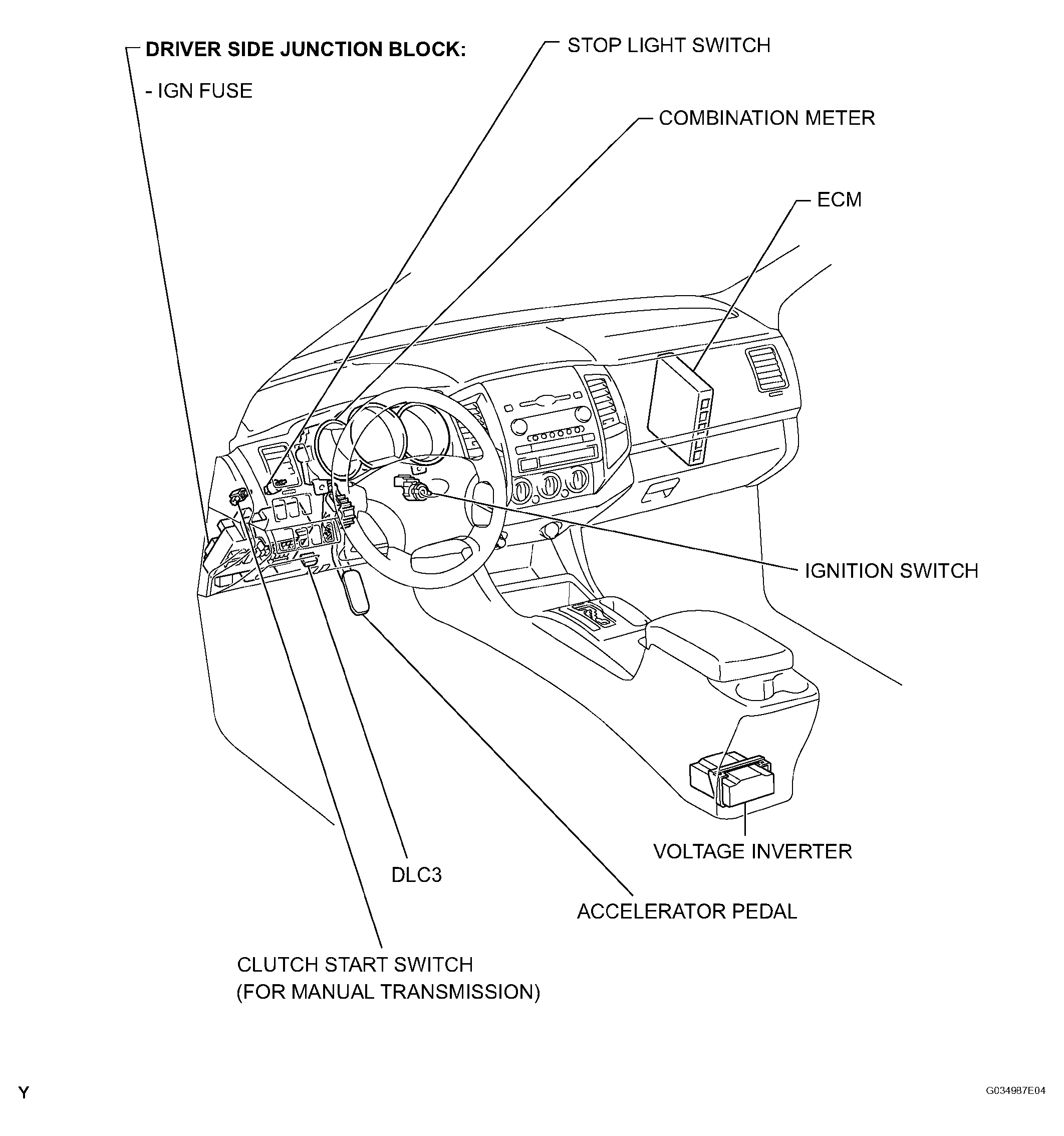

Fig 3: Identifying SFI System (1GR-FE) Components Location (3 Of 3)
G04407017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
