Parts Location

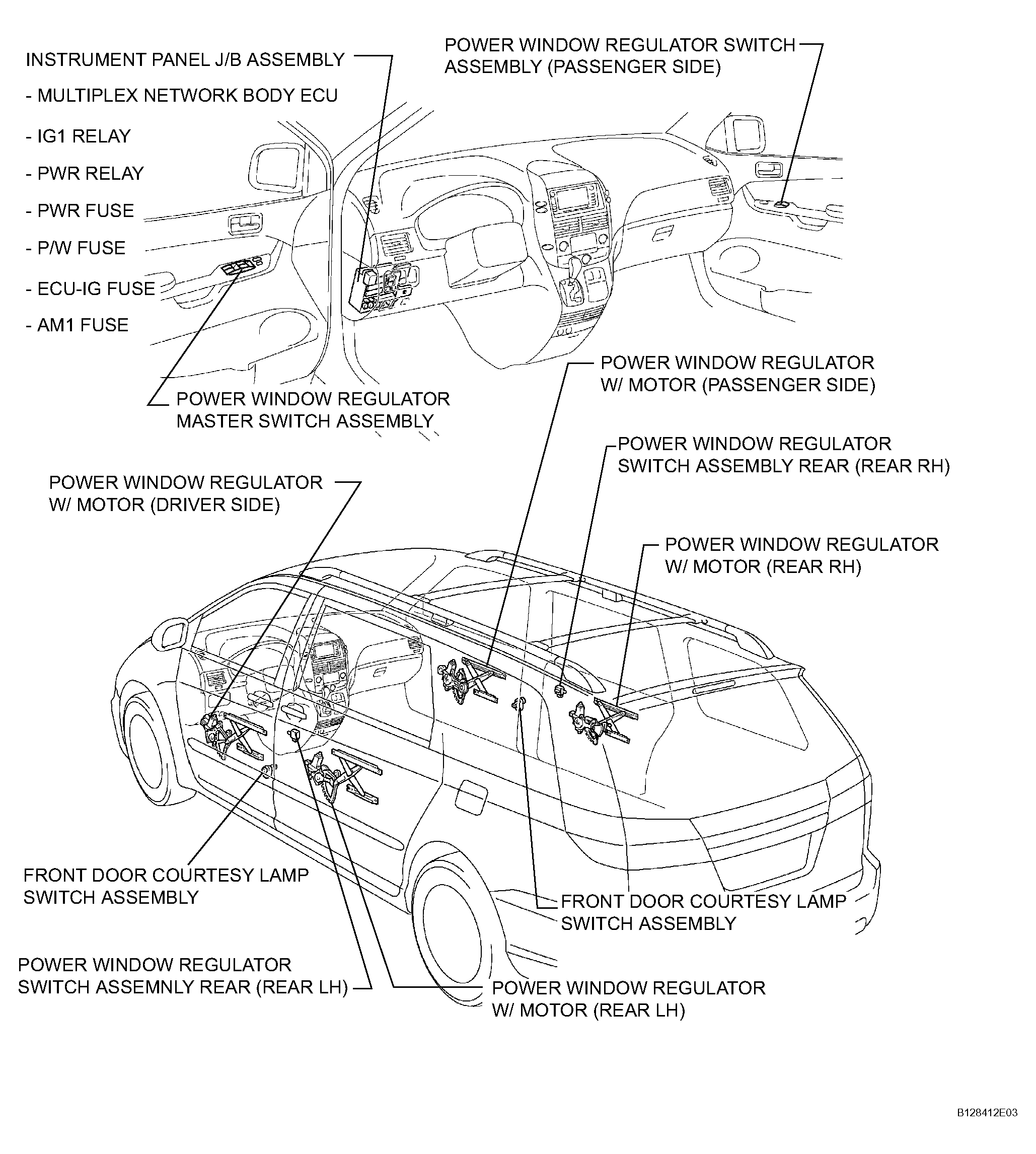

Fig 1: Locating Power Window Control System Parts (W/Jam Protection Function)
G04495623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
