Radio Broadcast cannot be Received or Poor Reception
- CHECK RADIO RECEIVER
- Check the radio's automatic station search function.
- Check the radio's automatic station search function by activating it.
OK: The radio's automatic station search function works properly.
- Check the radio's automatic station search function by activating it.
OK: REPLACE RADIO RECEIVER
NG: GO TO NEXT STEP
- Check the radio's automatic station search function.
- CONFIRM MODEL
Result
MODELResult Proceed to 10 Speaker System A 6 Speaker System B B: Go to step 9
A: GO TO NEXT STEP
- INSPECT RADIO RECEIVER ASSEMBLY

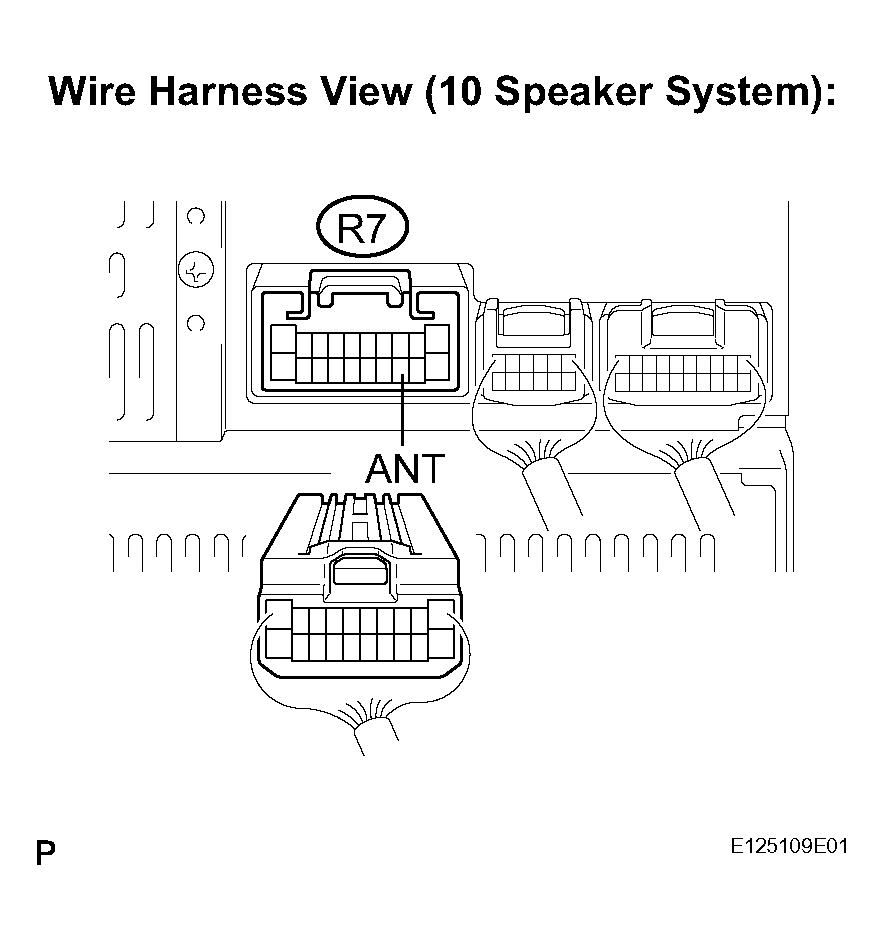

- Disconnect the radio receiver connector R7.
- Measure the voltage according to the value(s) in RADIO RECEIVER ASSEMBLY
.
Standard voltage
RADIO RECEIVER ASSEMBLYTester Connection Condition Specified Condition ANT - Body ground Ignition SW ON
Radio SW ON10 to 14 V
NG: REPLACE RADIO RECEIVER
OK: GO TO NEXT STEP
- CHECK OPTIONAL COMPONENTS
- Check optional components (sun-shade film, telephone antenna, etc.).
- Check if any optional components, such as sunshade film or telephone antenna that may decrease reception capacity, are installed.
OK: Optional components are installed.
NOTE: Do not remove any optional components installed by the customer without his or her consent.
- Check if any optional components, such as sunshade film or telephone antenna that may decrease reception capacity, are installed.
OK: REMOVE OPTIONAL COMPONENTS AND CHECK AGAIN (SEE NOTICE ABOVE)
NG: GO TO NEXT STEP
- Check optional components (sun-shade film, telephone antenna, etc.).
- CHECK RADIO RECEIVER
- Preparation for check
- Remove the antenna plug from the radio receiver.
- Check for noise
- Turn the ignition switch to the ACC position with the radio receiver connector connected.
- Turn the radio on and put into AM mode.
- Place a screwdriver, thin wire, or other metal object on the radio receiver's antenna jack and check that noise can be heard from the speaker.
OK: Noise occurs.
NG: REPLACE RADIO RECEIVER
OK: GO TO NEXT STEP
- Preparation for check
- CHECK GLASS ANTENNA
- Check for continuity of the antenna.
HINT:
Check for continuity at the center of each antenna wire as shown in Fig 3 .
NOTE: When cleaning the glass, wipe it in the direction of the wire with a soft dry cloth. Take care not to damage the wire. Do not use detergents or glass cleaners with abrasive ingredients. When measuring voltage, wrap a piece of tin foil around the tip of the negative probe and press the foil against the wire with your finger, as shown in Fig 3 .OK: There is continuity in the antenna.
NG: REPAIR GLASS ANTENNA
OK: GO TO NEXT STEP
- Check for continuity of the antenna.
- CHECK ANTENNA CORD
- Remove the antenna plug of the radio receiver and antenna.
- Measure the resistance between the antenna and radio receiver to check for an open circuit in the antenna cord.
Standard resistance: Below 1 Ω
- Measure the resistance between the antenna cord and body ground to check for a short circuit in the antenna cord.
Standard resistance: 10 kΩ or higher
NG: REPLACE ANTENNA CORD
OK: GO TO NEXT STEP
- REPLACE AMPLIFIER ANTENNA ASSEMBLY
- Replace the amplifier antenna and check if radio broadcasts can be received normally.
OK: Radio broadcasts can be received.
OK: NORMAL OPERATION
NG: REPLACE RADIO RECEIVER
- Replace the amplifier antenna and check if radio broadcasts can be received normally.
- CHECK OPTIONAL COMPONENTS
OK: REMOVE OPTIONAL COMPONENTS AND CHECK AGAIN (SEE NOTE IN STEP a )
NG: GO TO NEXT STEP
- CHECK RADIO RECEIVER
- Preparation for check
- Remove the antenna plug from the radio receiver.
- Check for noise
- Turn the ignition switch on (ACC) with the radio receiver connector connected.
- Turn the radio on and put into AM mode.
- Place a screwdriver, thin wire, or other metal object on the radio receiver's antenna jack and check that noise can be heard from the speaker.
OK: Noise occurs.
NG: REPLACE RADIO RECEIVER
OK: GO TO NEXT STEP
- Preparation for check
- CHECK RADIO ANTENNA CORD
- Remove the antenna plug of the radio receiver and antenna.
- Measure the resistance between the antenna and radio receiver to check for an open circuit in the radio antenna cord.
Standard resistance: Below 1 Ω
- Measure the resistance between the radio antenna cord and body ground to check for a short circuit in the antenna cord.
Standard resistance: 10 kΩ or higher
NG: REPLACE ANTENNA CORD
OK: GO TO NEXT STEP
- REPLACE ANTENNA POLE
- Replace antenna pole and check that it operated normally.
OK: The antenna pole operates normally.
OK: NORMAL OPERATION
NG: REPLACE RADIO RECEIVER
- Replace antenna pole and check that it operated normally.
