Engine Oil Cooler: Components

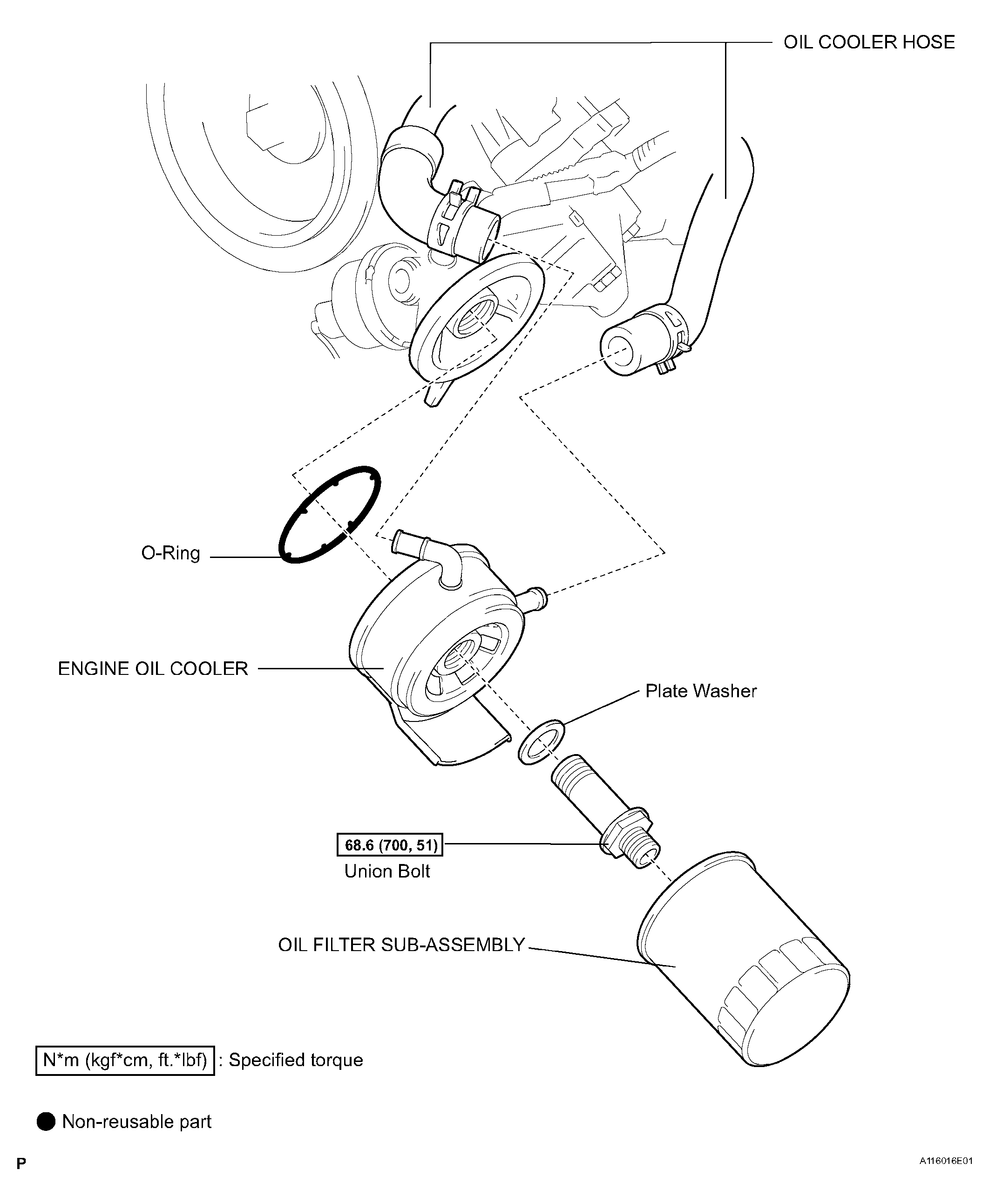

Fig 1: Engine Oil Cooler Replacement Components & Torque Specification
G04507664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
