Fuel Injector: Components

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 2)
G04485534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

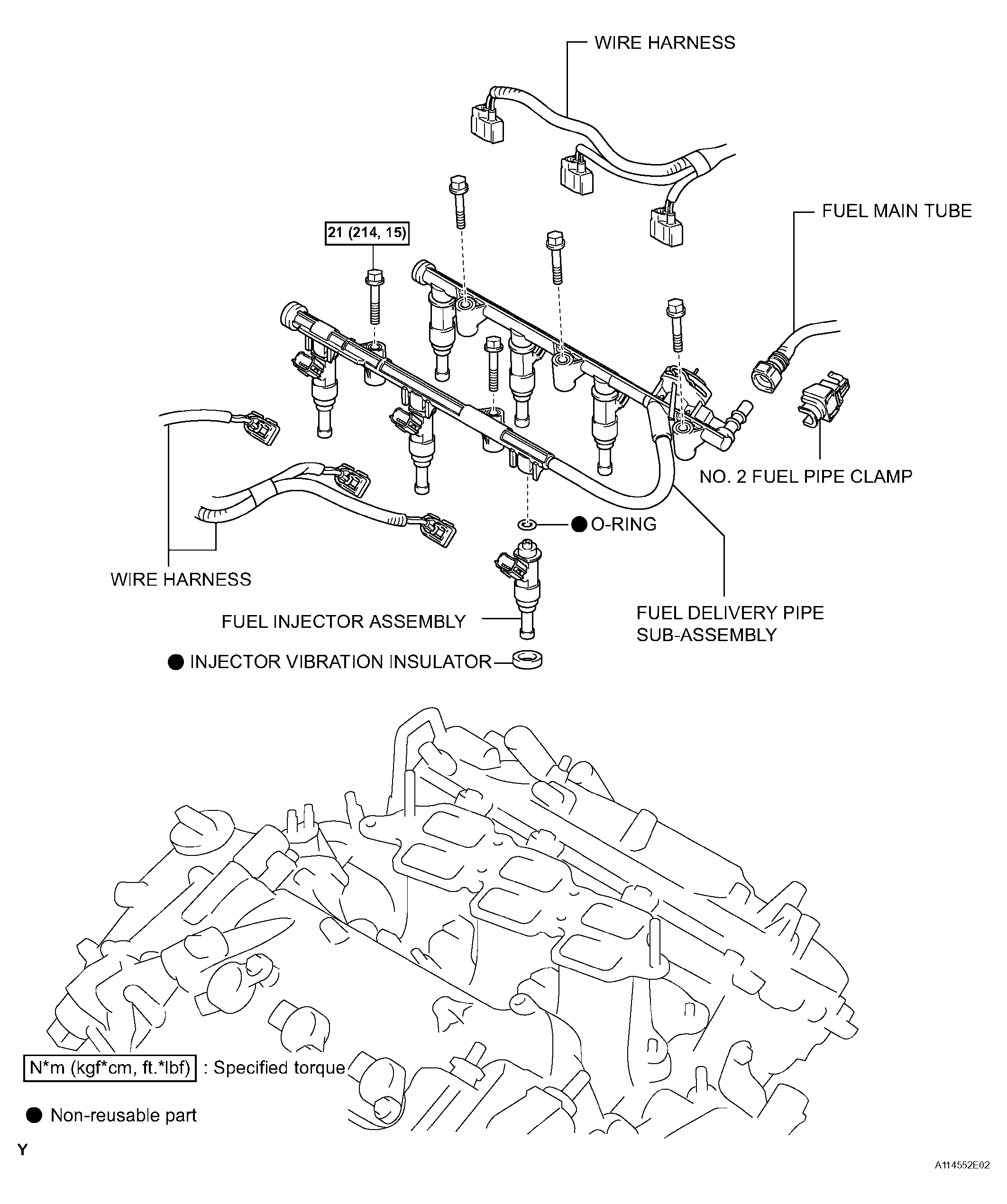

Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 2)
G04485535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
