Engine Control System (2GR-FE): ECM: Removal
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
- REMOVE AIR CLEANER CAP (See appropriate step(s) under REMOVAL
).
- REMOVE AIR CLEANER CASE (See appropriate step(s) under REMOVAL
).
- REMOVE ECM

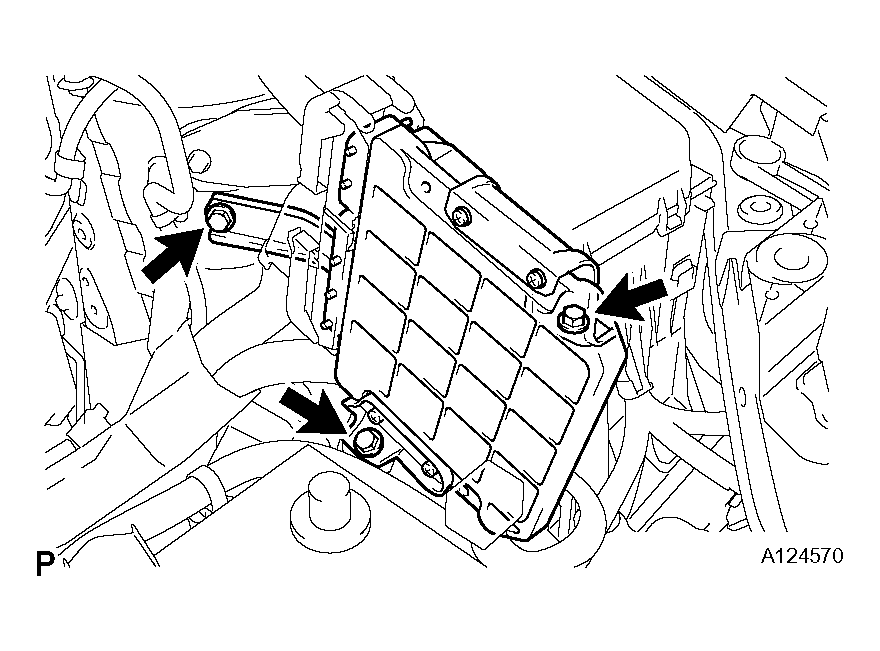

- Remove the 3 bolts of the ECM bracket.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the 2 ECM connectors.
NOTE:
After disconnecting the connector, make sure that dirt, water and other foreign matter does not contact the connecting part of the connector.

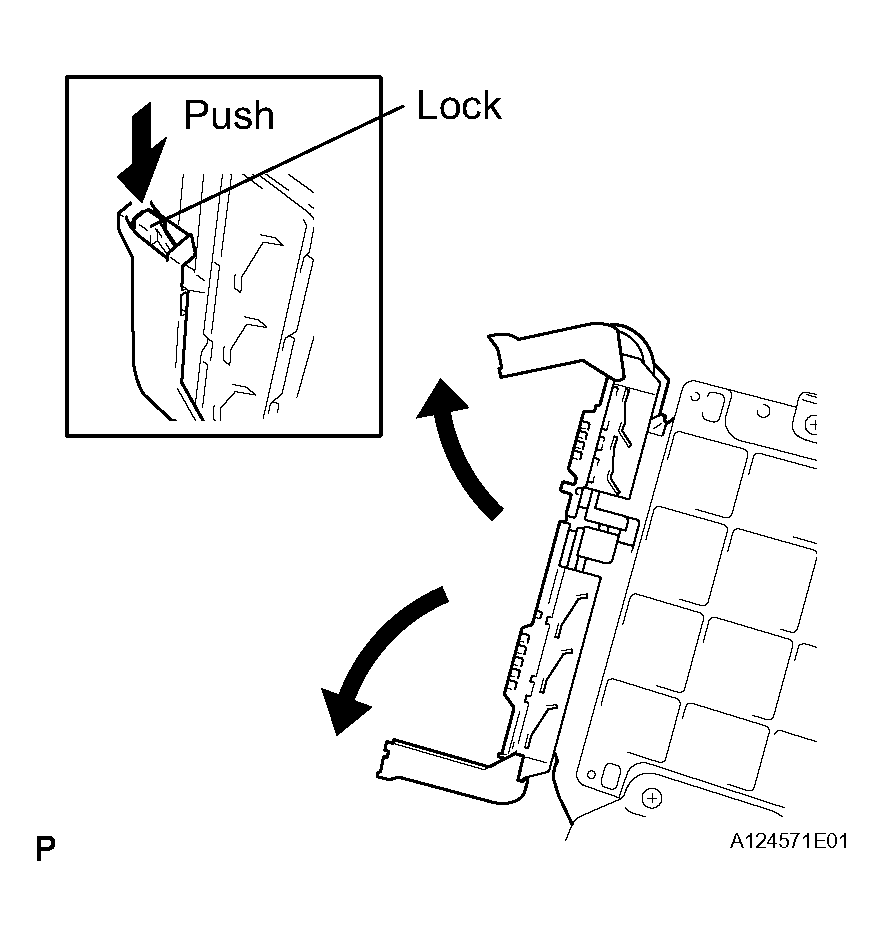

- Raise the 2 levers while pushing the locks on the 2 levers, and disconnect the 2 ECM connectors.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Remove the ECM with bracket.
- Remove the 4 screws and 2 ECM brackets.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
