Crankshaft Position Sensor: Removal
- DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See appropriate step(s) under REPLACEMENT
).
- DRAIN ENGINE COOLANT (See appropriate step(s) under COOLANT
).
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
- REMOVE RADIATOR ASSEMBLY
- Remove the radiator assembly (See appropriate step(s) under REMOVAL
).
- REMOVE FAN AND GENERATOR V BELT (See REMOVAL
)
- DISCONNECT COMPRESSOR WITH PULLEY ASSEMBLY (See REMOVAL
)

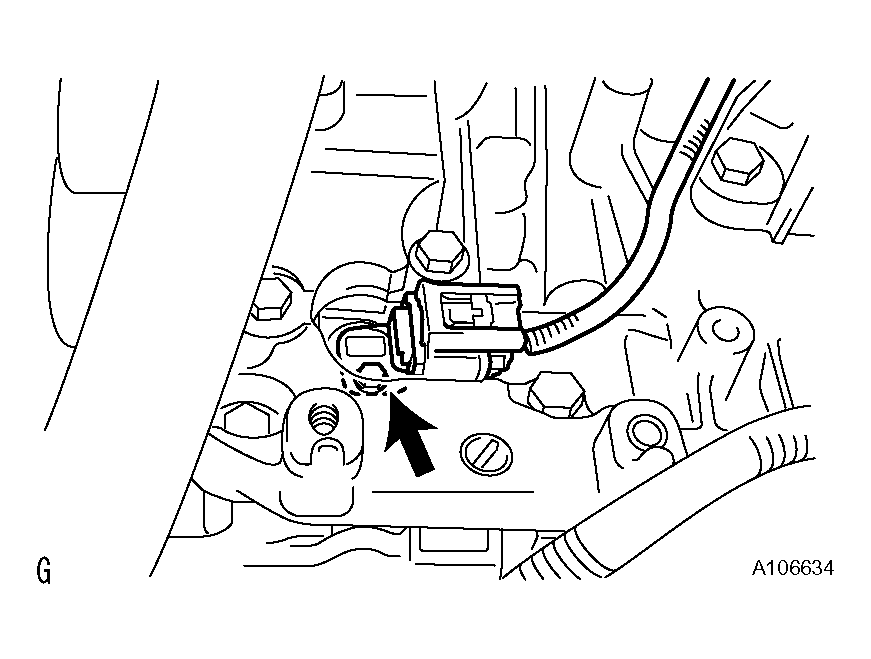

- REMOVE CRANKSHAFT POSITION SENSOR
- Disconnect the sensor connector.
- Remove the bolt and sensor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
