Crankshaft Position Sensor: Components

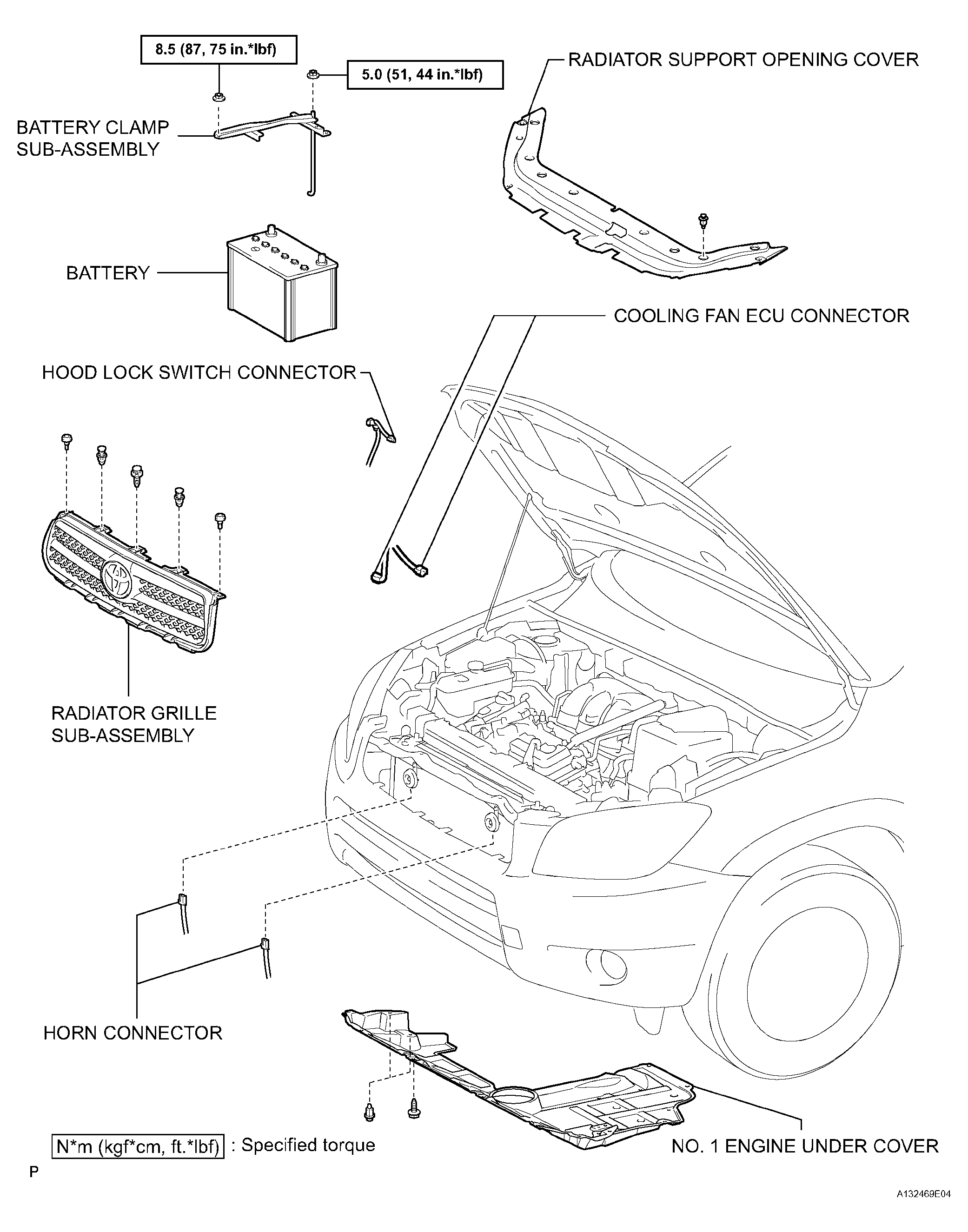

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications (1 Of 3)
G04484541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

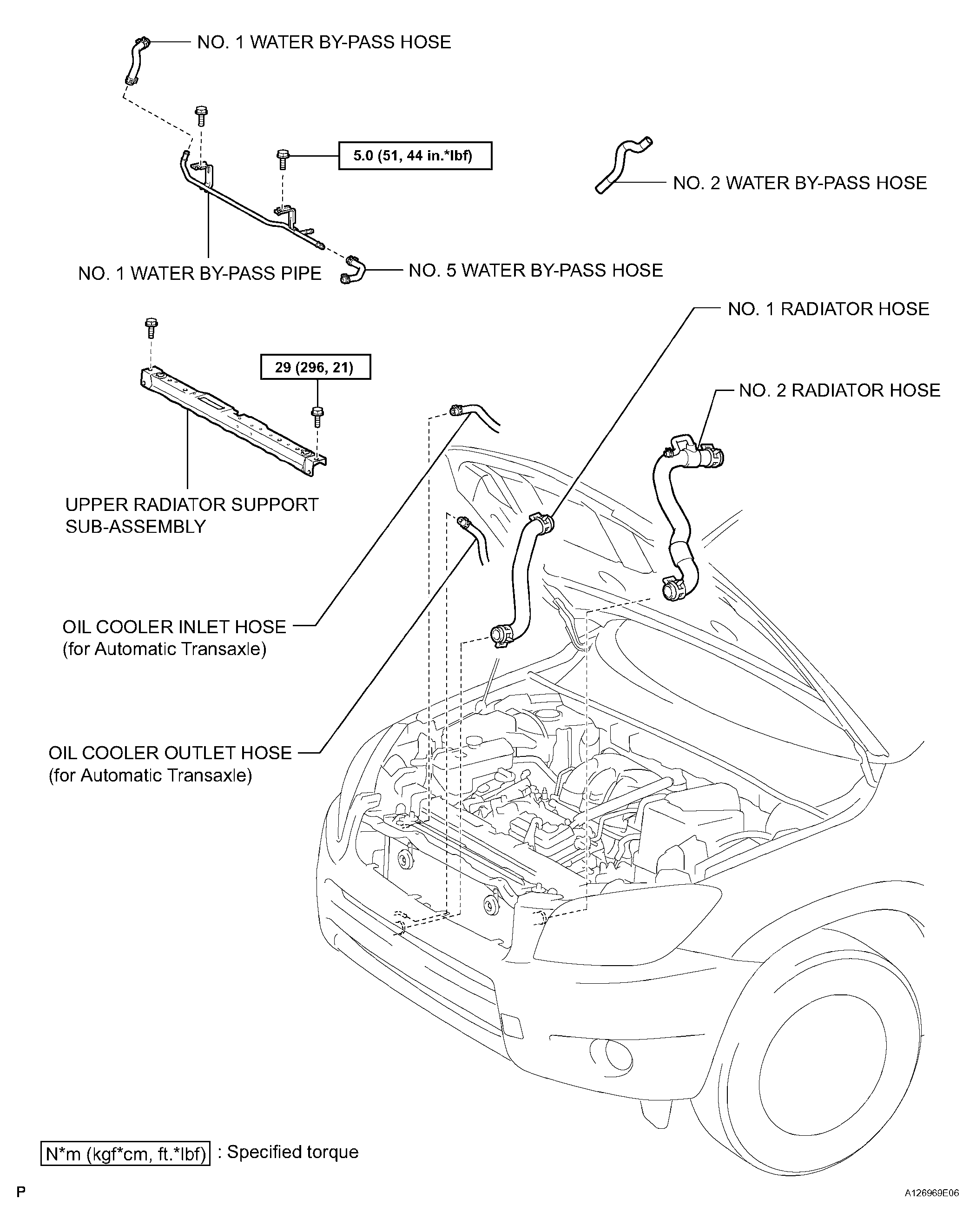

Fig 2: Crankshaft Position Sensor Replacement Components With Torque Specifications (2 Of 3)
G04484542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

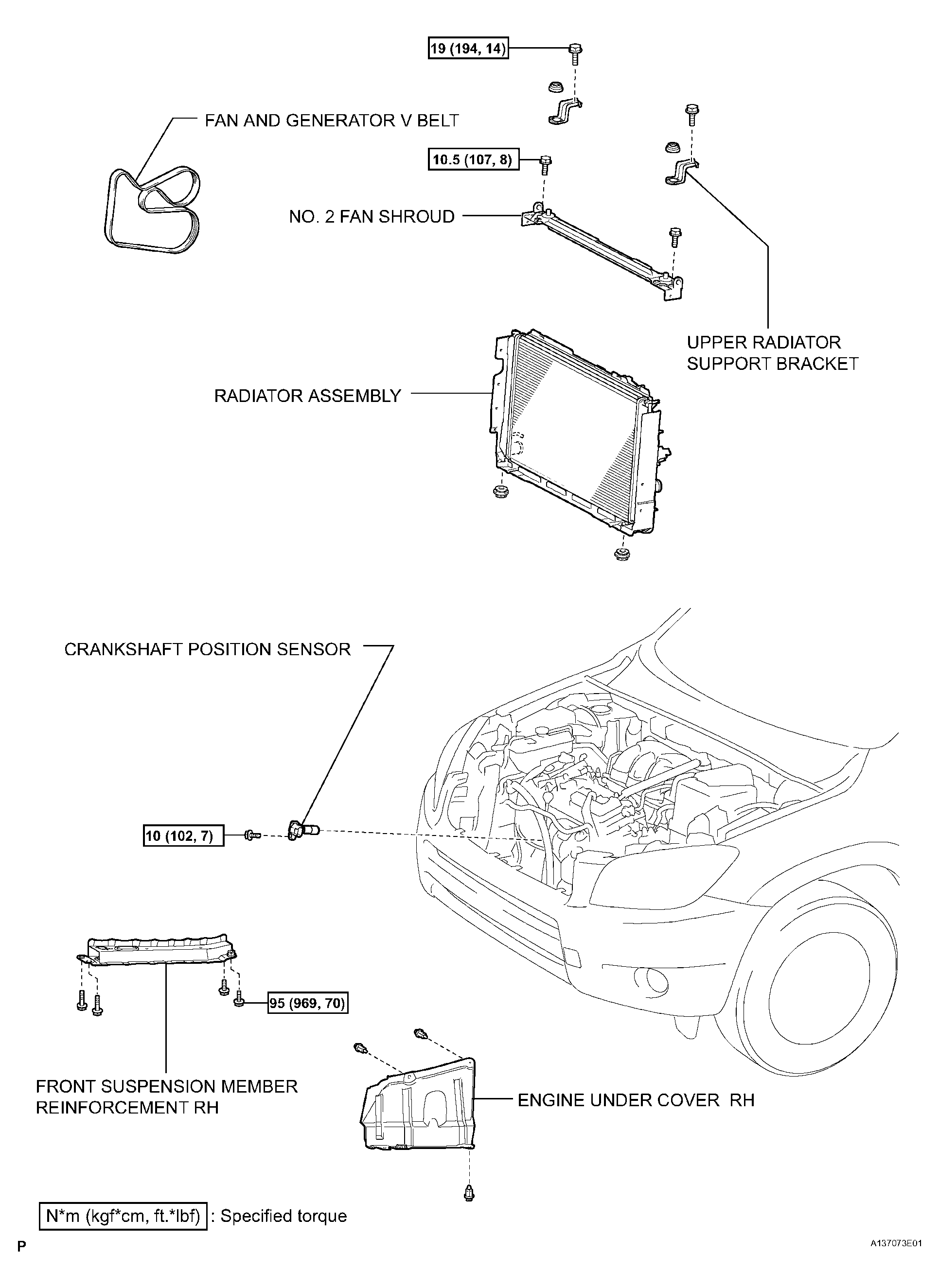

Fig 3: Crankshaft Position Sensor Replacement Components With Torque Specifications (3 Of 3)
G04484543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
