Throttle Body: Inspection
- INSPECT THROTTLE BODY

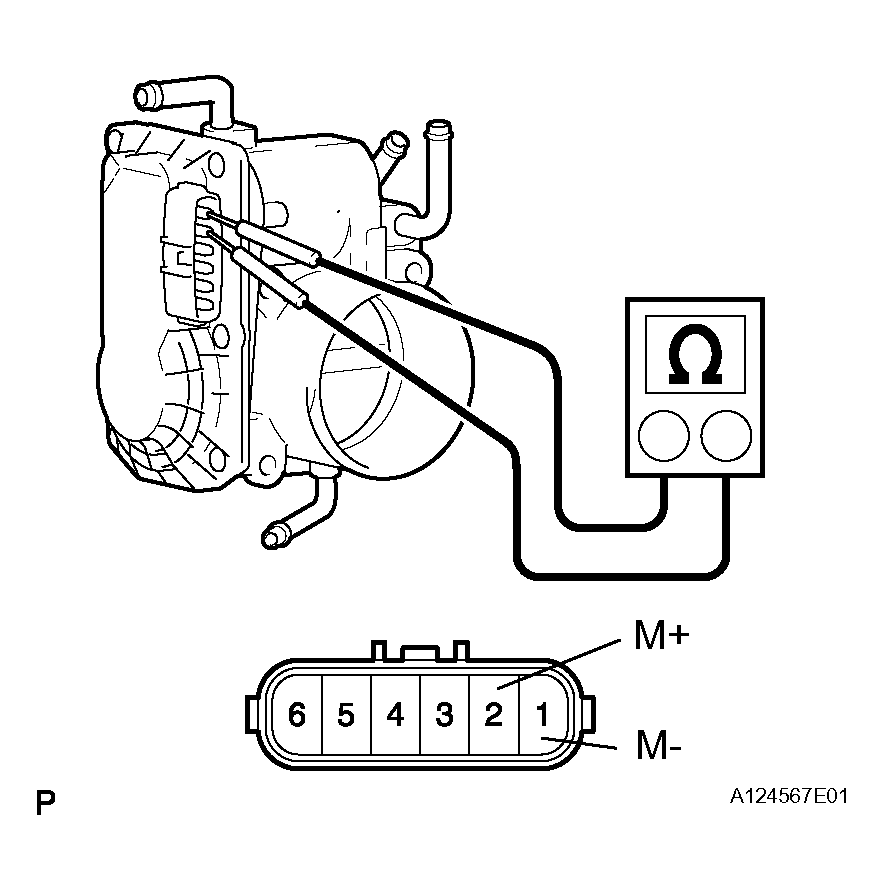

- Measure the resistance of the throttle control motor.
Standard resistance
TESTER CONNECTION - SPECIFIED CONDITIONS
| Tester Connection |
Specified Condition |
| 1 (M-) - 2 (M+) |
0.3 to 100 Ω at 20°C (68°F) |
If the result is not as specified, replace the throttle body.
