Engine Control System (2AZ-FE): ECM: Components

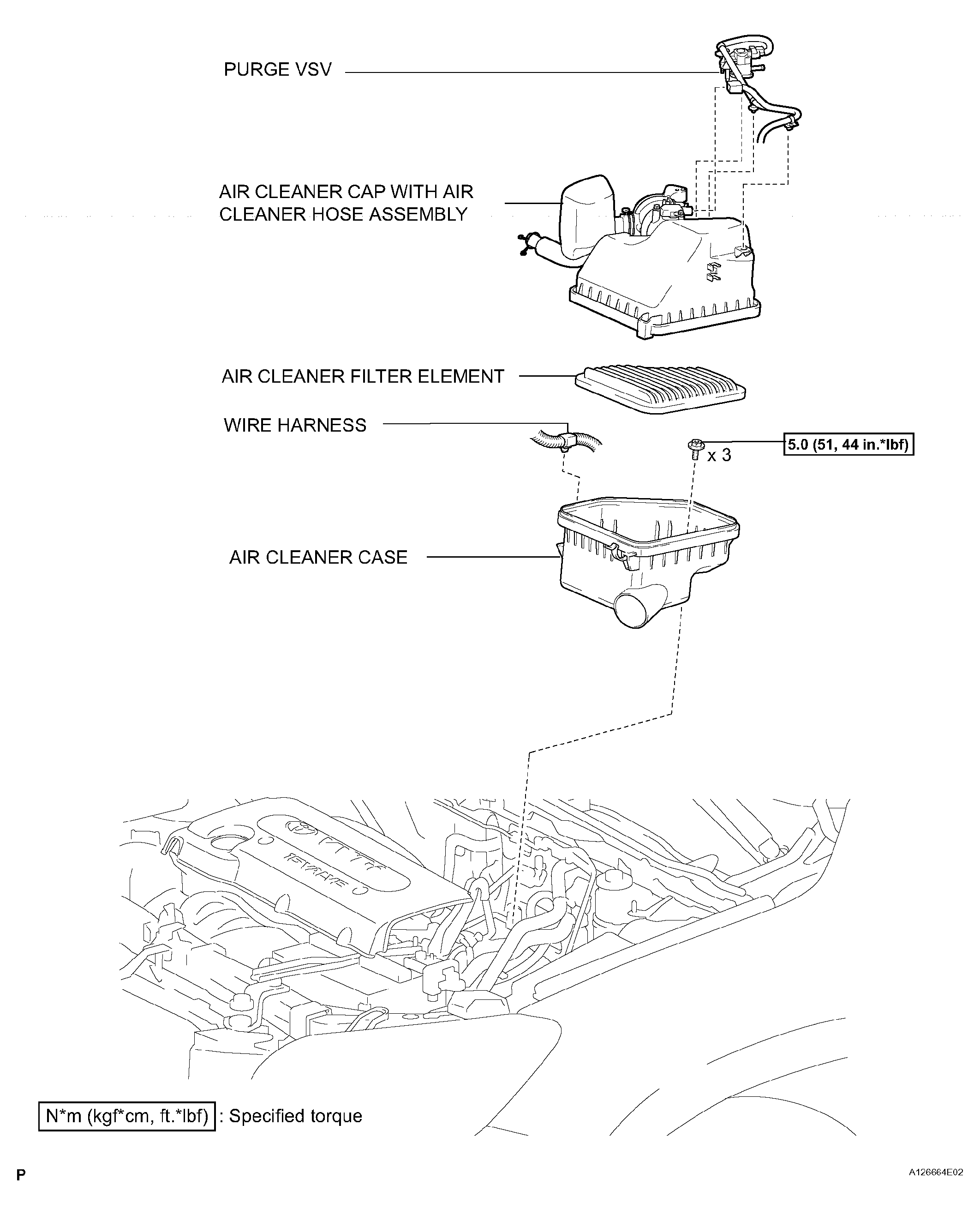

Fig 1: ECM Replacement Components With Torque Specifications (1 Of 2)

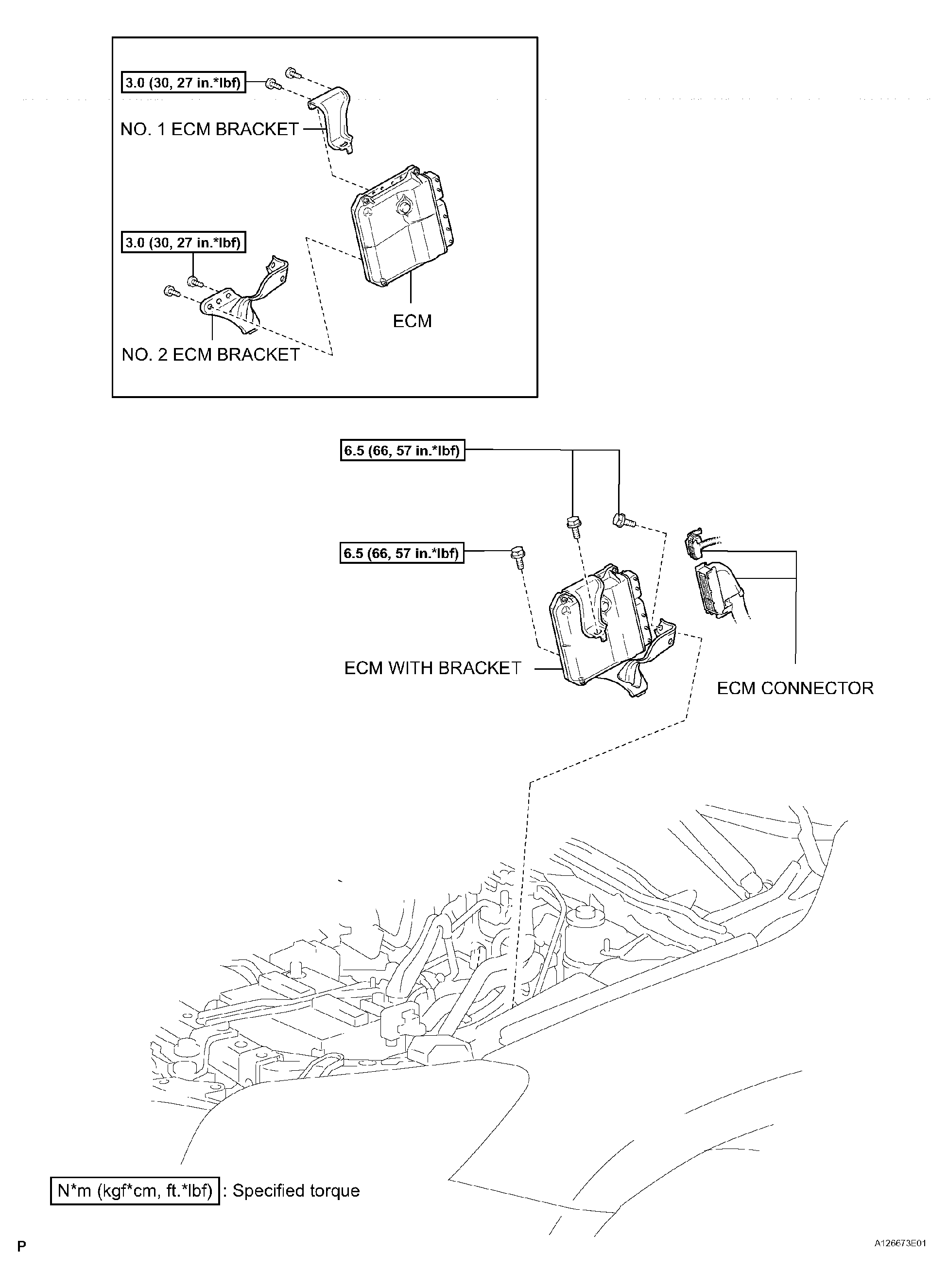

Fig 2: ECM Replacement Components With Torque Specifications (2 Of 2)
