Crankshaft Position Sensor: Removal
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
- REMOVE GENERATOR ASSEMBLY
- Remove the generator assembly from the vehicle (see REMOVAL
).

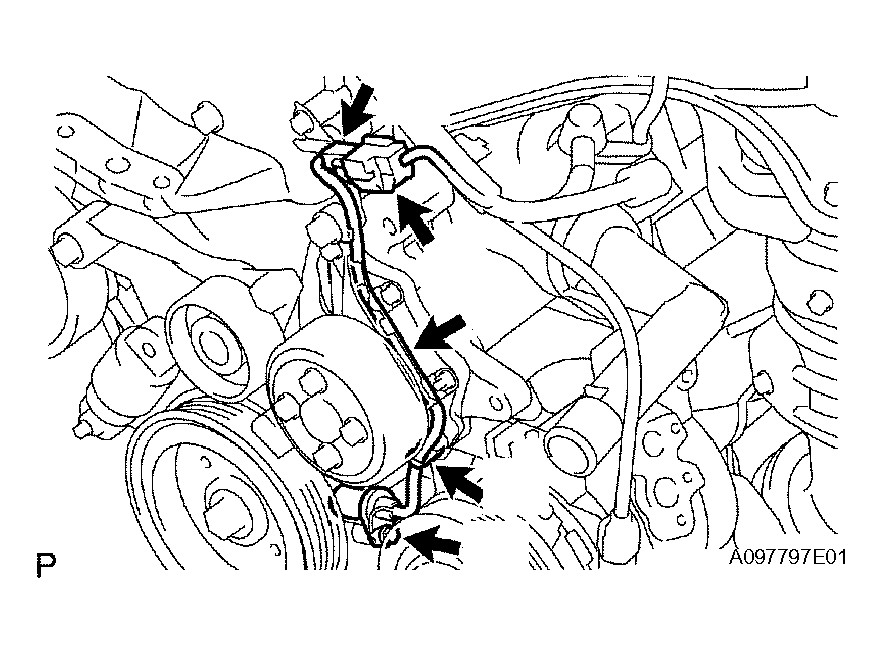

- REMOVE CRANKSHAFT POSITION SENSOR
- Disconnect the sensor connector.
- Remove the connector clamp.
- Remove the wire harness from the wire harness clamp bracket.
- Remove the wire harness clamp.
- Remove the bolt and sensor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
