Back-Up Light: Notes

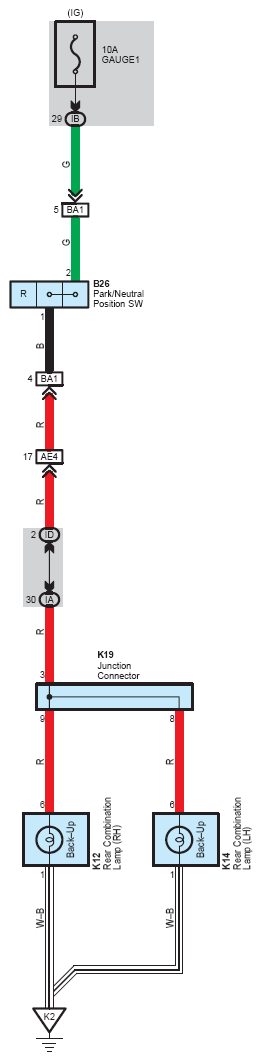

Fig 1: Back-Up Light System Wiring Diagram
G08795435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
