Audio System Except JBL: Notes

Fig 1: Audio System Except JBL System Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

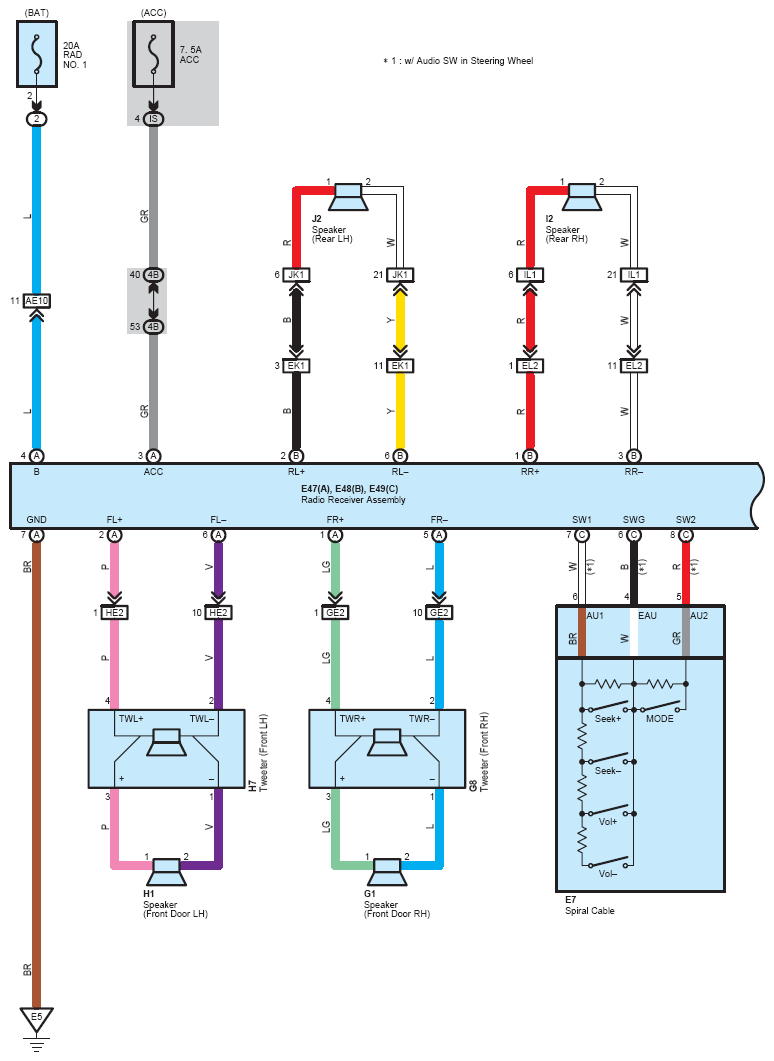

Fig 2: Audio System Except JBL System Wiring Diagram (2 Of 3)

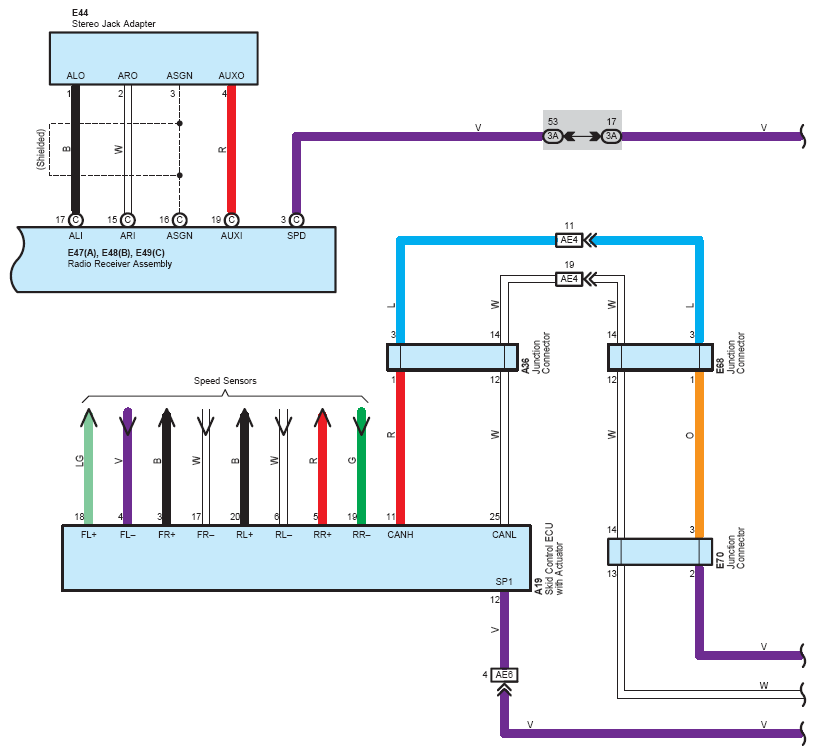

Fig 3: Audio System Except JBL System Wiring Diagram (3 Of 3)
