Inspection Procedure

  1. INSPECT RADIO RECEIVER ASSEMBLY
    1. Disconnect the E62 and E64* receiver connectors.

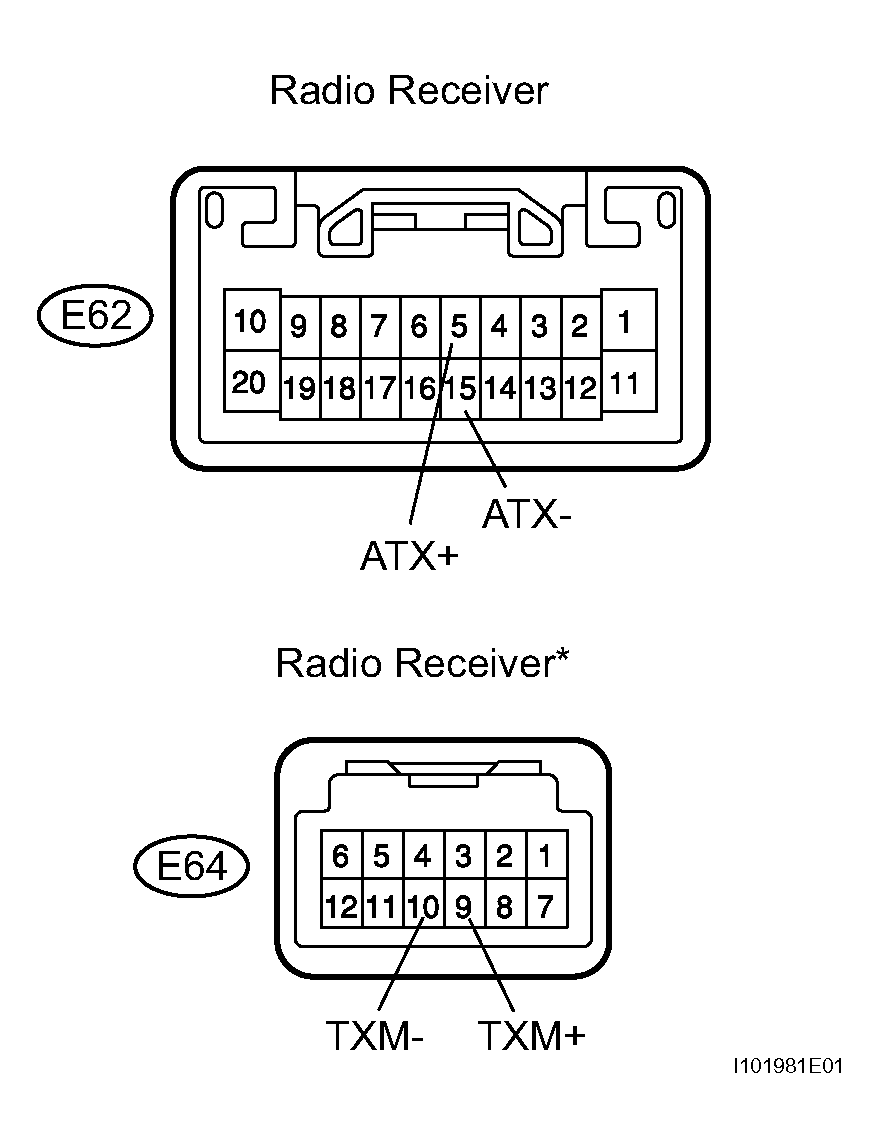

      Fig 1: Disconnecting E62 & E64 Receiver Connectors
      G04491231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance of the receiver.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      E62-5 (ATX+) - E62-15 (ATX-) 60 to 80 Ω
      E64-9 (TXM+) - E64-10 (TXM-)* 60 to 80 Ω

      HINT:

      *: w/Rear seat entertainment system

    NG: REPLACE RADIO RECEIVER ASSEMBLY

    OK: Go TO NEXT STEP.

  2. CHECK WIRE HARNESS (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)
    1. Disconnect the E62 receiver connector.
    2. Disconnect the L13 amplifier connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      E62-5 (ATX+) - L13-8 (TX+) Below 1 Ω
      E62-15 (ATX-) - L13-7 (TX-) Below 1 Ω
      E62-5 (ATX+) - Body ground 10 kΩ or higher
      E62-15 (ATX-) - Body ground 10 kΩ or higher

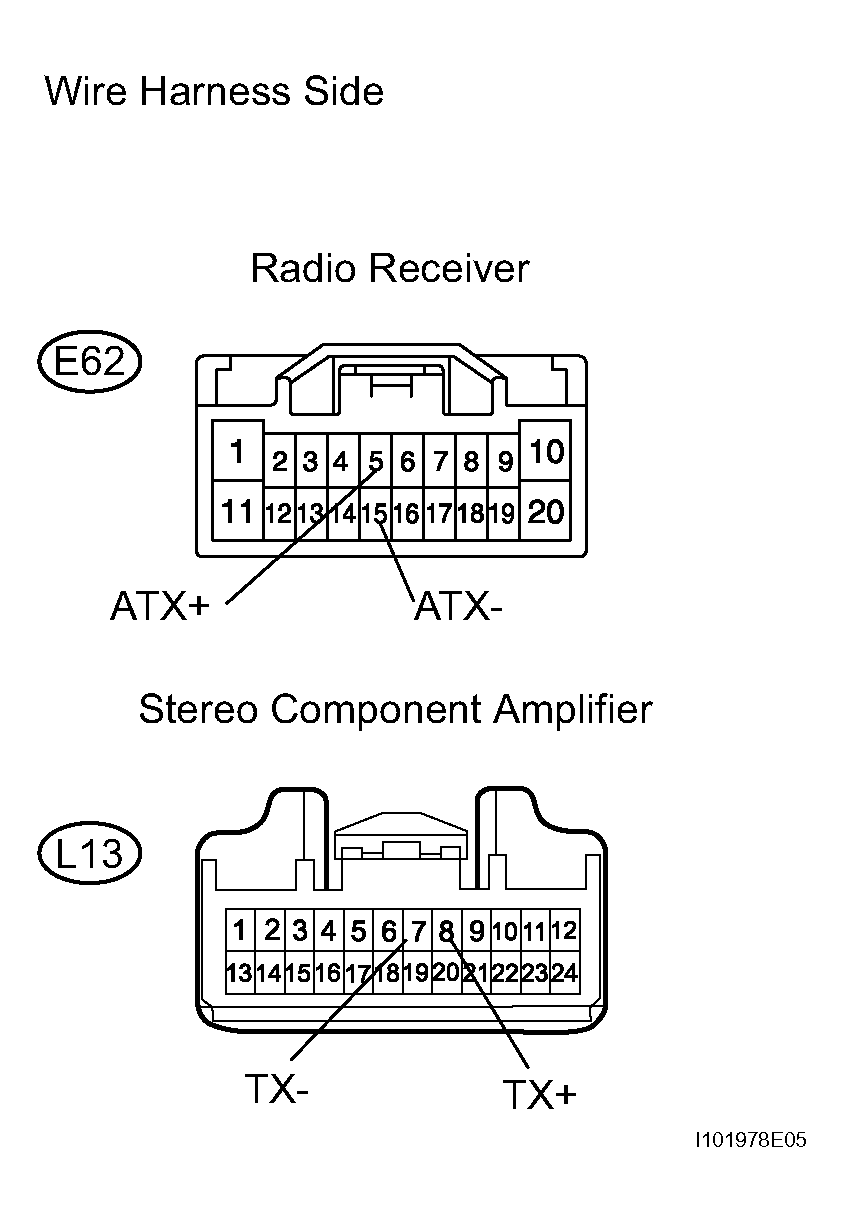

      Fig 2: Identifying E62 & L13 Connectors Terminals
      G04491232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: Go TO NEXT STEP.

  3. CHECK AUDIO SYSTEM
    1. Check the audio system.

      Result

      RESULT

      Result Proceed to
      w/Rear seat entertainment system A
      w/o Rear seat entertainment system B

    B: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE

    A: Go TO NEXT STEP.

  4. CHECK WIRE HARNESS (RADIO RECEIVER - TELEVISION DISPLAY)
    1. Disconnect the E64 receiver connector.
    2. Disconnect the L16 display connector.
    3. Measure the voltage and resistance of the wire harness side connectors.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      E64-9 (TXM+) - L16-14 (TX+) 2 to 3 V
      E64-10 (TXM-) - L16-13 (TX-) 2 to 3 V

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      E64-9 (TXM+) - Body ground 10 kΩ or higher
      E64-10 (TXM-) - Body ground 10 kΩ or higher

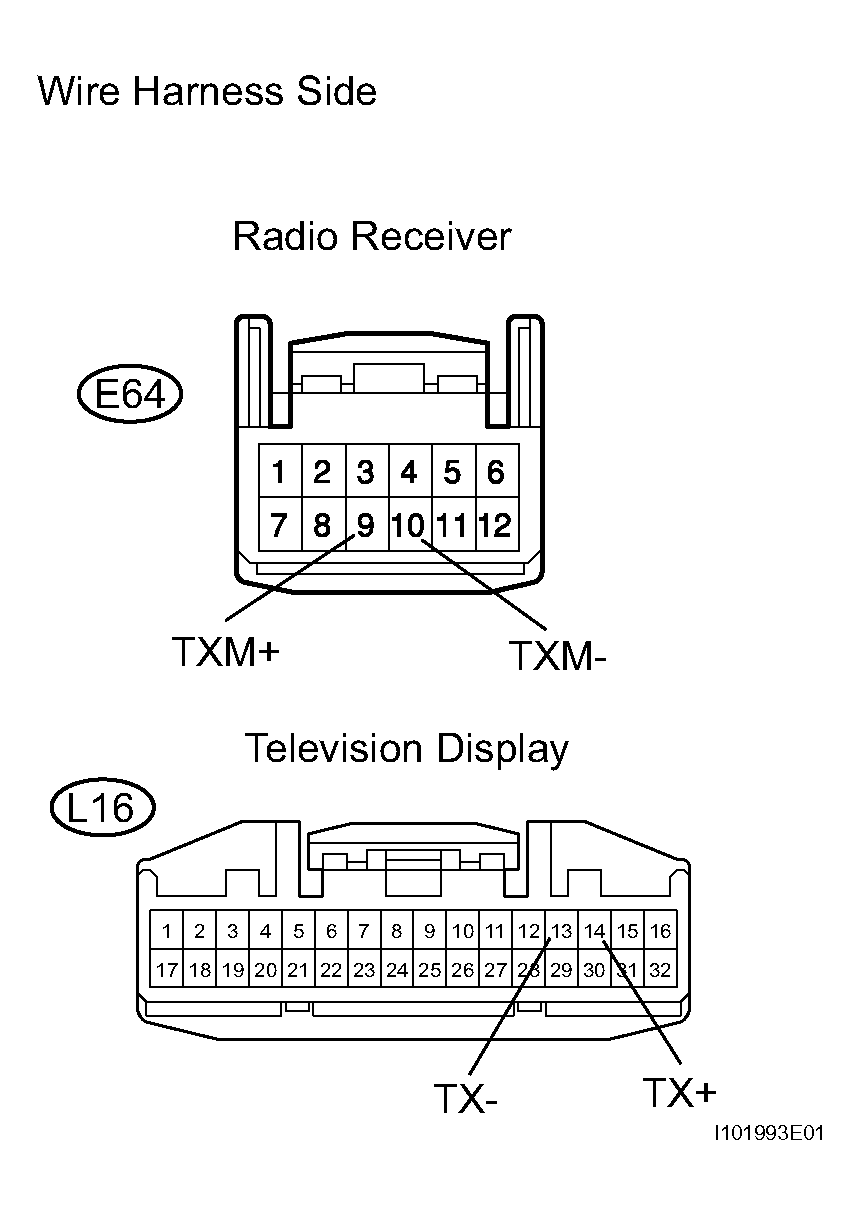

      Fig 3: Disconnecting L16 Display Connector
      G04491233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
