Section 12 (Manual Transmission - C59)
>>
Manual Transaxle Assembly
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Manual Transaxle Assembly: Components
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

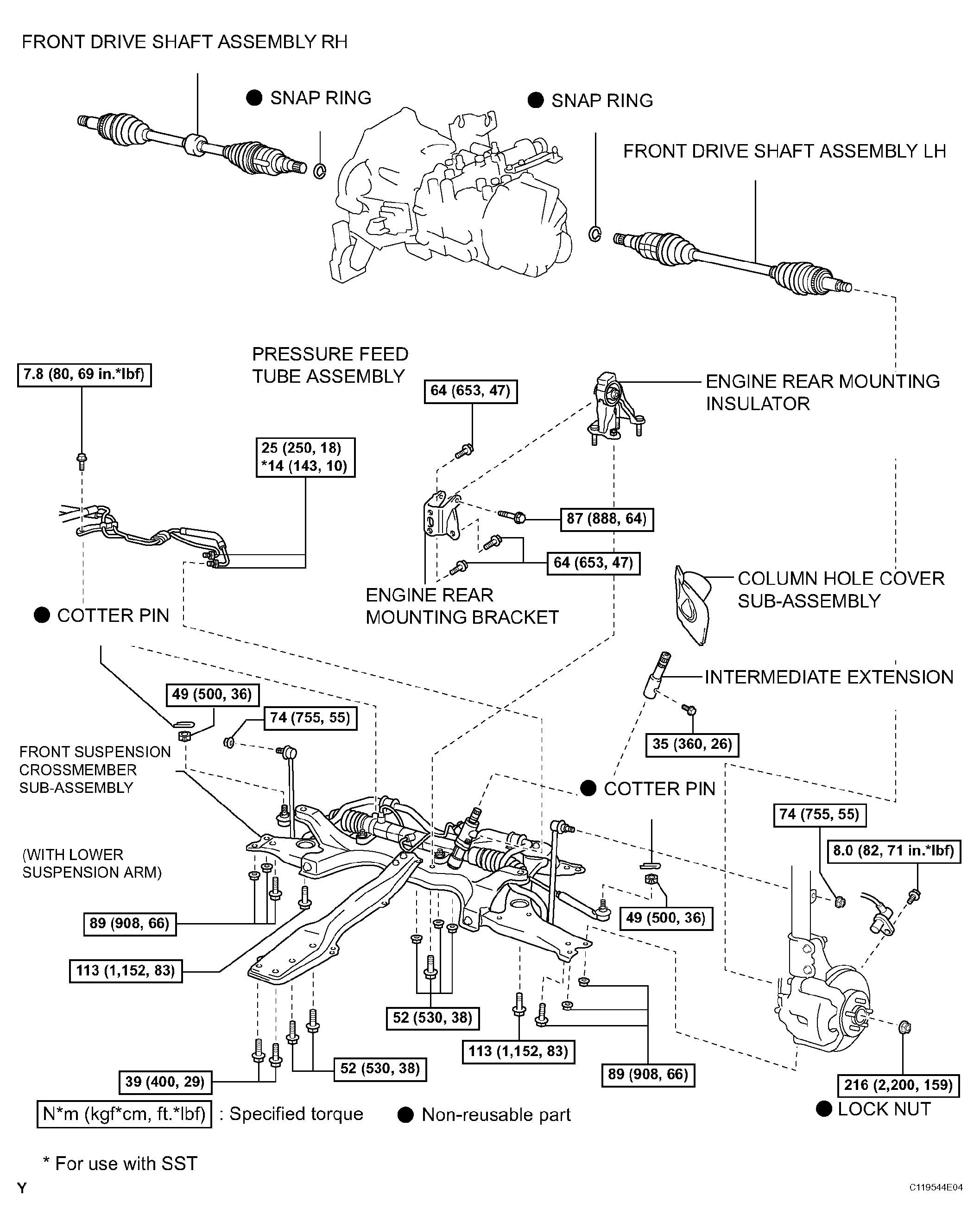

Fig 2: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

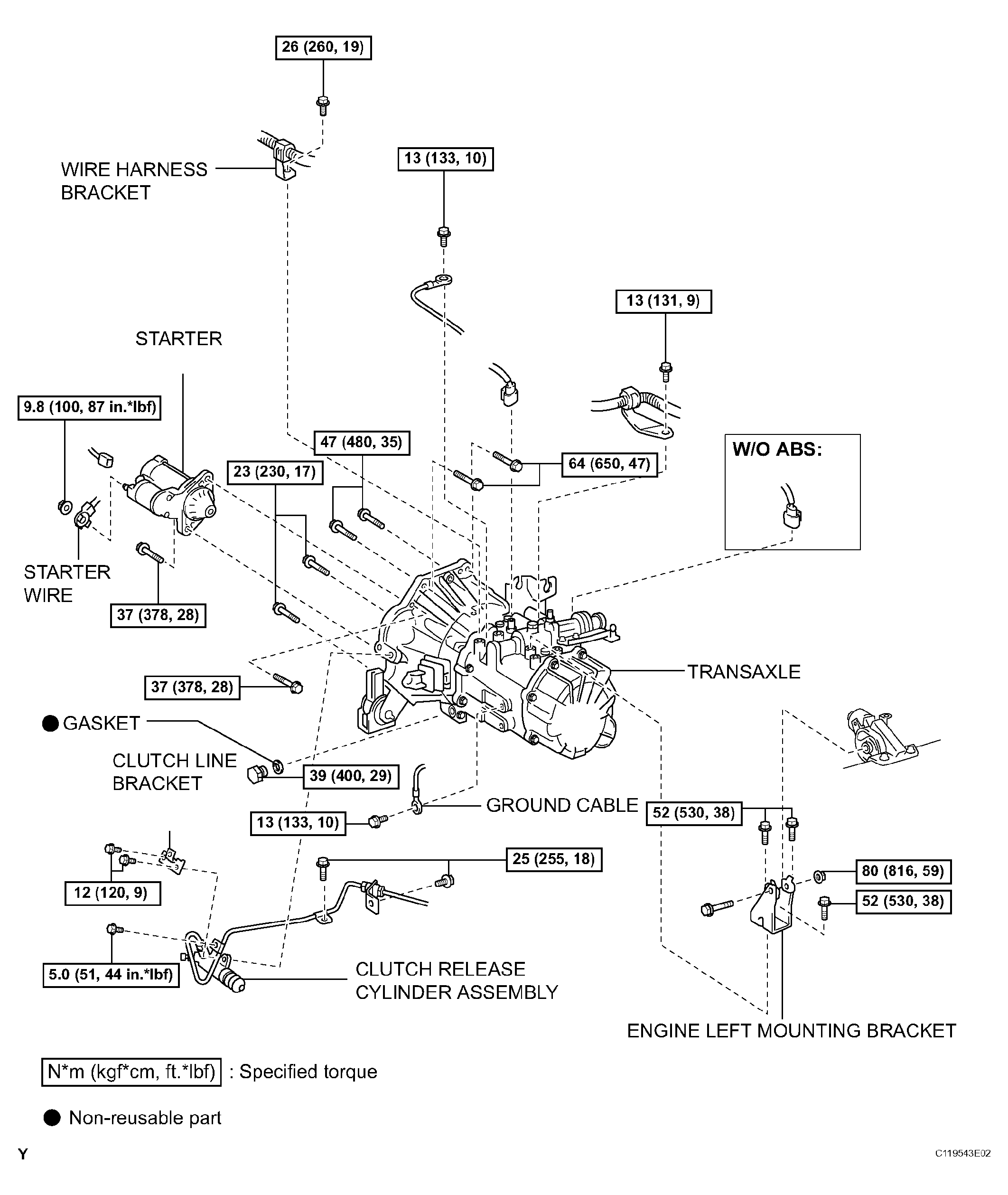

Fig 3: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
