OBD II Monitor Specifications: Wiring Diagram

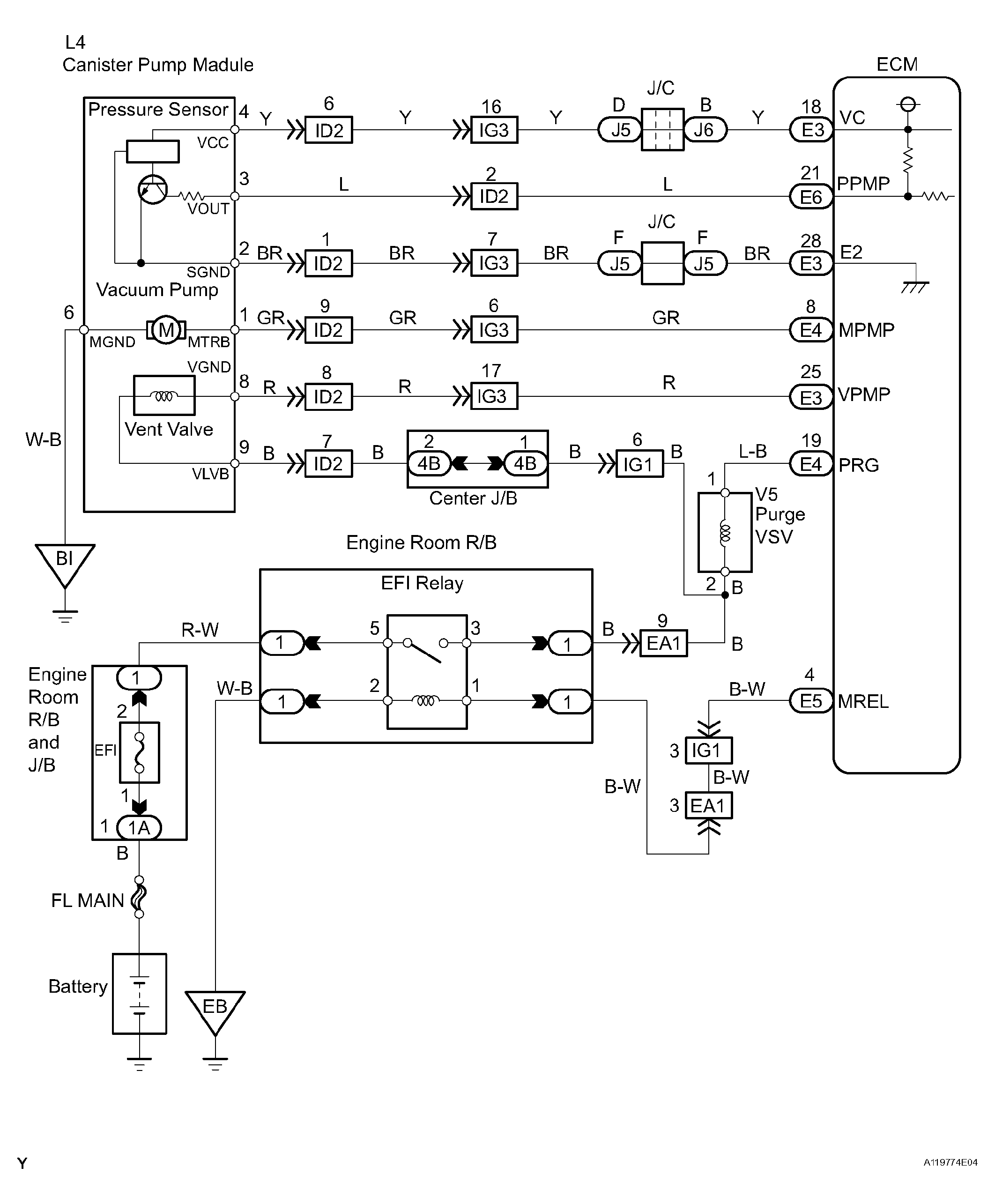

Fig 1: Pressure Sensor - Wiring Diagram
G04460757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
