Floor Shift Lever Assembly: Components

WARNING: This page is about a different variant/trim than selected.

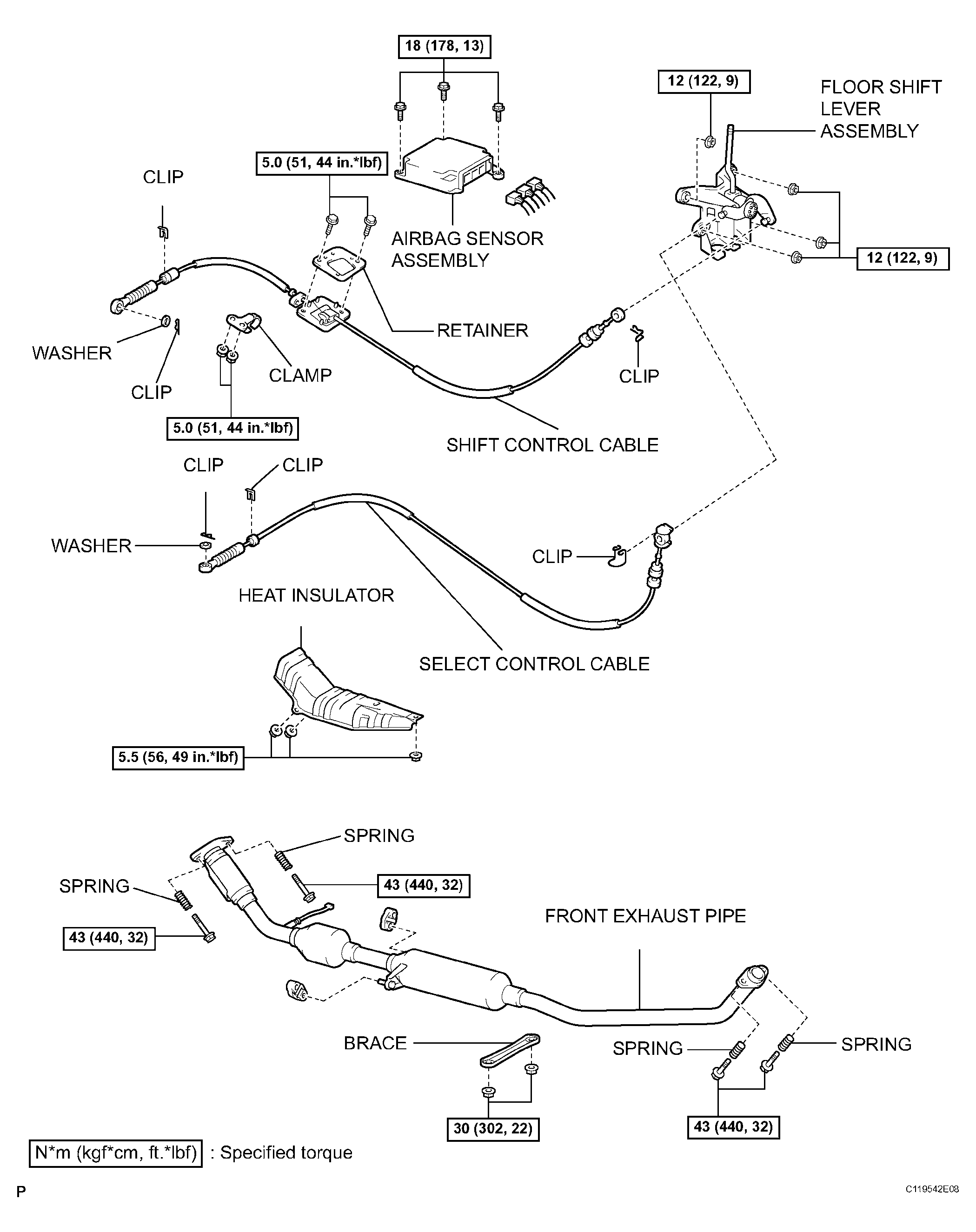

Fig 1: Floor Shift Lever Assembly Replacement Components With Torque Specifications
G04464221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Floor Shift Lever Assembly Components
G04464222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
