COMPRESSOR AND MAGNETIC CLUTCH (for 2ZZ-GE): Components

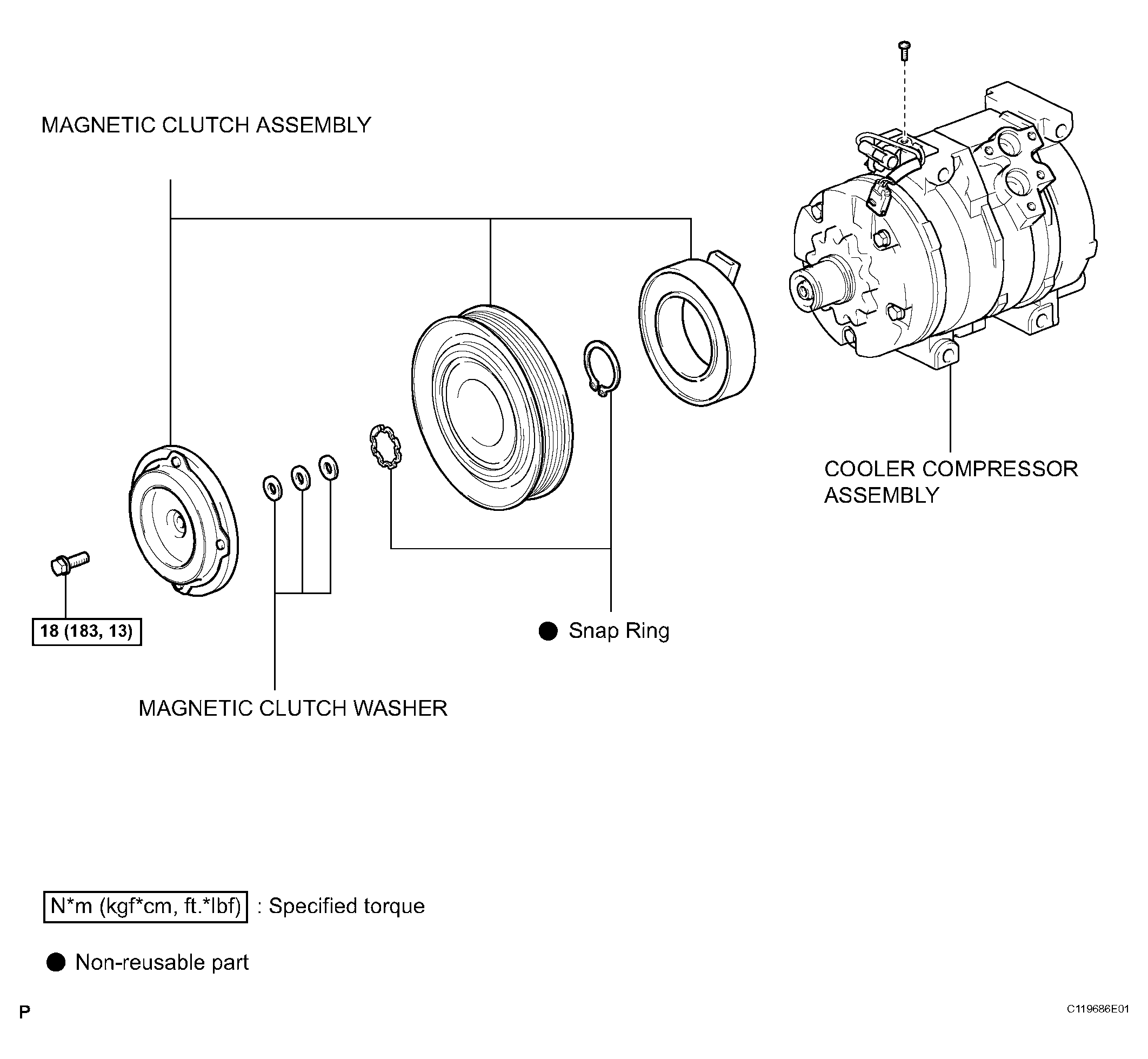

Fig 1: Compressor And Magnetic Clutch Components With Torque Specifications (For 2ZZ-GE)
G04465798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
