Side Moulding: Installation

  1. INSTALL SIDE MUDGUARD SUB-ASSEMBLY
    1. Install the mudguard with 9 new clips.
    2. Install the 8 retainers to the mudguard.

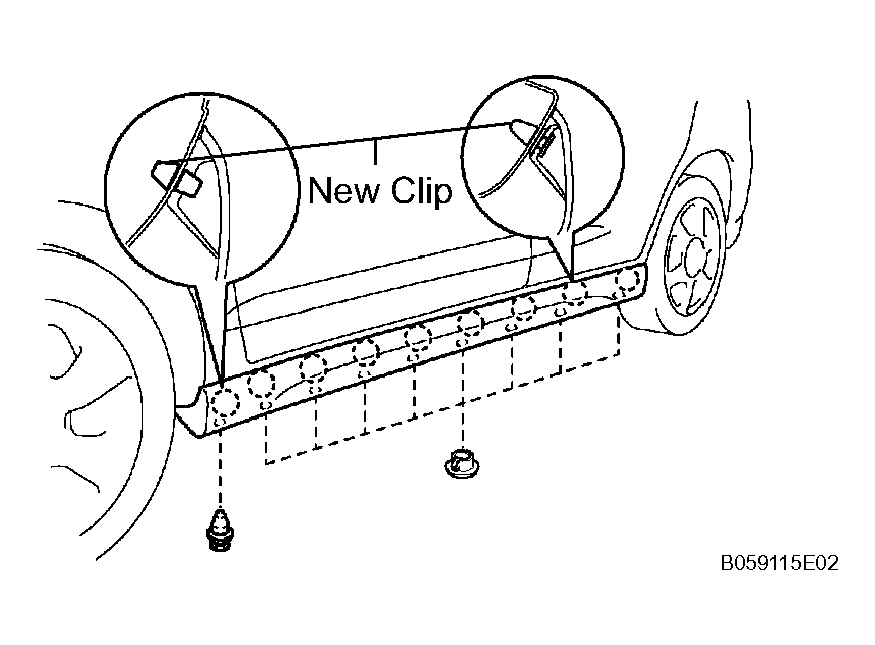

      3. Fig 1: Installing Side Mudguard Sub-Assembly
      G04467041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
