Cruise Control Actuator: Removal

  1. REMOVE CRUISE CONTROL ACTUATOR COVER
    1. Disengage the 2 claws, then remove the cruise control actuator cover.

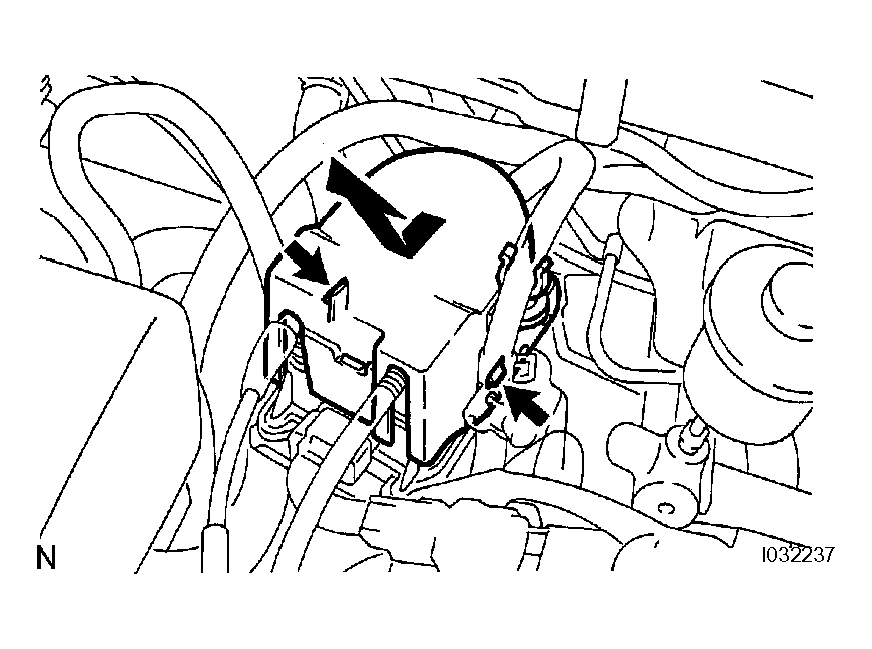

      Fig 1: Removing Cruise Control Actuator Cover
      G04466427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SEPARATE ACCELERATOR CONTROL CABLE ASSEMBLY
    1. Loosen the double nut and separate the accelerator control cable assembly.

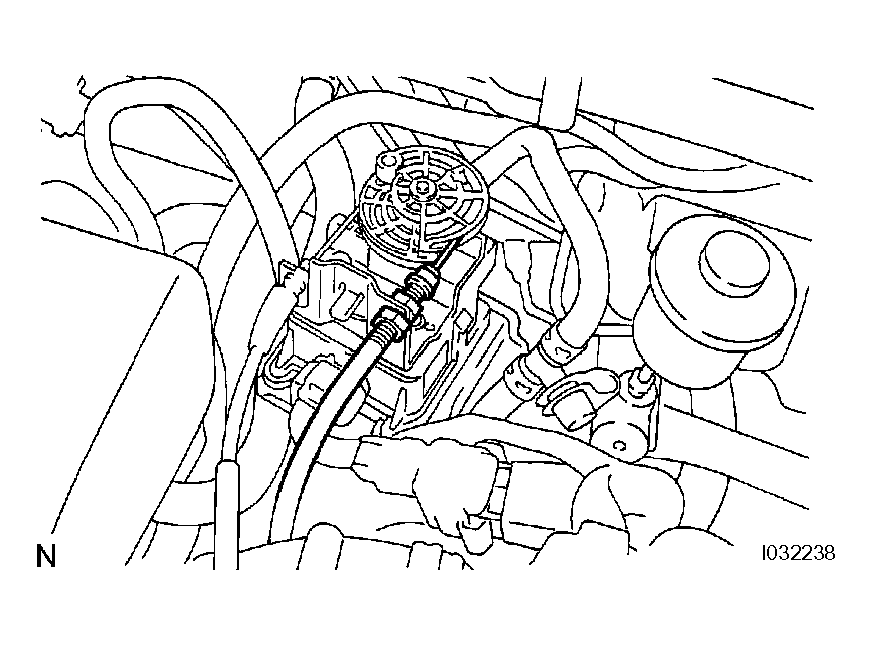

      Fig 2: Separating Accelerator Control Cable Assembly
      G04466428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. SEPARATE ACCELERATOR AUTO DRIVE CABLE ASSEMBLY
    1. Remove the screw and separate the accelerator auto drive cable assembly.

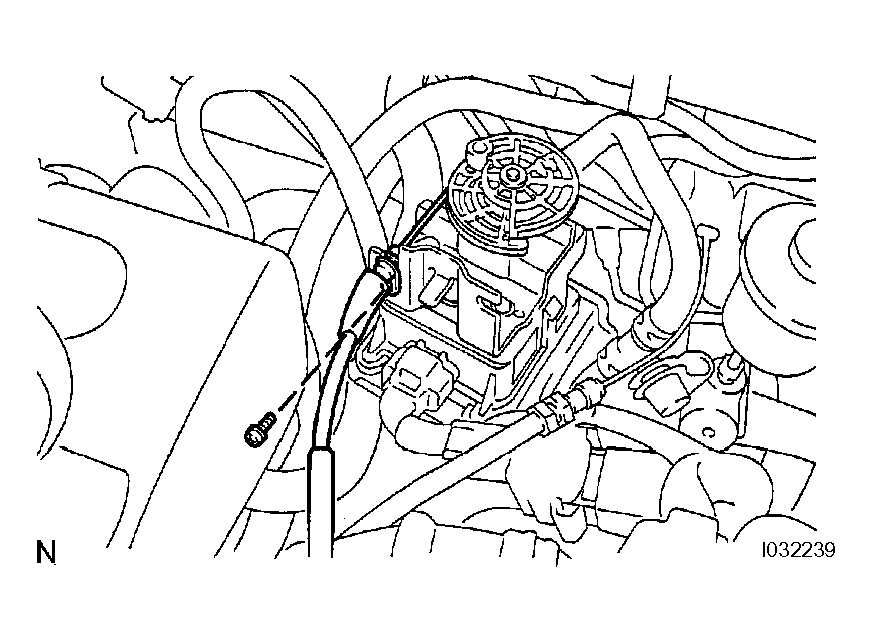

      Fig 3: Separating Accelerator Auto Drive Cable Assembly
      G04466429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CRUISE CONTROL ACTUATOR ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 2 bolts and cruise control actuator assembly.

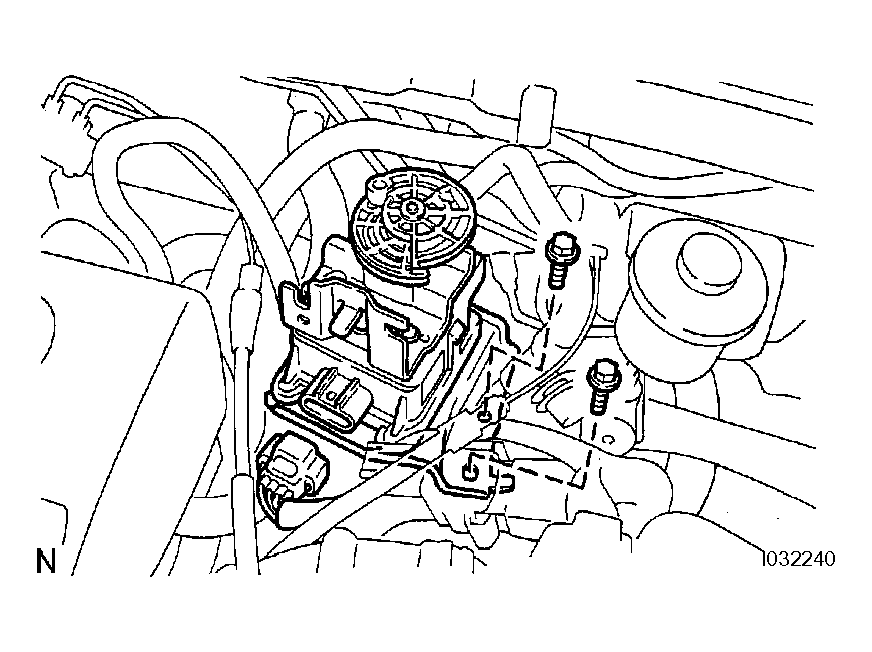

      Fig 4: Removing Cruise Control Actuator Assembly
      G04466430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
