Park / Neutral Position Switch: Components

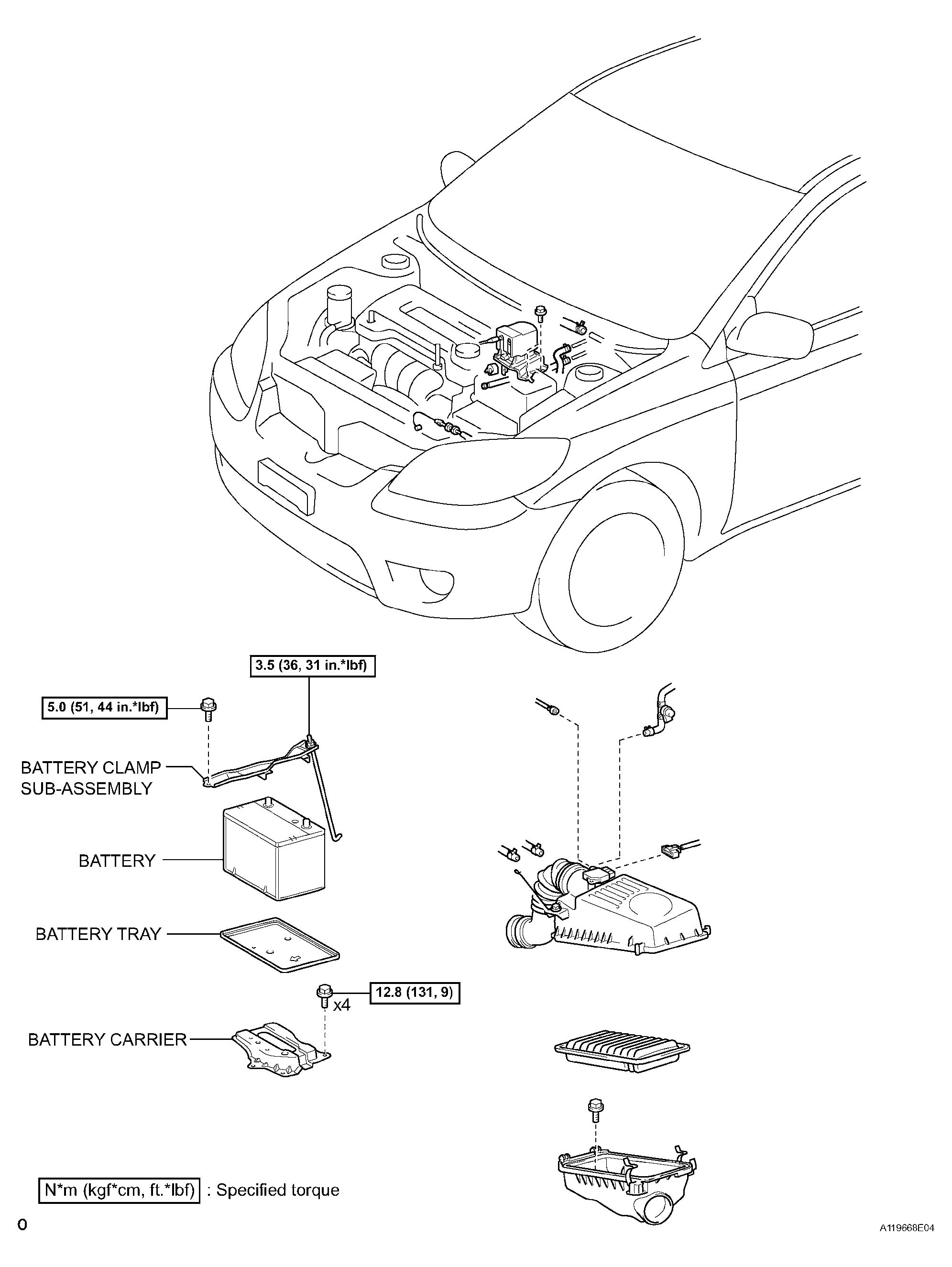

Fig 1: Park / Neutral Position Switch Replacement Components With Torque Specifications (1 Of 2)
G04463296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

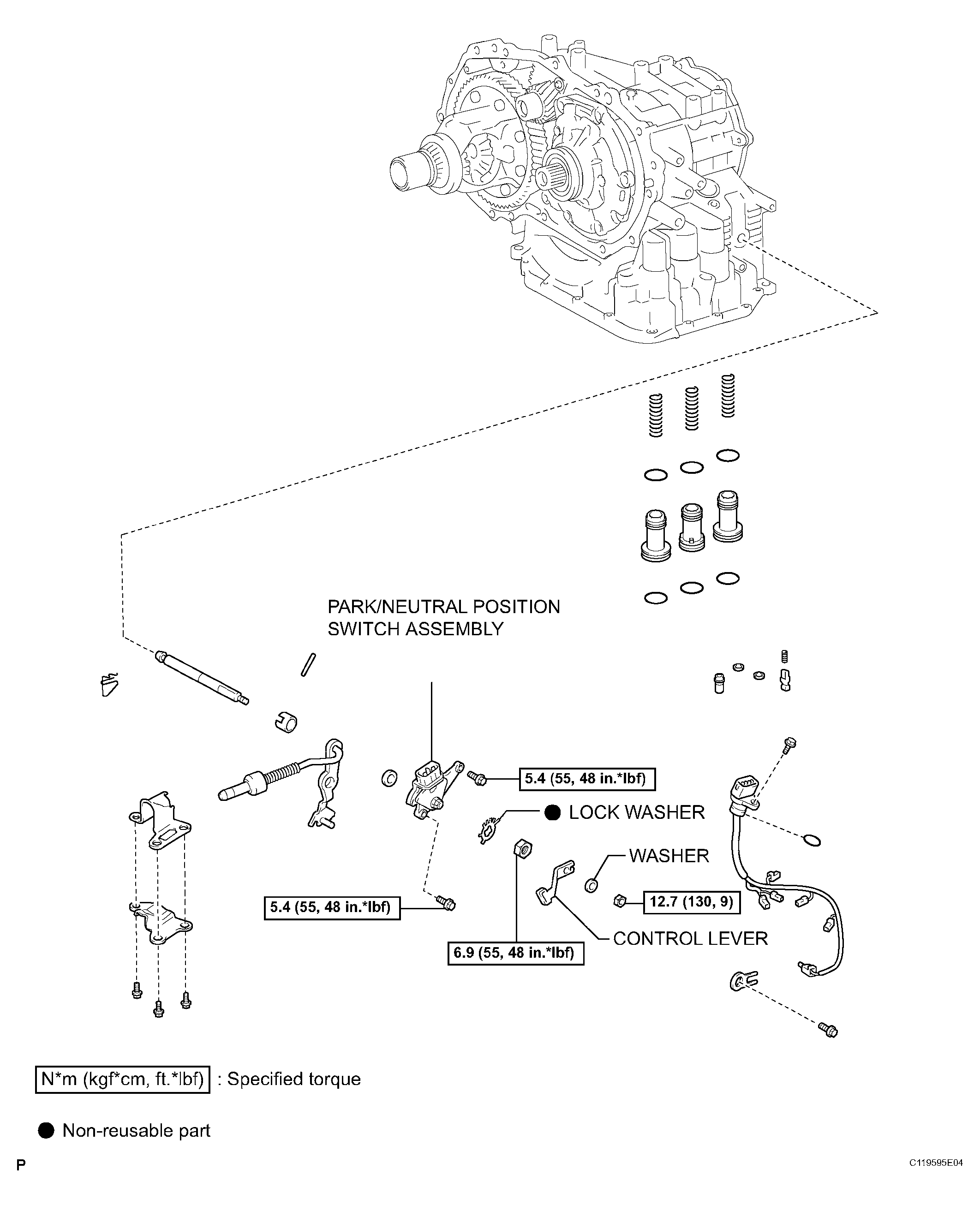

Fig 2: Park / Neutral Position Switch Replacement Components With Torque Specifications (2 Of 2)
G04463297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
