Parts Location

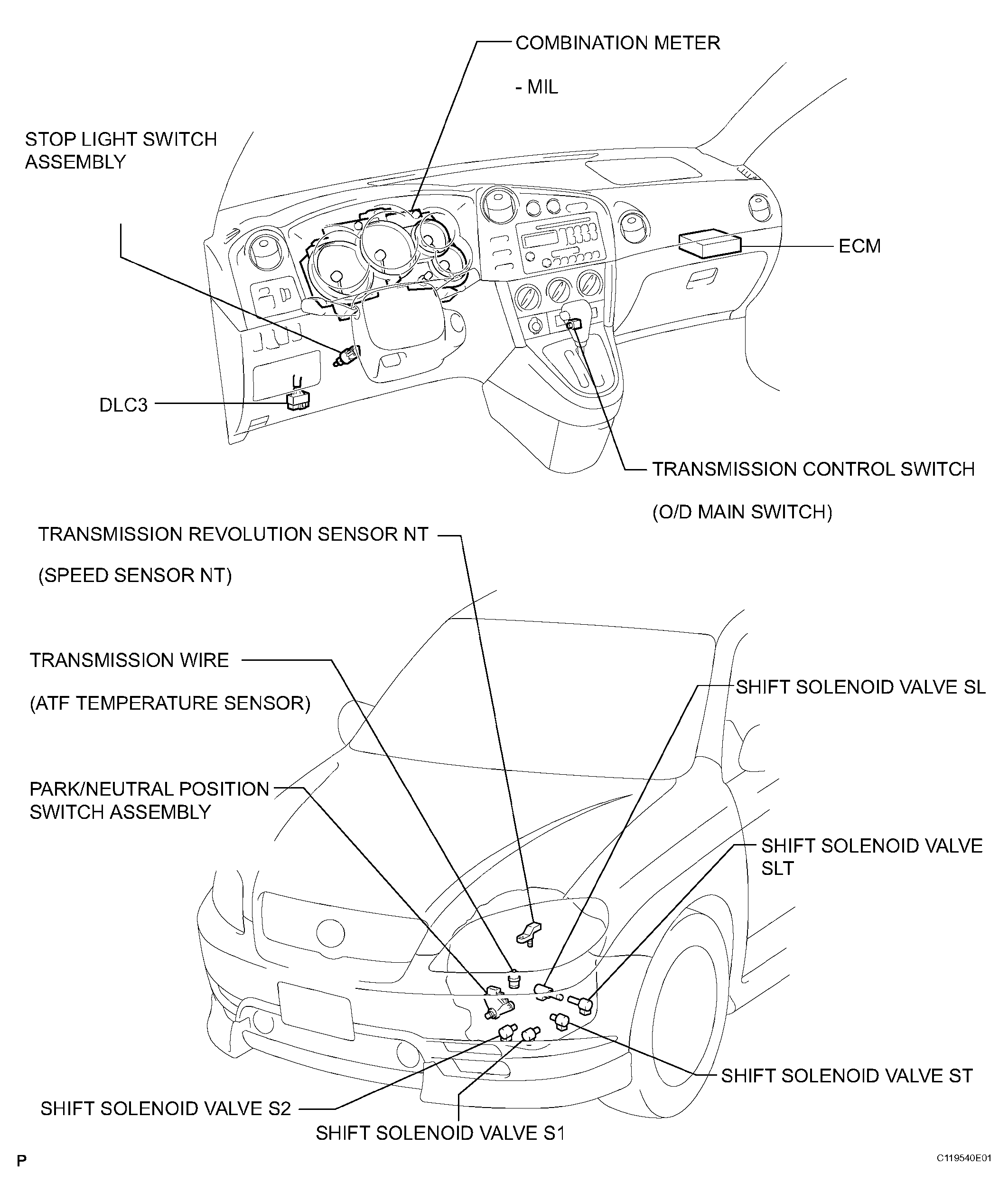

Fig 1: Identifying U341F Automatic Transmission Parts Location
G04463231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
