Vane Pump: Components

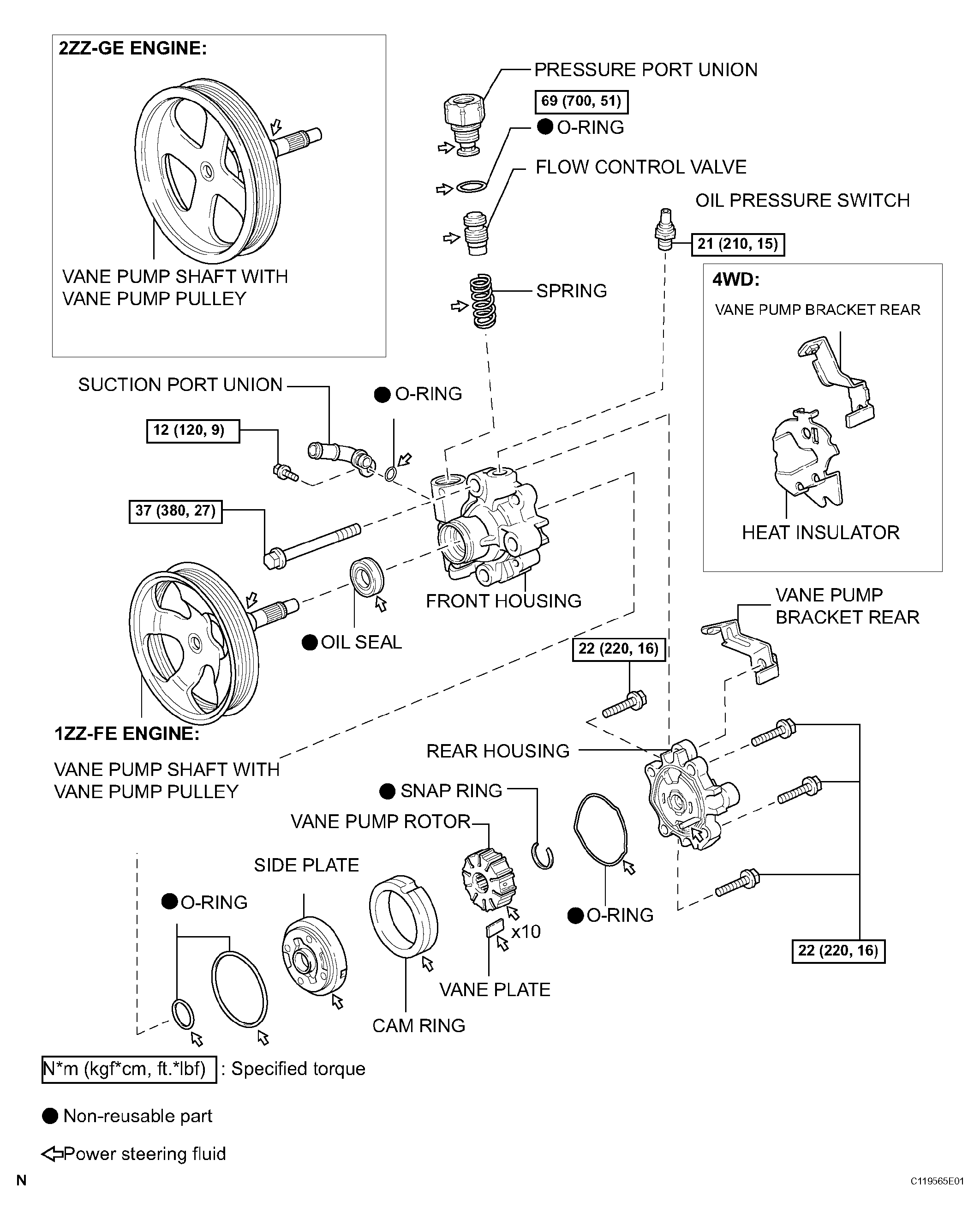

Fig 1: Vane Pump Replacement Components With Torque Specifications
G04465606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
