Front Seat Inner Belt Assembly: Inspection

  1. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH
    1. Measure the resistance of the buckle switch.

      Standard resistance

      TERMINALS RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      5 - 6 Fasten seat belt 1 MΩ or higher
      5 - 6 Release seat belt Below 1 Ω

      If the result is not as specified, replace the inner belt assembly.

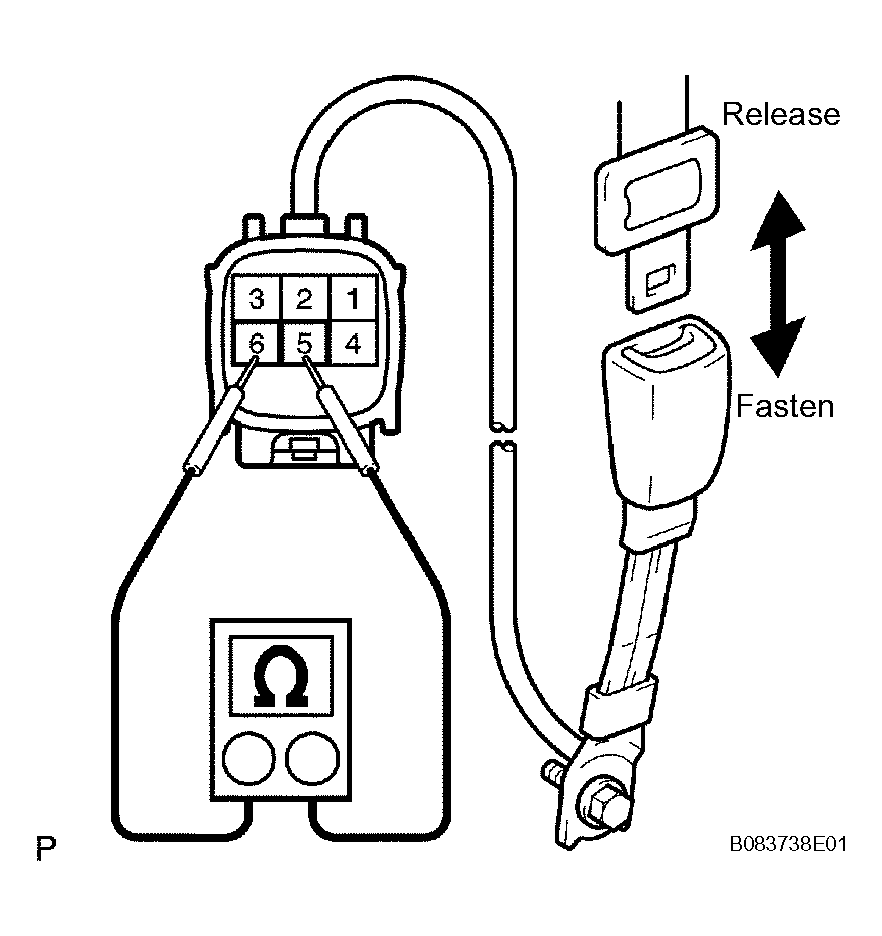

      Fig 1: Measuring Resistance Of Buckle Switch
      G04466187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
